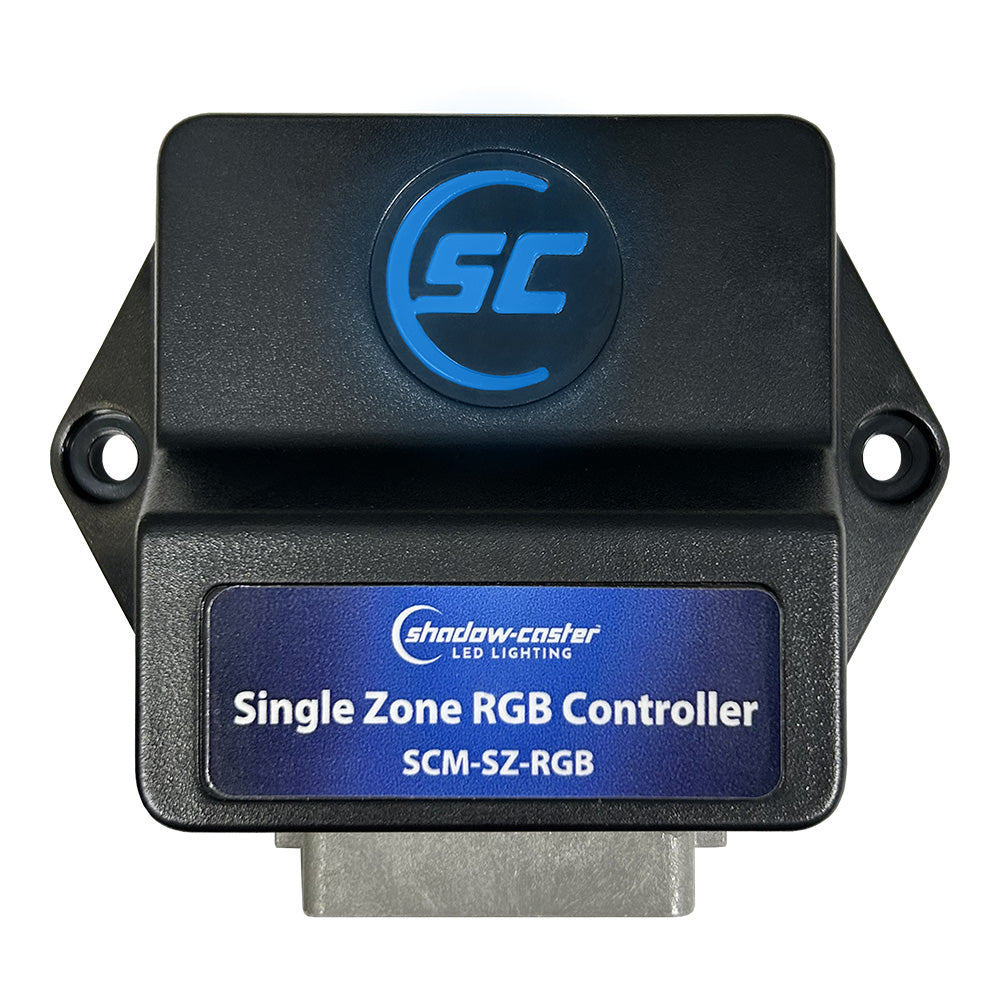

Shadow-Caster Single Zone RGB(W) Controller [SCM-SZ-RGB]

Description

Single Zone RGB(W) Controller

The Shadow-Caster® Single Zone Lighting Control is a low-cost, marine-grade RGBW LED controller that can be operated from a standard push-button switch to set color and brightness.

The Single Zone Controller also has a built-in Shadow-NET® interface that allows the controller to synchronize color and brightness control with other Shadow-NET® devices, for example, to make Shadow-Caster® underwater lights match the color of interior RGBW lighting.

Features:

  • Shadow-NET® enabled for expansion and use with other Shadow-Caster® products
  • The Backlit SC logo indicates brightness and color, or it flashes red if a fault is detected
  • Supports color rotation, single-color fade, and multi-color fade
  • Auto-detect for the white channel
  • Integrated overcurrent protection
  • Operate from an off/on/momentary switch or a single momentary push button
  • Use the SCM-RGB-EXP expansion module to provide expanded RGBW capacity for an extra zone, wherever it is needed on a boat

Specifications:

  • Current Draw: 10A max
  • Hosing & Connector IP Rating: IP67
  • Voltage: 12V/24V operation compatible
  • Dimensions: 3.5” x 2.9” x 1.2” (88 x 72.4 x 30.6mm)

Specifications:

  • Type: Covers
  • Box Dimensions: 2"H x 4"W x 4"L WT: 0.6 lbs
  • UPC: 8500563200234

Quick Guide (pdf)
Owner's Manual (pdf)
Product form

Single Zone RGB(W) Controller The Shadow-Caster® Single Zone Lighting Control is a low-cost, marine-grade RGBW LED controller that can be operated... Read more

SKU: CWR-104298
Barcode: 8500563200234

$189.00$169.00

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Single Zone RGB(W) Controller

      The Shadow-Caster® Single Zone Lighting Control is a low-cost, marine-grade RGBW LED controller that can be operated from a standard push-button switch to set color and brightness.

      The Single Zone Controller also has a built-in Shadow-NET® interface that allows the controller to synchronize color and brightness control with other Shadow-NET® devices, for example, to make Shadow-Caster® underwater lights match the color of interior RGBW lighting.

      Features:

      • Shadow-NET® enabled for expansion and use with other Shadow-Caster® products
      • The Backlit SC logo indicates brightness and color, or it flashes red if a fault is detected
      • Supports color rotation, single-color fade, and multi-color fade
      • Auto-detect for the white channel
      • Integrated overcurrent protection
      • Operate from an off/on/momentary switch or a single momentary push button
      • Use the SCM-RGB-EXP expansion module to provide expanded RGBW capacity for an extra zone, wherever it is needed on a boat

      Specifications:

      • Current Draw: 10A max
      • Hosing & Connector IP Rating: IP67
      • Voltage: 12V/24V operation compatible
      • Dimensions: 3.5” x 2.9” x 1.2” (88 x 72.4 x 30.6mm)

      Specifications:

      • Type: Covers
      • Box Dimensions: 2"H x 4"W x 4"L WT: 0.6 lbs
      • UPC: 8500563200234

      Quick Guide (pdf)
      Owner's Manual (pdf)
