SI-TEX SP38-18 Autopilot Core Pack Including Compact GPS Compass RotaryFeedback, No Pump [SP38-18]

Description

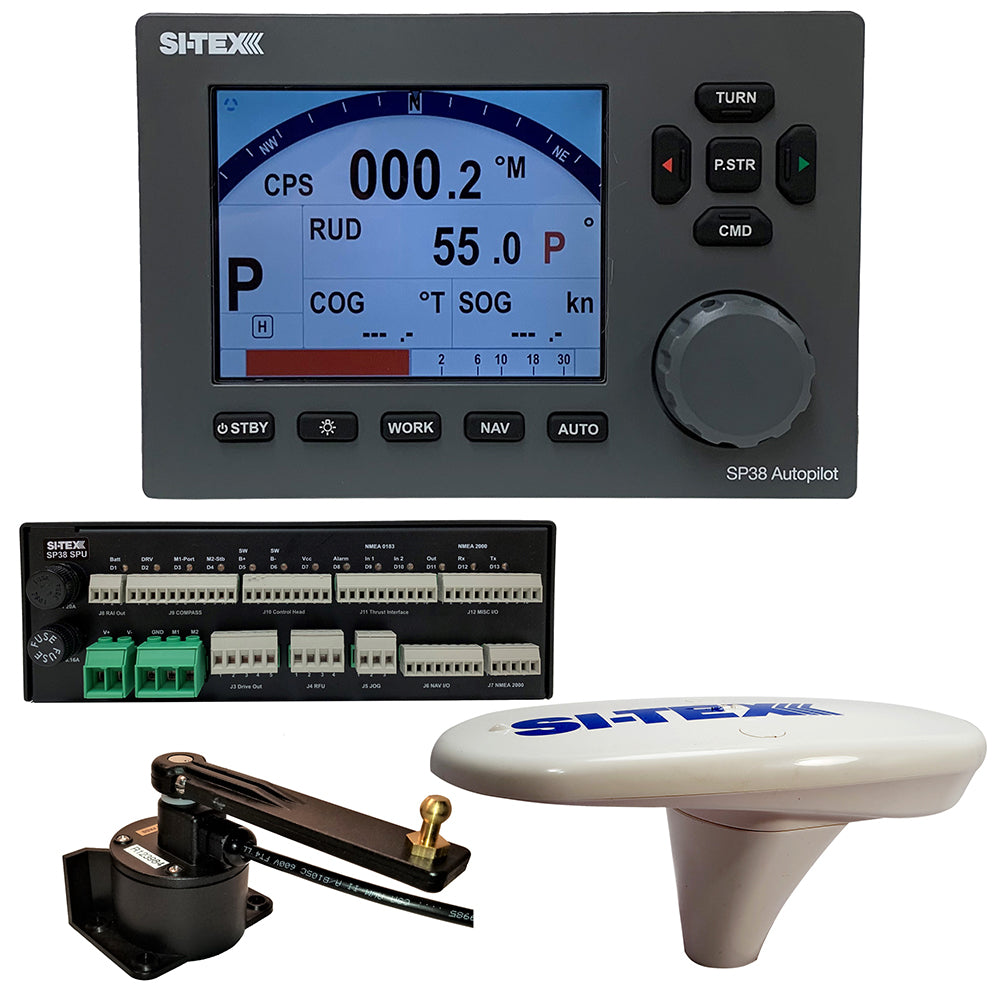

SP38-18 Autopilot Core Pack Including Compact GPS Compass & Rotary Feedback, No Pump

Features:

  • IST – Intelligent Steering Technology provides superior vessel steering capability
  • ADAPTIVE steering for sea conditions and varying vessel speeds
  • AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
  • NMEA 2000, ETHERNET, and NMEA 0183 interface
  • Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
  • WORK Mode suitable for Fishing Boats, Towboats and Workboats
  • PRC- Proportional Rate Control feature provides gentle smooth steering response
  • Multi-Station capability with security station lock
  • SUNLIGHT viewable Color 5.7” LCD display
  • NAV Mode provide adaptive precise track steering
  • ALC – Automatic Leeway Compensation for Drift, Tide & Wind
  • Fully compatible with onboard instruments and steering systems
  • Optional Z-Drive interface allows 360 Azimuth drive interface
  • Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
  • Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
  • Standard with Flush Mount kit, Optional Swivel mount bracket
  • IP67 Waterproof – Control Head, TS4, NF4 and WS4
  • RoHS & CE compliance for EMI and RFI immunity

Additional Features:

  • 9 level backlit LCD display
  • LCD Display switches to Red Night Palette to protect Operators night vision
  • Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
  • Multiple steering parameters for Fast cruise, Slow cruise and Work modes
  • Simple to use course knob with mechanical detent
  • Multi-station capability with security station lock
  • Automatic trim
  • Adjustable yaw, turn rate and rudder settings
  • PORT and STBD dodge buttons for collision avoidance
  • Output for optional analog rudder angle indicator, up to 4 stations
  • Fully compatible with onboard NMEA N2K instruments and most steering systems

Specifications:

  • Operating Voltage: 10 to 30 VDC
  • Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
  • Network: NMEA 2000 & Ethernet
  • Navigational Interface: NMEA 0183 input/Output
  • NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
  • Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass
  • Course Resolution: 1°
  • Course Detection: 0.5°

Specifications:

  • Type: Parts
  • Box Dimensions: 17"H x 20"W x 20"L WT: 23.1 lbs
  • UPC: 010407750071

Quick Guide (pdf)
Product form

SP38-18 Autopilot Core Pack Including Compact GPS Compass & Rotary Feedback, No PumpFeatures: IST – Intelligent Steering Technology provides superior... Read more

SKU: CWR-78776
Barcode: 010407750071

Out of stock

$6,999.00$5,487.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

    Description

    SP38-18 Autopilot Core Pack Including Compact GPS Compass & Rotary Feedback, No Pump

    Features:

    • IST – Intelligent Steering Technology provides superior vessel steering capability
    • ADAPTIVE steering for sea conditions and varying vessel speeds
    • AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
    • NMEA 2000, ETHERNET, and NMEA 0183 interface
    • Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
    • WORK Mode suitable for Fishing Boats, Towboats and Workboats
    • PRC- Proportional Rate Control feature provides gentle smooth steering response
    • Multi-Station capability with security station lock
    • SUNLIGHT viewable Color 5.7” LCD display
    • NAV Mode provide adaptive precise track steering
    • ALC – Automatic Leeway Compensation for Drift, Tide & Wind
    • Fully compatible with onboard instruments and steering systems
    • Optional Z-Drive interface allows 360 Azimuth drive interface
    • Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
    • Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
    • Standard with Flush Mount kit, Optional Swivel mount bracket
    • IP67 Waterproof – Control Head, TS4, NF4 and WS4
    • RoHS & CE compliance for EMI and RFI immunity

    Additional Features:

    • 9 level backlit LCD display
    • LCD Display switches to Red Night Palette to protect Operators night vision
    • Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
    • Multiple steering parameters for Fast cruise, Slow cruise and Work modes
    • Simple to use course knob with mechanical detent
    • Multi-station capability with security station lock
    • Automatic trim
    • Adjustable yaw, turn rate and rudder settings
    • PORT and STBD dodge buttons for collision avoidance
    • Output for optional analog rudder angle indicator, up to 4 stations
    • Fully compatible with onboard NMEA N2K instruments and most steering systems

    Specifications:

    • Operating Voltage: 10 to 30 VDC
    • Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
    • Network: NMEA 2000 & Ethernet
    • Navigational Interface: NMEA 0183 input/Output
    • NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
    • Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass
    • Course Resolution: 1°
    • Course Detection: 0.5°

    Specifications:

    • Type: Parts
    • Box Dimensions: 17"H x 20"W x 20"L WT: 23.1 lbs
    • UPC: 010407750071

    Quick Guide (pdf)
