Description

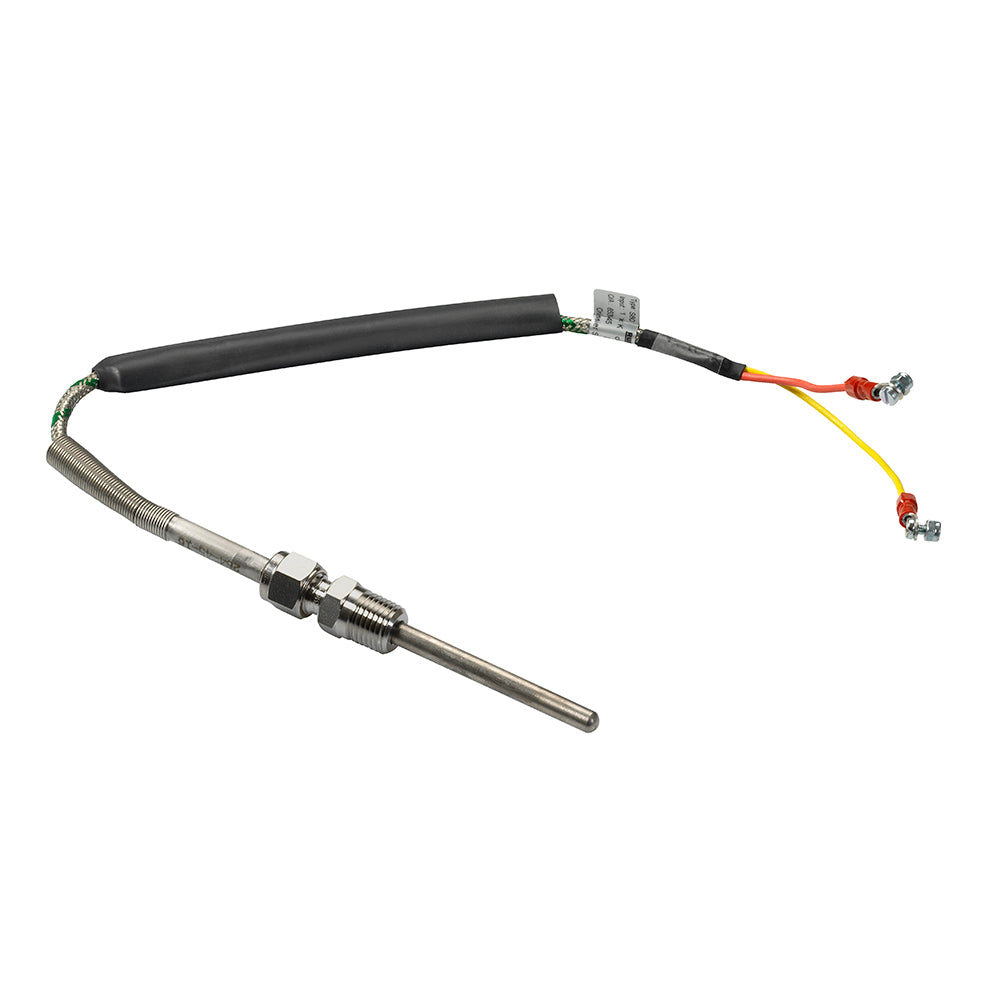

Pyrometer Sensor - 100-900°C/250-1650°F
Pyrometer sensor used in conjunction with LinkUp Gateway Module.
Features:
Plug-and-Play installation and configuration
NMEA 2000® certified
Technical Specifications:
Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
Input Signal - LIN bus
Operating Voltage - 6 - 24 VDC
Pyrometer Sensor
Thermocoupler Element
Measurement Range - 100-900°C/250-1650°F
Communication - Analog
Signal Output - 0 - 37 MV TC
Sensor Connector - Ring Tongue
Thread - R 1/4" Male
Warning Contact - None
Connector Type - Kabeloog

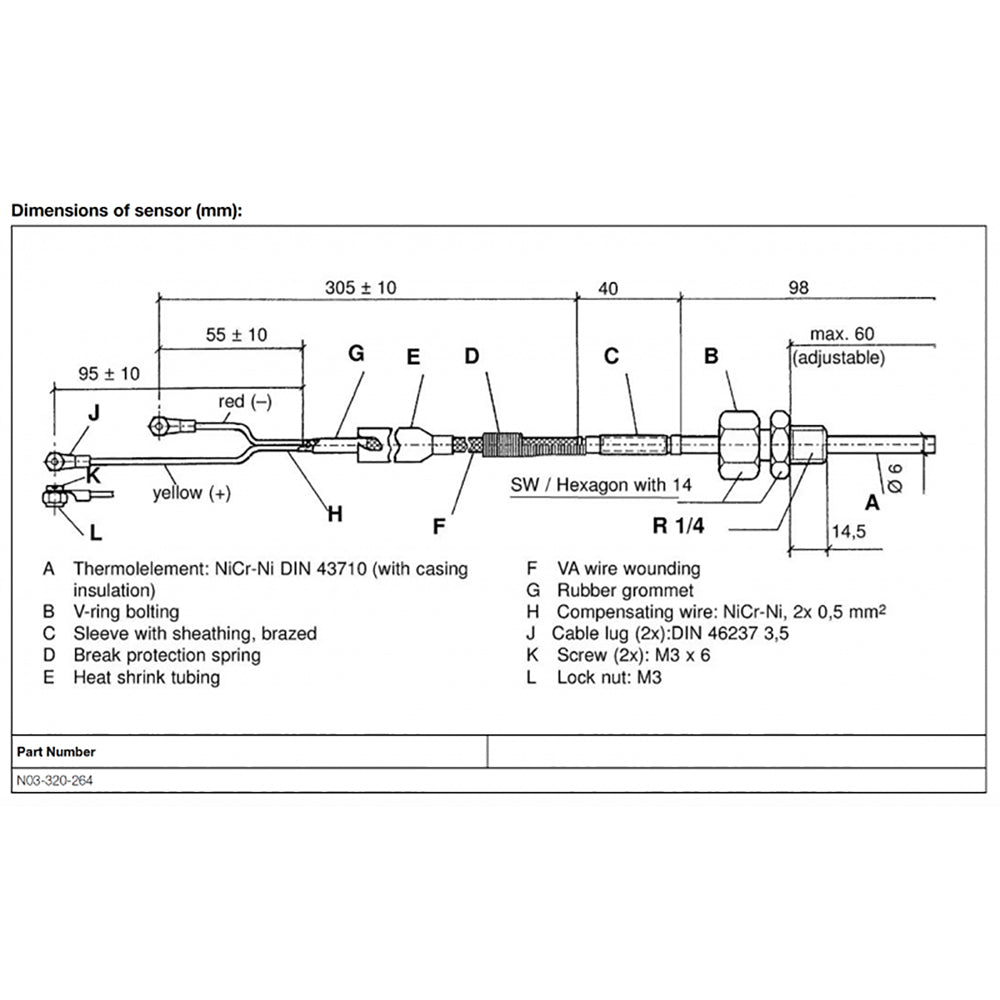

Sender element length + thread (L) - Adjustable maximal 60 mm
Sensor diameter - 6 mm
Torque - 20 Nm
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Diameter (mm): N/A
Diameter (Inches): N/A
Color: Black
Box Dimensions: 1"H x 4"W x 16"L WT: 0.15 lbs
