Description

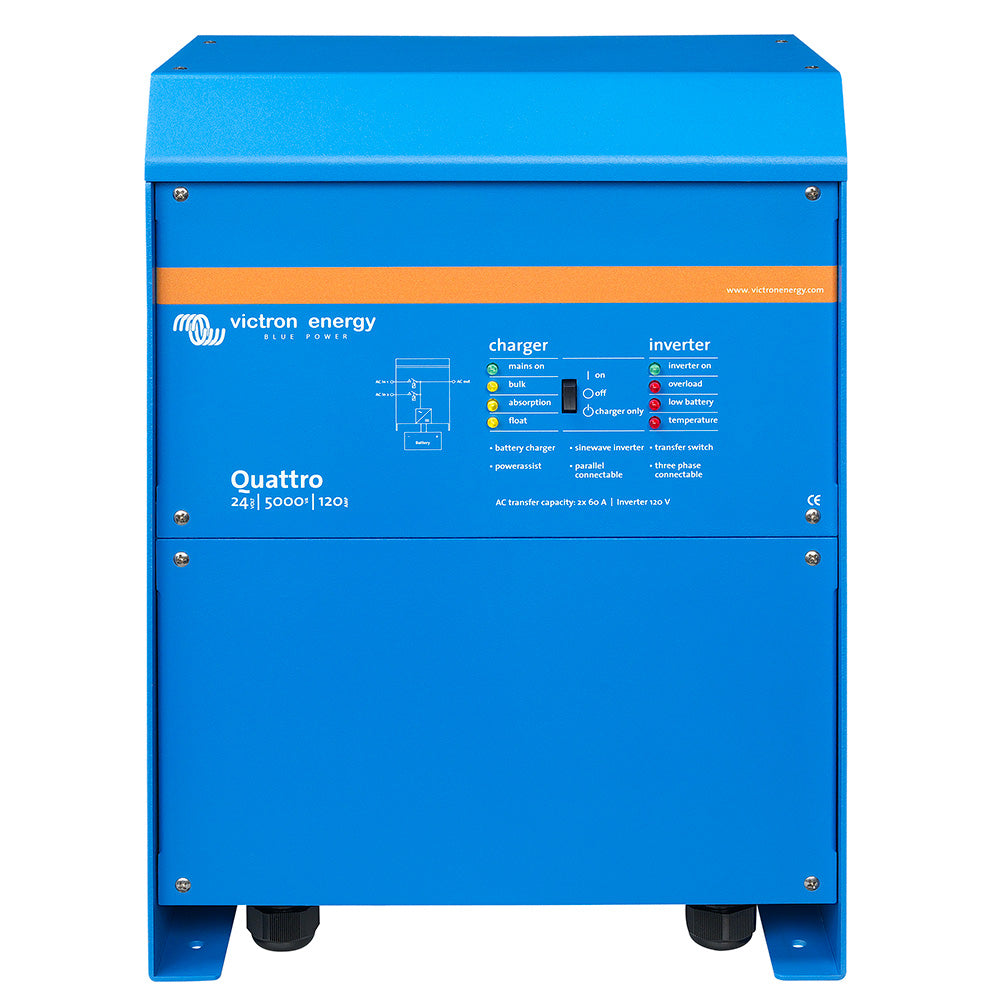

Quattro 24/5000/120 100/100 120V VE.Bus (UL458)
This inverter charger has two AC inputs and two AC outputs. Its integrated transfer switch will automatically connect to the active source. The output has UPS functionality, and the Quattro can take over the power supply to loads so quickly that computers and other equipment are not interrupted.
Features:
- 24V DC input
- Pure Sine Wave 120 volt 60 Hz AC output
- 2 x 100 Amp transfer switch
- 120 Amp charger for main battery
- 4 Amp charger for start battery
- Battery temperature sensor included
- Optional remote panel available - see below
- Multiple units can be configured together to provide 240-volt, three-phase, or other configurations up to a maximum of 50 kVA output
- 17.5" x 13" x 9.6" dimensions
- 66 lbs
- Comes with a 5-year warranty; extended warranty is available
Specifications:
- PowerControl / PowerAssist: Yes
- Integrated Transfer switch: Yes
- AC inputs (2x): Input voltage range: 90-140 VAC; Input frequency: 45 65 Hz
- Power factor: 1
Please contact your dealer for any returns, repairs or support issues related to this product.
