Wichard 10mm Eye Nut - Thread M12 x 175mm [06356]

Description

10mm Eye Nut - Thread M12 x 175mm

Features:

  • A complete range of single-piece forged products for fastenings applications
  • Outstanding breaking loads
  • Available in different sizes

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 11460 / (kg) 5200
  • Weight: (lb) 0.209 / (g) 95

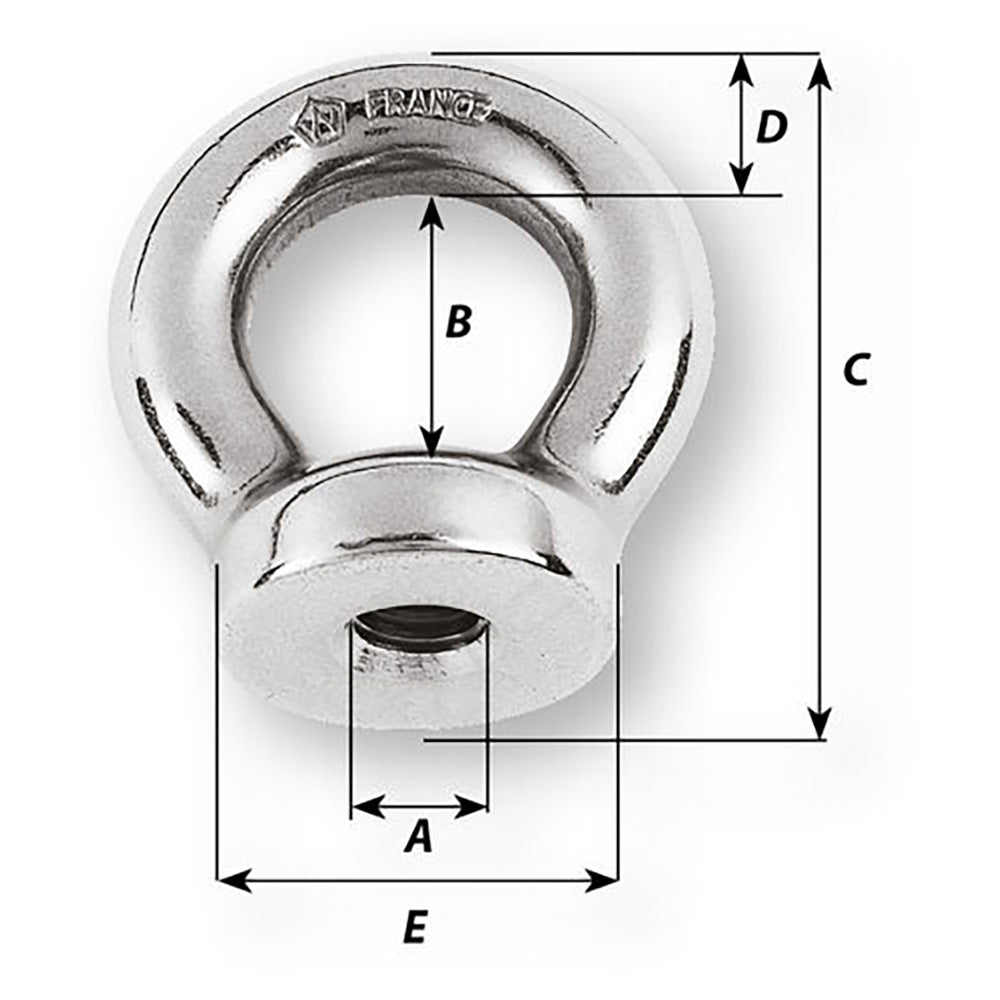

Dimensions:

  • A: (mm) M12 x 175
  • B: (inch) 55/64" / (mm) 22
  • C: (inch) 1 13/16" / (mm) 46
  • D: (inch) 25/64" / (mm) 10
  • E: (inch) 1 7/64" / (mm) 28

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

10mm Eye Nut - Thread M12 x 175mmFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking... Read more

SKU: CWR-97677
Barcode: 3587790063561

$71.13$52.57

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      10mm Eye Nut - Thread M12 x 175mm

      Features:

      • A complete range of single-piece forged products for fastenings applications
      • Outstanding breaking loads
      • Available in different sizes

      Applications:

      • Various fastening applications
      • Towing application
      • Waterskiing lines attachment

      Specifications:

      • Materials: 316L stainless steel grade
      • Breaking load: (lb) 11460 / (kg) 5200
      • Weight: (lb) 0.209 / (g) 95

      Dimensions:

      • A: (mm) M12 x 175
      • B: (inch) 55/64" / (mm) 22
      • C: (inch) 1 13/16" / (mm) 46
      • D: (inch) 25/64" / (mm) 10
      • E: (inch) 1 7/64" / (mm) 28

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
