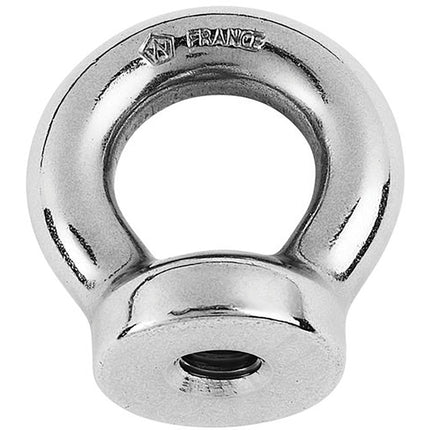

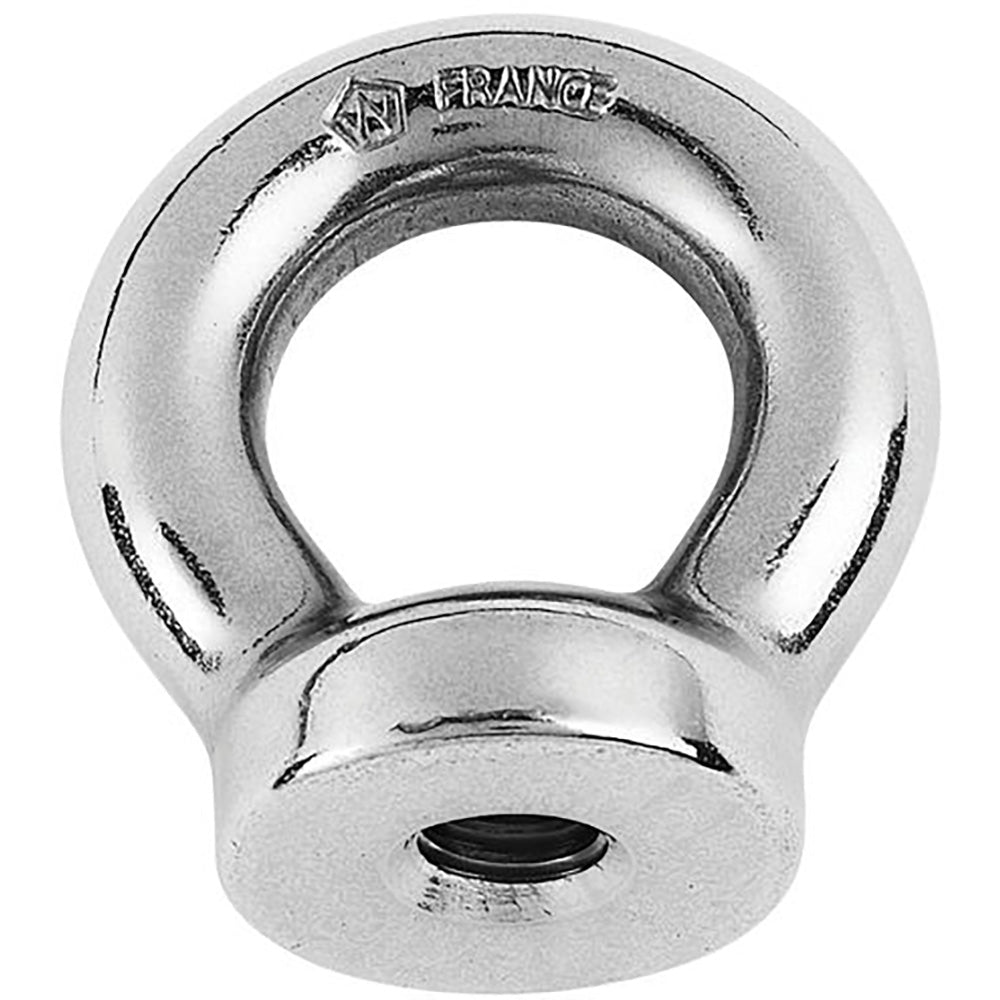

Wichard 12mm Eye Nut - Thread M16 x 200mm [06368]

Description

12mm Eye Nut - Thread M16 x 200mm

Features:

  • A complete range of single-piece forged products for fastenings applications
  • Outstanding breaking loads
  • Available in different sizes

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.364 / (g) 165

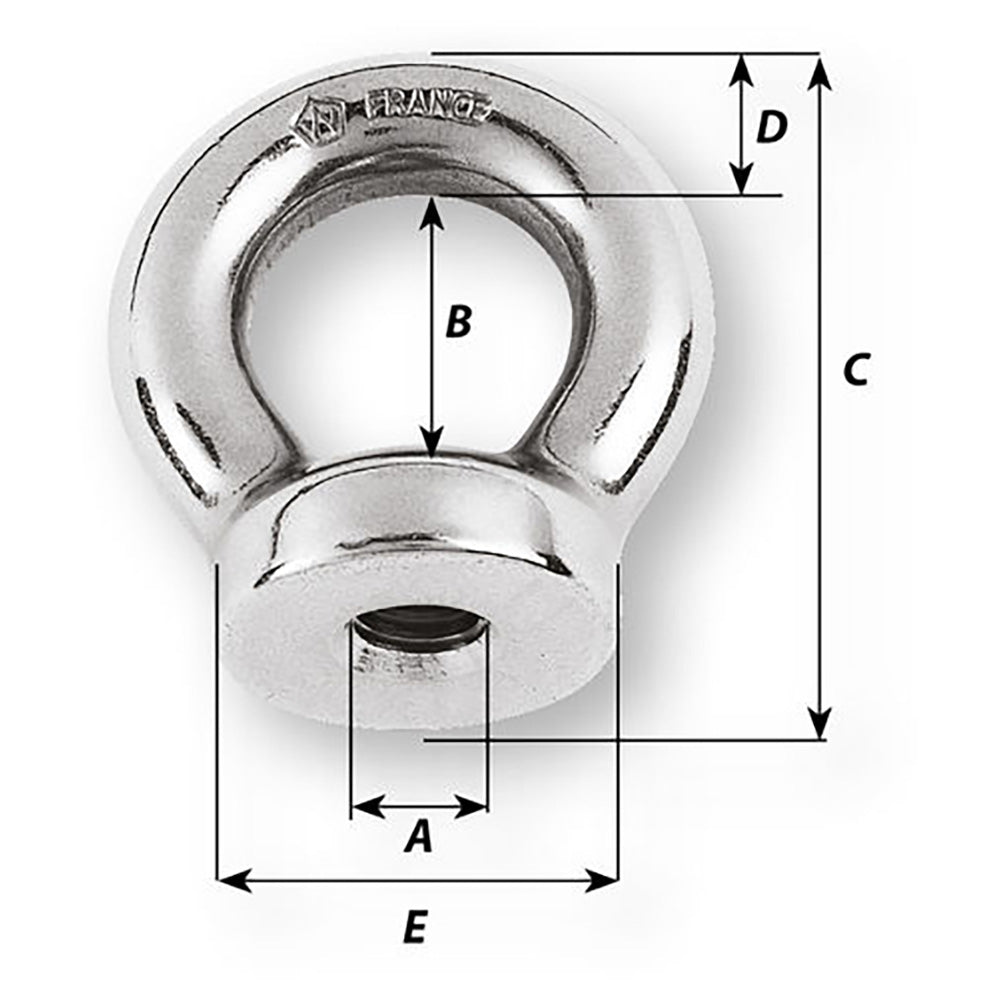

Dimensions:

  • A: (mm) M16 x 200
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 2 13/64" / (mm) 56
  • D: (inch) 15/32" / (mm) 12
  • E: (inch) 1 11/32" / (mm) 34

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

12mm Eye Nut - Thread M16 x 200mmFeatures: A complete range of single-piece forged products for fastenings applications Outstanding breaking... Read more

SKU: CWR-97681
Barcode: 3587790063684

$110.11$81.39

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Oct 04, 2025 15:00:00 -0400

    Description

    12mm Eye Nut - Thread M16 x 200mm

    Features:

    • A complete range of single-piece forged products for fastenings applications
    • Outstanding breaking loads
    • Available in different sizes

    Applications:

    • Various fastening applications
    • Towing application
    • Waterskiing lines attachment

    Specifications:

    • Materials: 316L stainless steel grade
    • Breaking load: (lb) 22040 / (kg) 10000
    • Weight: (lb) 0.364 / (g) 165

    Dimensions:

    • A: (mm) M16 x 200
    • B: (inch) 1 1/16" / (mm) 27
    • C: (inch) 2 13/64" / (mm) 56
    • D: (inch) 15/32" / (mm) 12
    • E: (inch) 1 11/32" / (mm) 34

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
