Wichard Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32" [65341W]

Description

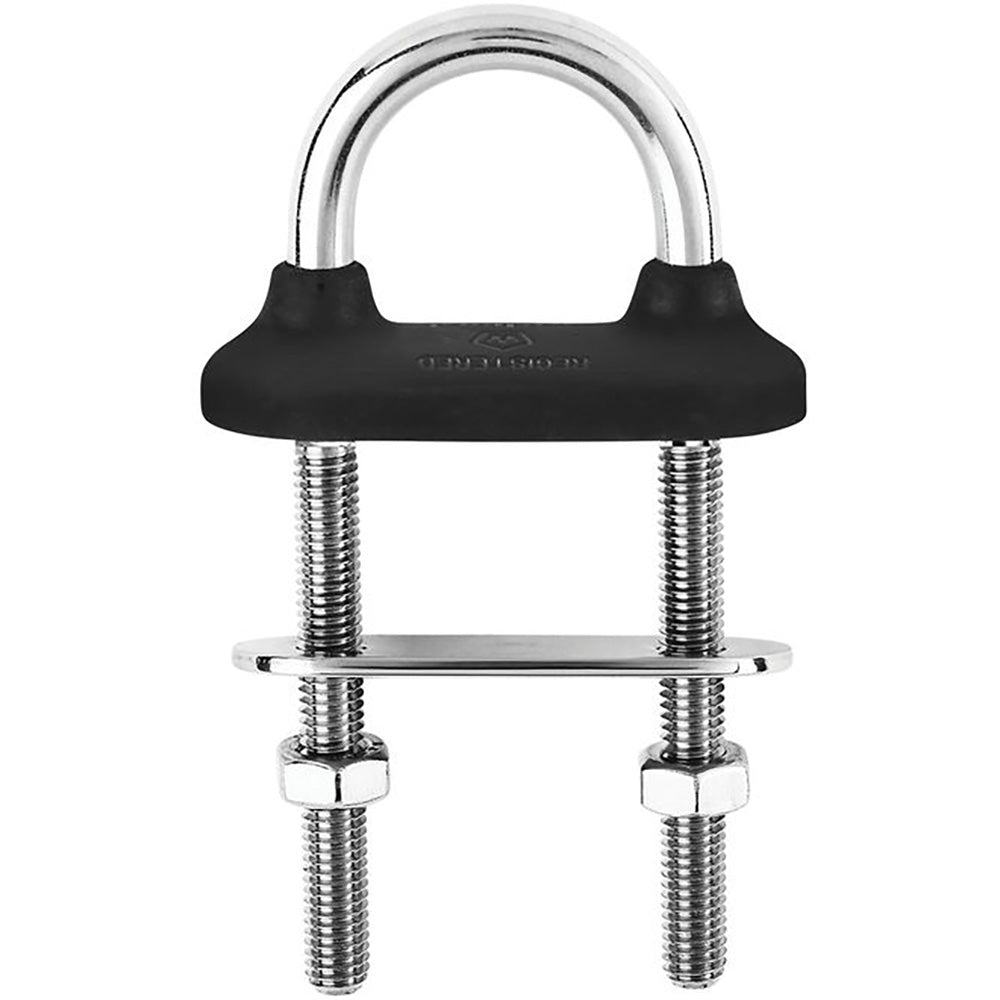

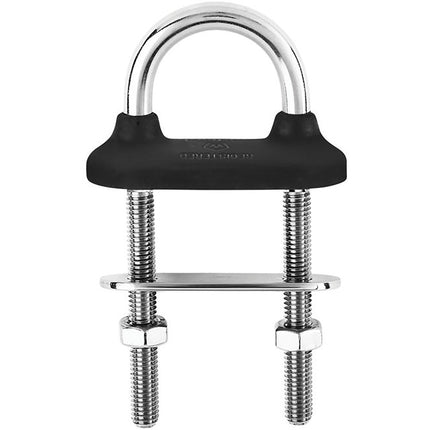

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Features:

  • Fully drop-forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 18 nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.271 / (g) 123

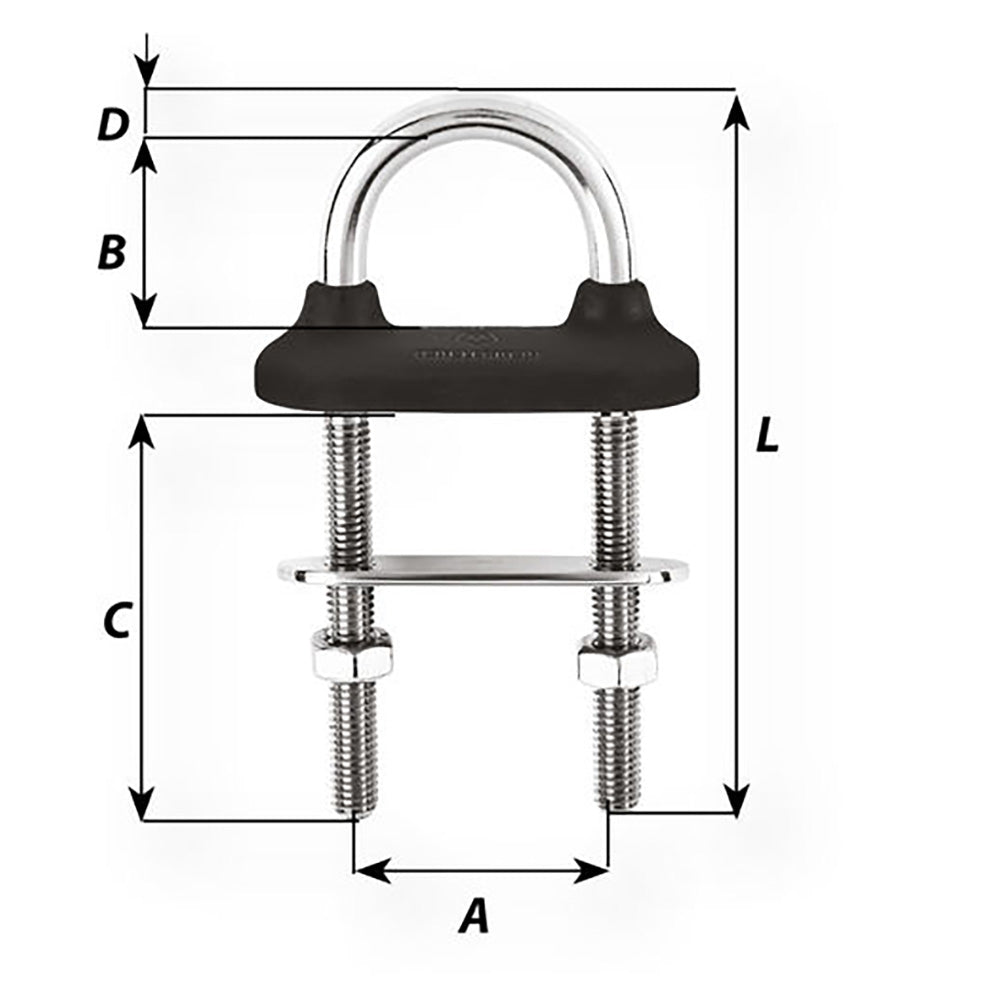

Dimensions:

  • Length: (inch) 3 5/32" / (mm) 80
  • A: (inch) 1 27/64" / (mm) 36
  • B: (inch) 63/64" / (mm) 25
  • C: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 5/16" / (mm) 8

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"Features:  Fully drop-forged product with high-quality stainless steel... Read more

SKU: CWR-97733
Barcode: 3587790653410

8 in stock

$48.09$40.88

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

      Features:

      • Fully drop-forged product with high-quality stainless steel
      • Outstanding working and breaking loads
      • Complete water-tightness thanks to the resistant rubber collar (black color)
      • Easy installation (no need to use a waterproof sealant)
      • Delivered with bolts and counter-plate
      • Max tightening torque: 18 nm

      Applications:

      • Various fastening applications: shrouds, lifelines, blocks…

      Specifications:

      • Materials: 316L stainless steel grade
      • Color: Black
      • Working load: (lb) 5290 / (kg) 2400
      • Breaking load: (lb) 10580 / (kg) 4800
      • Weight: (lb) 0.271 / (g) 123

      Dimensions:

      • Length: (inch) 3 5/32" / (mm) 80
      • A: (inch) 1 27/64" / (mm) 36
      • B: (inch) 63/64" / (mm) 25
      • C: (inch) 1 37/64" / (mm) 40
      • D diameter: (inch) 5/16" / (mm) 8

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
