Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16" [01414]

Description

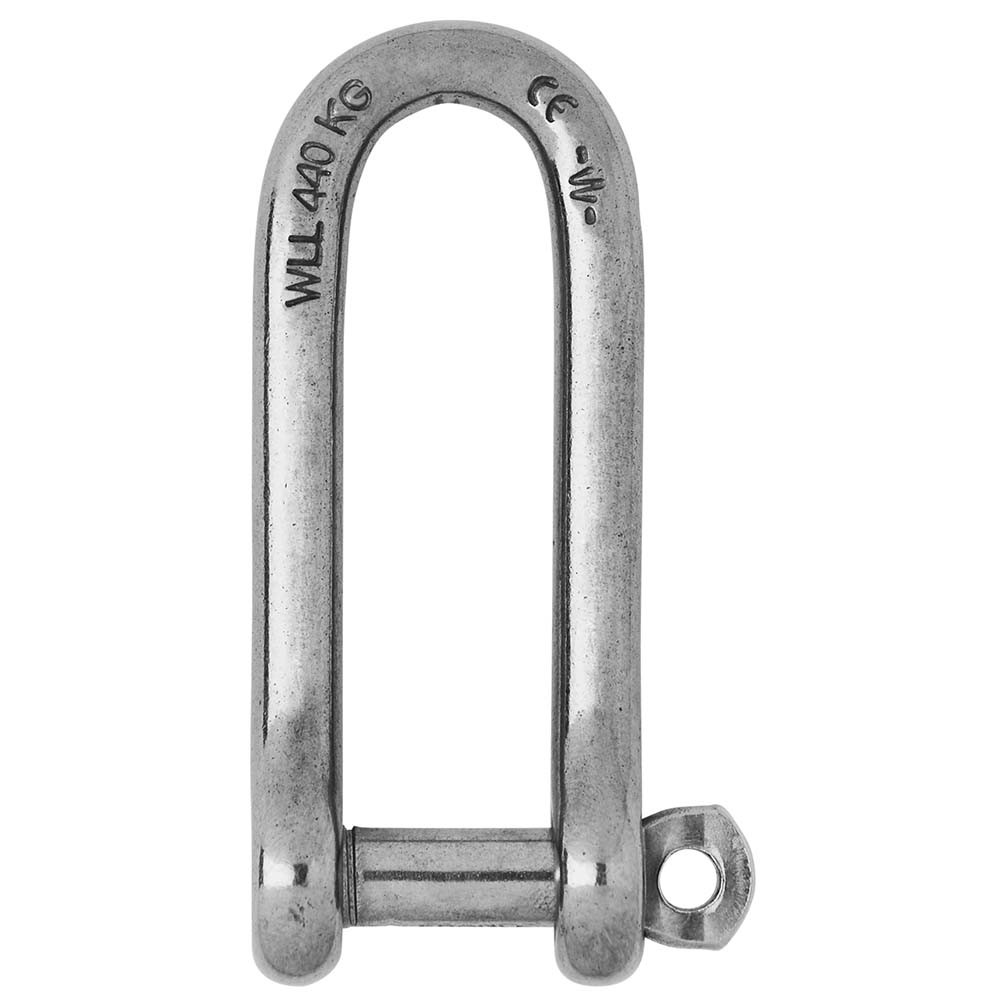

Captive Pin Long D Shackle - Diameter 8mm - 5/16"

Features:

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1580
  • Breaking load (lb) 7930
  • Weight (lb) 0.203

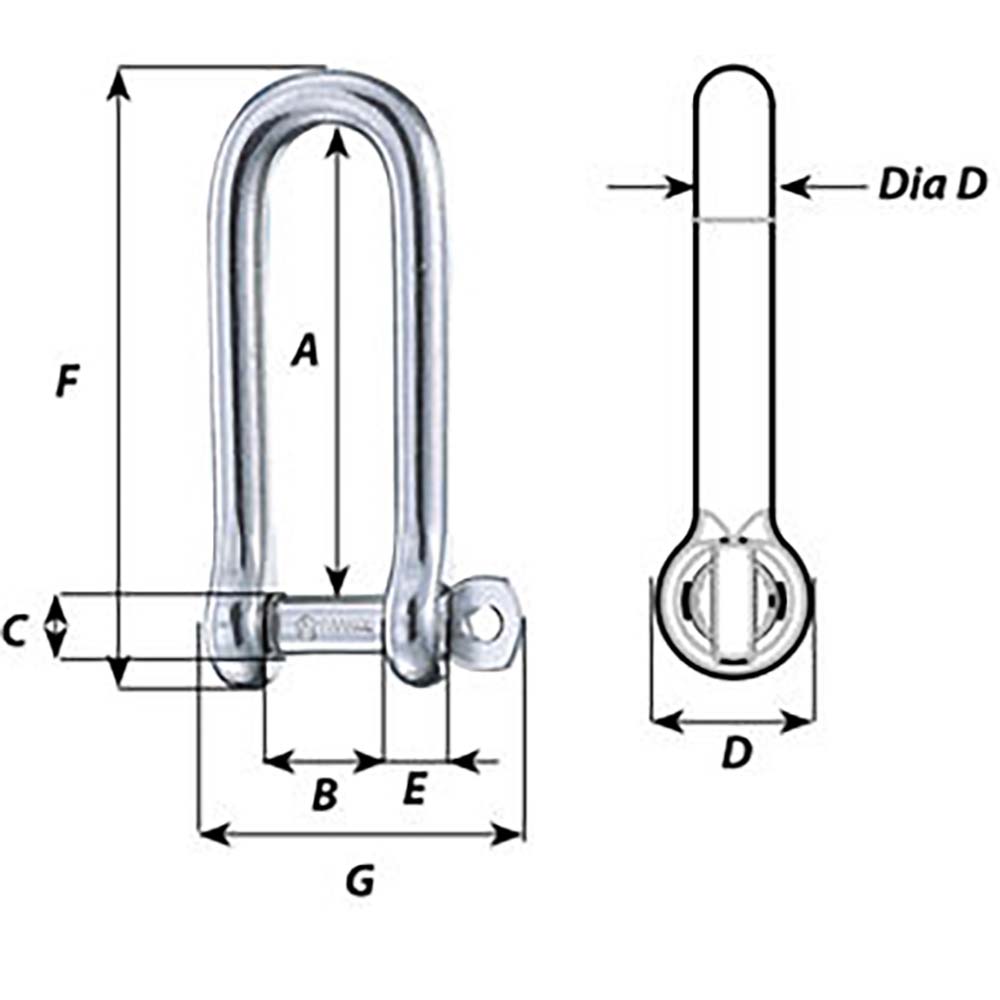

Dimensions (see 2nd image):

  • A (inch) 2-7/16"
  • B (inch) 5/8"
  • C (inch) 23/64"
  • D (inch) 43/64"
  • D diameter (inch) 5/16"
  • E (inch) 5/16"
  • F (inch) 3-15/64"
  • G (inch) 1-11/16"
Product form

Captive Pin Long D Shackle - Diameter 8mm - 5/16"Features: Captive pin long "D" shackle forged in grade 316L stainless... Read more

SKU: CWR-93118
Barcode: 3587790014143

$77.11$56.99

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Oct 07, 2025 15:00:00 -0400

    Description

    Captive Pin Long D Shackle - Diameter 8mm - 5/16"

    Features:

    • Captive pin long "D" shackle forged in grade 316L stainless steel
    • The pin is connected to the body at all times even when opened
    • The pin is locked into one of the indentations
    • No risks of loosening due to vibrations
    • Outstanding working and breaking loads

    Applications:

    • Standard applications of shackle requiring more length
    • Attachment applications: blocks, head...

    Specifications:

    • Materials 316 stainless steel grade
    • Working load (lb) 2200
    • WLL (lb) 1580
    • Breaking load (lb) 7930
    • Weight (lb) 0.203

    Dimensions (see 2nd image):

    • A (inch) 2-7/16"
    • B (inch) 5/8"
    • C (inch) 23/64"
    • D (inch) 43/64"
    • D diameter (inch) 5/16"
    • E (inch) 5/16"
    • F (inch) 3-15/64"
    • G (inch) 1-11/16"
