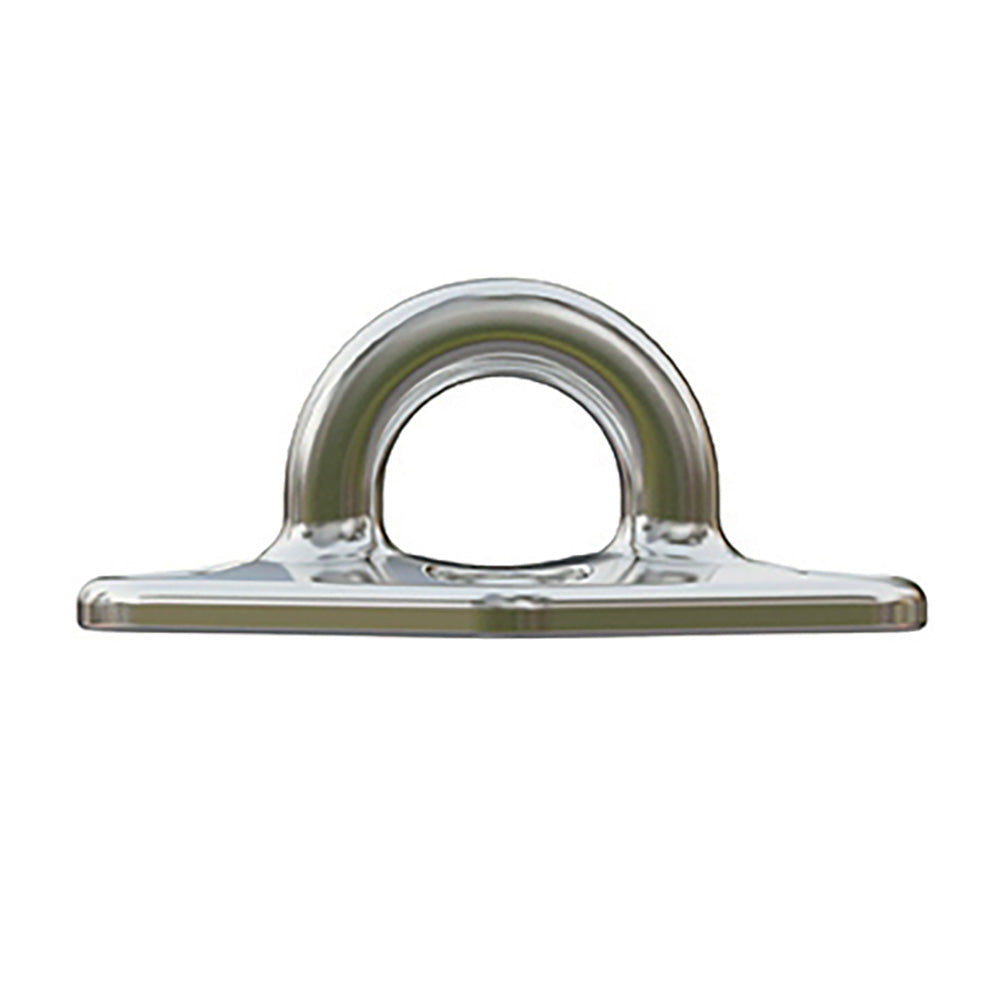

Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw [6645W]

Description

Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M6 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 6393.4 / (kg) 2900
  • Breaking Load: (lb) 17196 / (kg) 7800
  • Weight: (lb) 0.315 / (g) 143
  • W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
  • W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
  • W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
  • B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
  • B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
  • B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

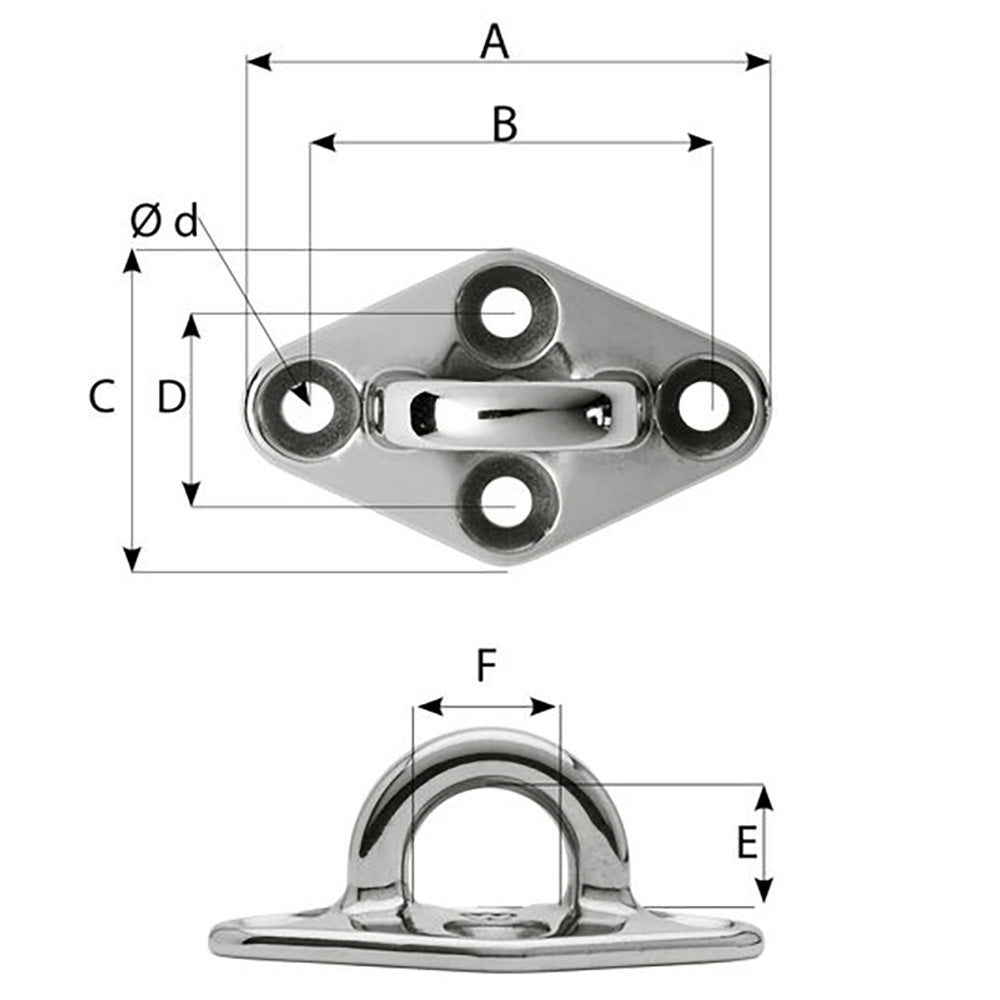

Dimensions:

  • A: (inch) 3 7/64" / (mm) 79
  • B: (inch) 2 23/64" / (mm) 60
  • C: (inch) 1 31/32" / (mm) 50
  • D: (inch) 1 17/64" / (mm) 32
  • E: (inch) 47/64" / (mm) 18.5
  • F: (inch) 55/64" / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 ScrewFeatures: Mechanical resistance versus corrosion resistance ratio Optimized dimensions... Read more

SKU: CWR-99736
Barcode: 9316800716739

1 in stock

$48.57$41.28

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

      Features:

      • Mechanical resistance versus corrosion resistance ratio
      • Optimized dimensions
      • For M6 screw

      Applications:

      • Mast foot blocks
      • Reefing blocks
      • Various fastenings

      Specifications:

      • Materials: Duplex stainless steel grade
      • Working Load: (lb) 6393.4 / (kg) 2900
      • Breaking Load: (lb) 17196 / (kg) 7800
      • Weight: (lb) 0.315 / (g) 143
      • W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
      • W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
      • W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
      • B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
      • B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
      • B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

      Dimensions:

      • A: (inch) 3 7/64" / (mm) 79
      • B: (inch) 2 23/64" / (mm) 60
      • C: (inch) 1 31/32" / (mm) 50
      • D: (inch) 1 17/64" / (mm) 32
      • E: (inch) 47/64" / (mm) 18.5
      • F: (inch) 55/64" / (mm) 22

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
