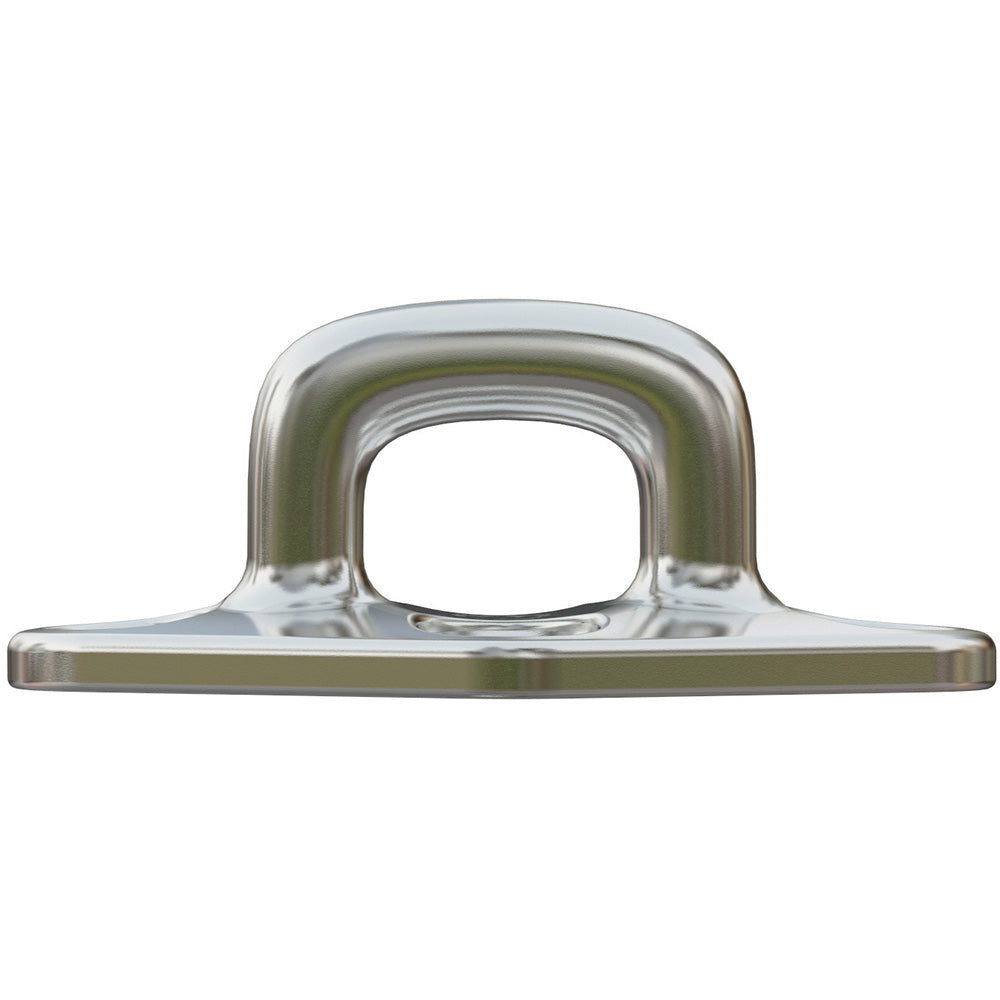

Wichard Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw [6654]

Description

Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M5 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 2645.5 / (kg) 1200
  • Breaking Load: (lb) 7054.7 / (kg) 3200
  • Weight: (lb) 0.13 / (g) 59
  • W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
  • W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
  • W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
  • B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
  • B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
  • B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

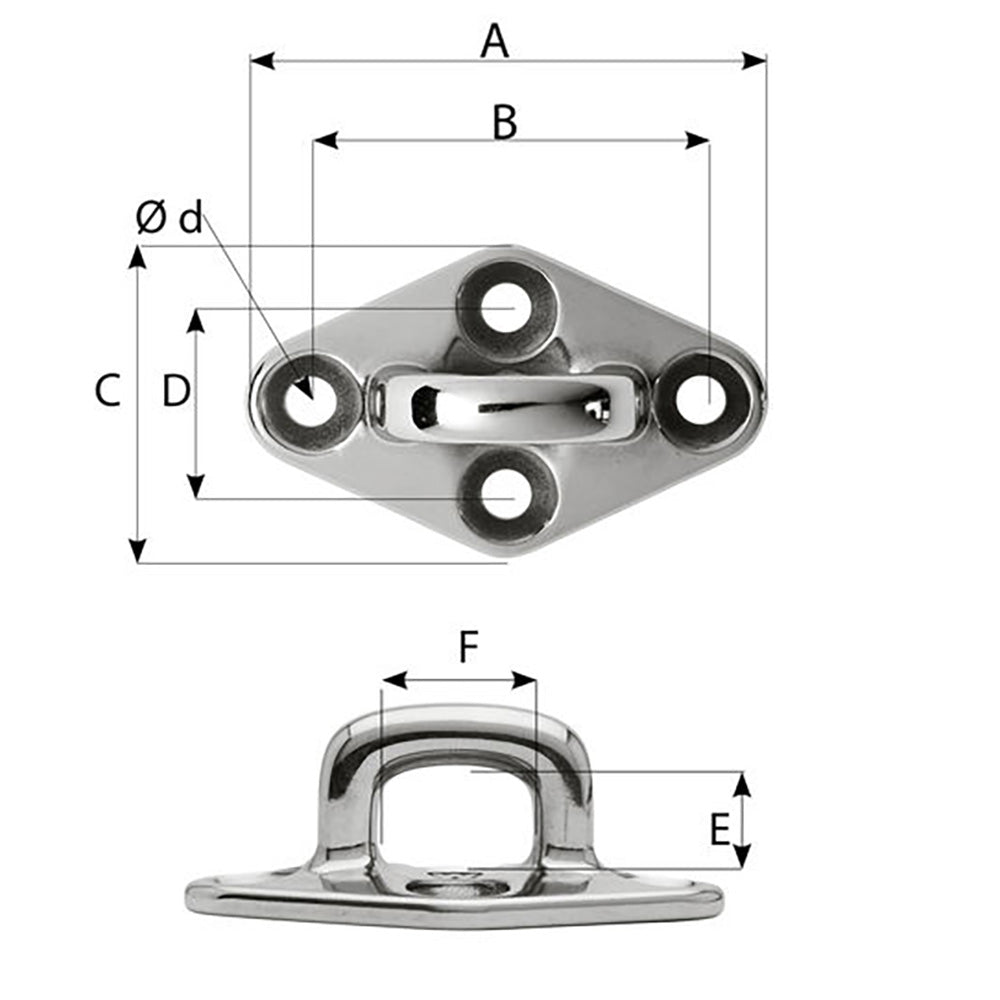

Dimensions:

  • A: (inch) 2 23/64" / (mm) 60
  • B: (inch) 1 13/16" / (mm) 46
  • C: (inch) 1 1/2" / (mm) 38
  • D: (inch) 15/16" / (mm) 24
  • E: (inch) 15/32" / (mm) 12
  • F: (inch) 3/4" / (mm) 19

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 ScrewFeatures: Mechanical resistance versus corrosion resistance ratio Optimized dimensions... Read more

SKU: CWR-99738

4 in stock

$35.33$26.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

      Features:

      • Mechanical resistance versus corrosion resistance ratio
      • Optimized dimensions
      • For M5 screw

      Applications:

      • Mast foot blocks
      • Reefing blocks
      • Various fastenings

      Specifications:

      • Materials: Duplex stainless steel grade
      • Working Load: (lb) 2645.5 / (kg) 1200
      • Breaking Load: (lb) 7054.7 / (kg) 3200
      • Weight: (lb) 0.13 / (g) 59
      • W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
      • W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
      • W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
      • B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
      • B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
      • B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

      Dimensions:

      • A: (inch) 2 23/64" / (mm) 60
      • B: (inch) 1 13/16" / (mm) 46
      • C: (inch) 1 1/2" / (mm) 38
      • D: (inch) 15/16" / (mm) 24
      • E: (inch) 15/32" / (mm) 12
      • F: (inch) 3/4" / (mm) 19

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
