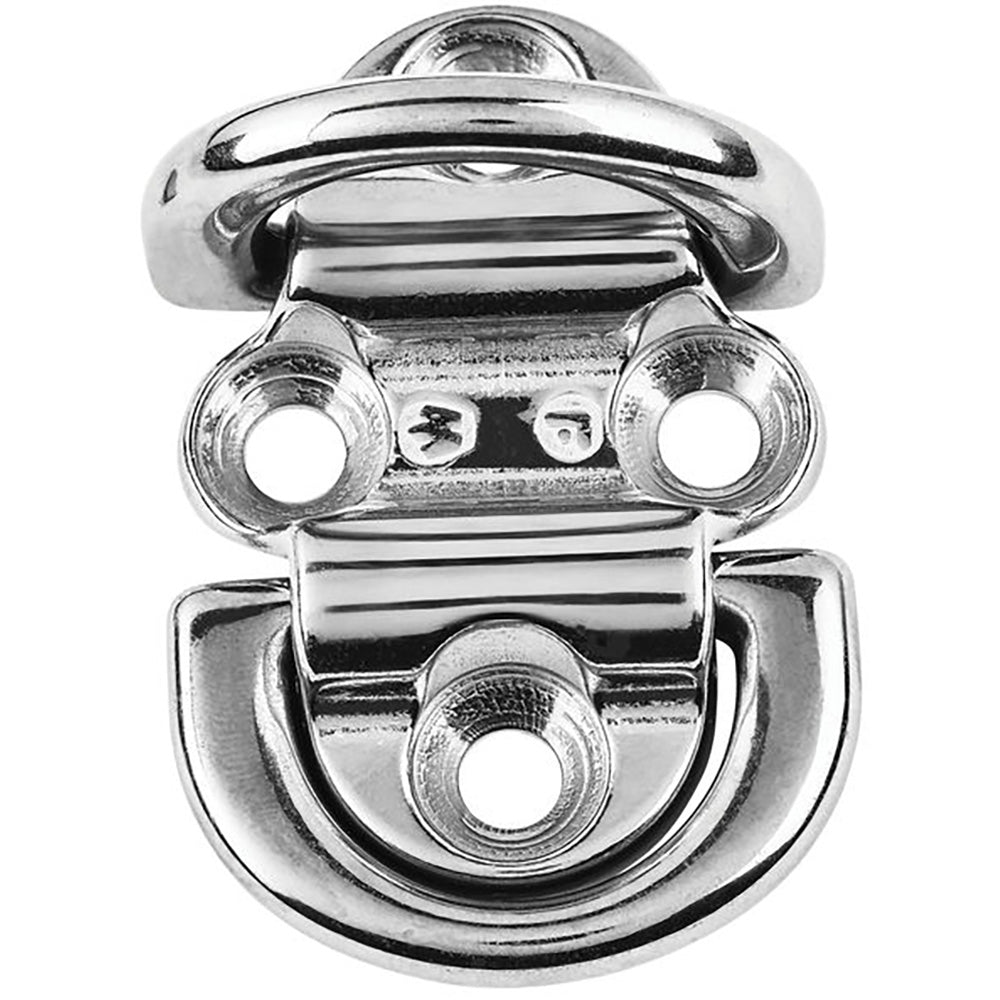

Wichard Double Folding Pad Eye - 6mm Diameter - 15/64" [06564]

Description

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 3170 / (kg) 1440
  • Breaking load; (lb) 5510 / (kg) 2500
  • Weight: (lb) 0.278 / (g) 126

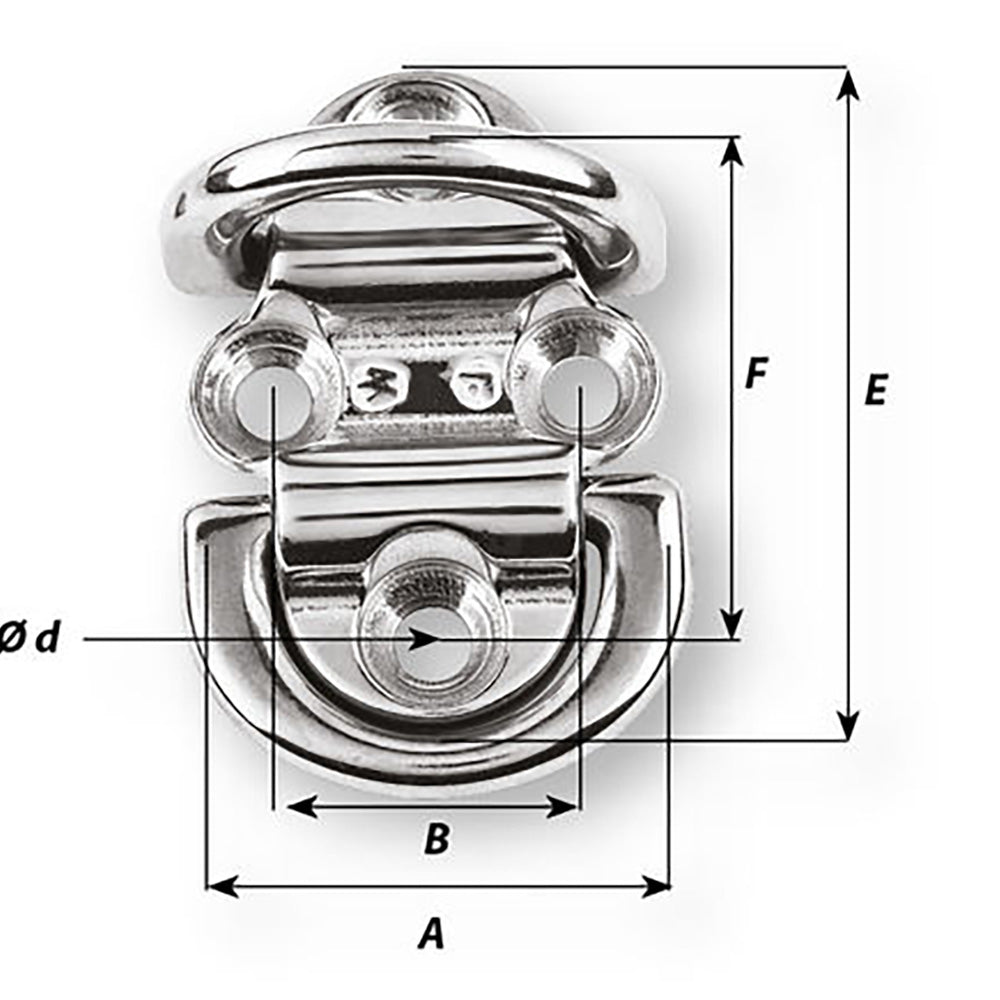

Dimensions:

  • A: (inch) 1 49/64" / (mm) 45
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 35/64" / (mm) 14
  • d diameter: (inch) 1/4" / (mm) 6.4
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 2 61/64" / (mm) 75
  • F: (inch) 2 21/64" / mm) 59

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Double Folding Pad Eye - 6mm Diameter - 15/64"Features: Fully drop forged product with outstanding working and breaking loads regardless... Read more

SKU: CWR-97695
Barcode: 768536027259

$176.35$130.35

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Double Folding Pad Eye - 6mm Diameter - 15/64"

      Features:

      • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
      • Perfect solution attachment (stay, blocks, jib tack point)
      • Possibility to attach several stays
      • Modern and optimized design to suit the aesthetics of modern boats
      • They can be folded down to minimize the risk of injuries
      • The silicon pad eliminates noise and unpleasant vibrations

      Applications:

      • For any fastening/attachment application
      • Allows to attach several shrouds

      Specifications:

      • Materials: 316L stainless steel grade
      • Working load: (lb) 3170 / (kg) 1440
      • Breaking load; (lb) 5510 / (kg) 2500
      • Weight: (lb) 0.278 / (g) 126

      Dimensions:

      • A: (inch) 1 49/64" / (mm) 45
      • B: (inch) 1 1/16" / (mm) 27
      • C: (inch) 35/64" / (mm) 14
      • d diameter: (inch) 1/4" / (mm) 6.4
      • D diameter: (inch) 15/64" / (mm) 6
      • E: (inch) 2 61/64" / (mm) 75
      • F: (inch) 2 21/64" / mm) 59

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
