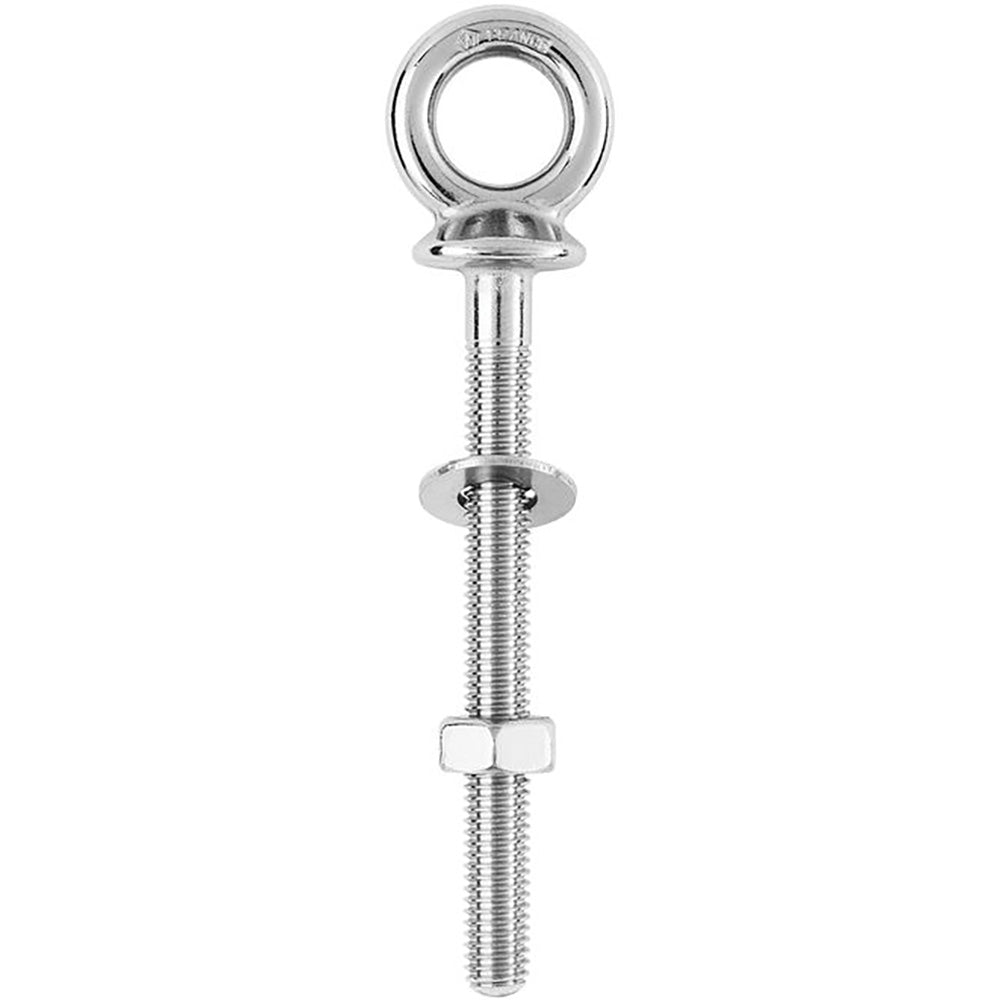

Wichard Eye Bolt - M10 x 150mm - Length 100mm [6495W]

Description

Eye Bolt - M10 x 150mm - Length 100mm

Features:

  • A complete range of single piece forged products for fastenings applications
  • Outstanding working and breaking loads
  • Available in different sizes
  • Max tightening torque: 36 Nm

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.216 / (g) 98

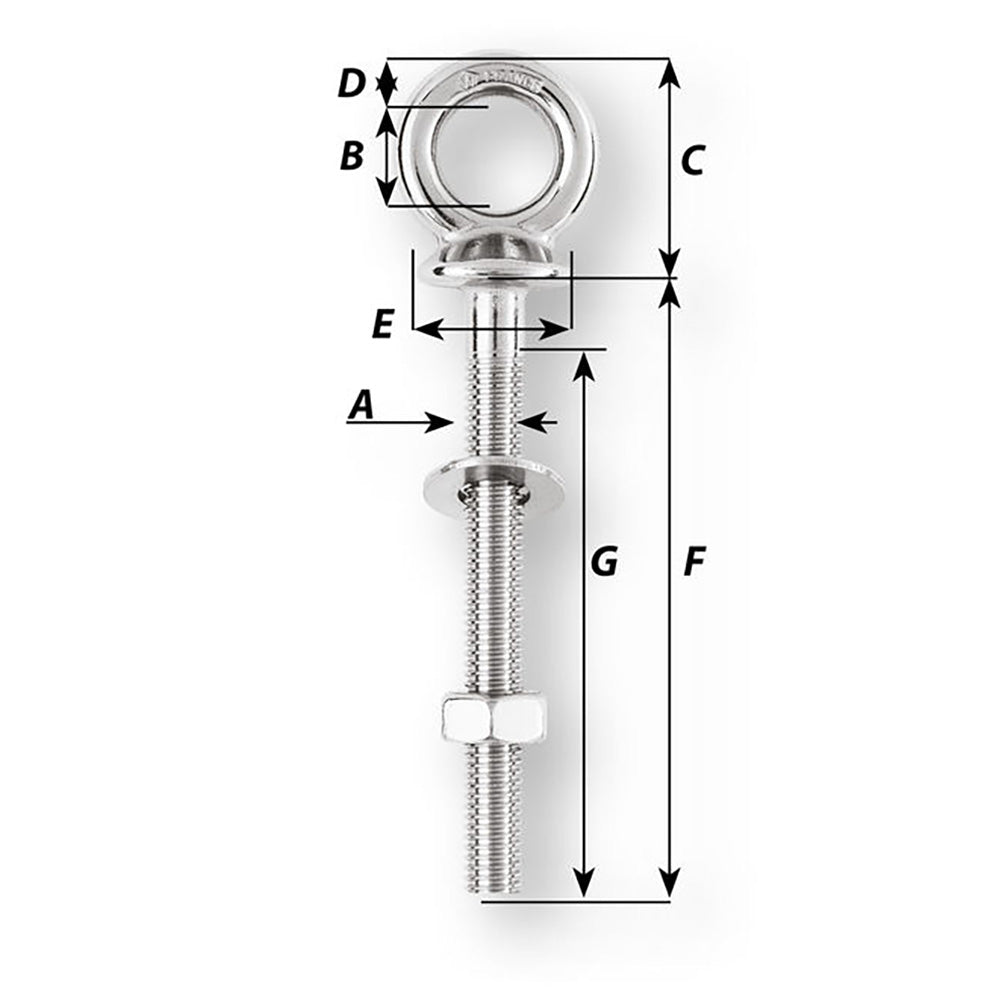

Dimensions:

  • A: (mm) M10 x 150
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 1 27/64" / (mm) 36
  • D: (inch) 9/32" / (mm) 7
  • E: (inch) 63/64" / (mm) 25
  • F: (inch) 3 15/16" / (mm) 100
  • G: (inch) 3 15/32" / (mm) 88

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Eye Bolt - M10 x 150mm - Length 100mmFeatures: A complete range of single piece forged products for fastenings applications... Read more

SKU: CWR-97682
Barcode: 768536064957

5 in stock

$91.38$77.67

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Eye Bolt - M10 x 150mm - Length 100mm

      Features:

      • A complete range of single piece forged products for fastenings applications
      • Outstanding working and breaking loads
      • Available in different sizes
      • Max tightening torque: 36 Nm

      Applications:

      • Various fastening applications
      • Towing application
      • Waterskiing lines attachment

      Specifications:

      • Materials: 316L stainless steel grade
      • Working load: (lb) 3520 / (kg) 1600
      • Breaking load: (lb) 5950 / (kg) 2700
      • Weight: (lb) 0.216 / (g) 98

      Dimensions:

      • A: (mm) M10 x 150
      • B: (inch) 5/8" / (mm) 16
      • C: (inch) 1 27/64" / (mm) 36
      • D: (inch) 9/32" / (mm) 7
      • E: (inch) 63/64" / (mm) 25
      • F: (inch) 3 15/16" / (mm) 100
      • G: (inch) 3 15/32" / (mm) 88

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
