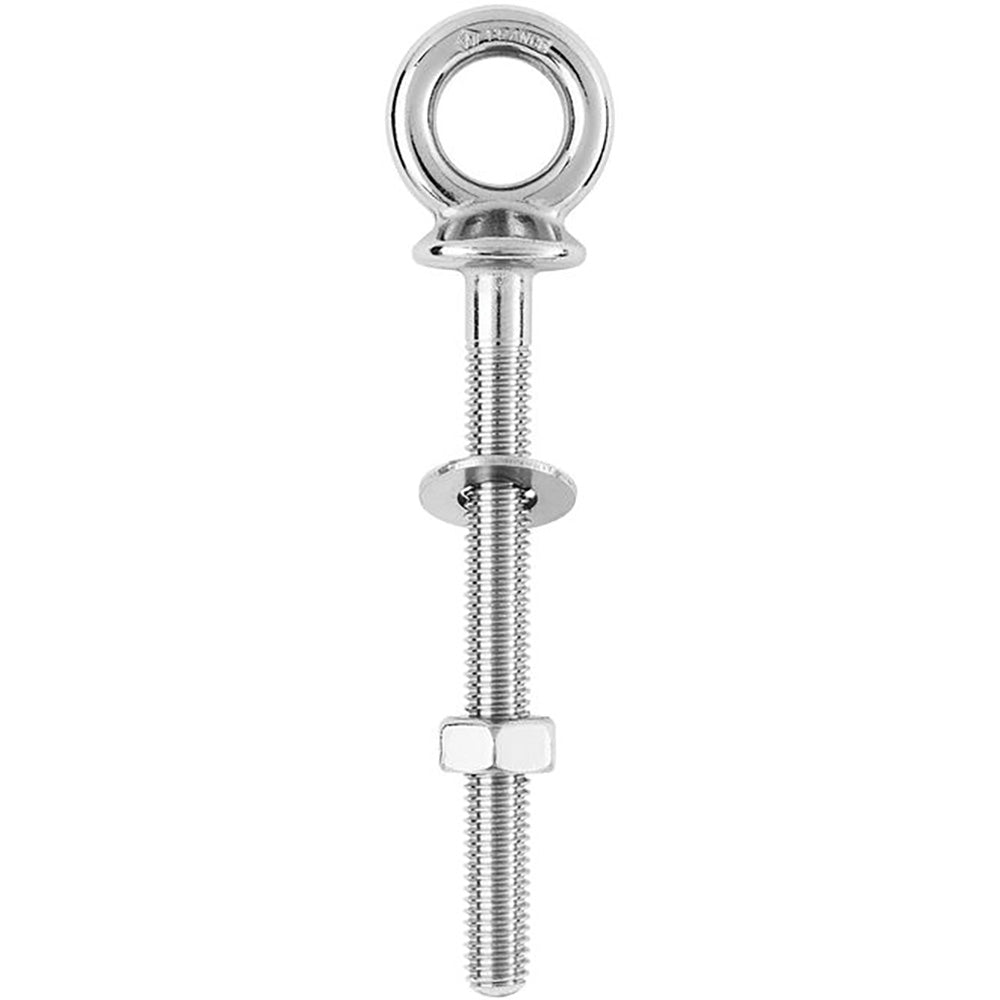

Wichard Eye Bolt - M12 x 175mm - Length 120mm [06497]

Description

Eye Bolt - M12 x 175mm - Length 120mm

Features:

  • A complete range of single piece forged products for fastenings applications
  • Outstanding working and breaking loads
  • Available in different sizes
  • Max tightening torque: 60 Nm

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 7710 / (kg) 3500
  • Weight: (lb) 0.359 / (g) 163

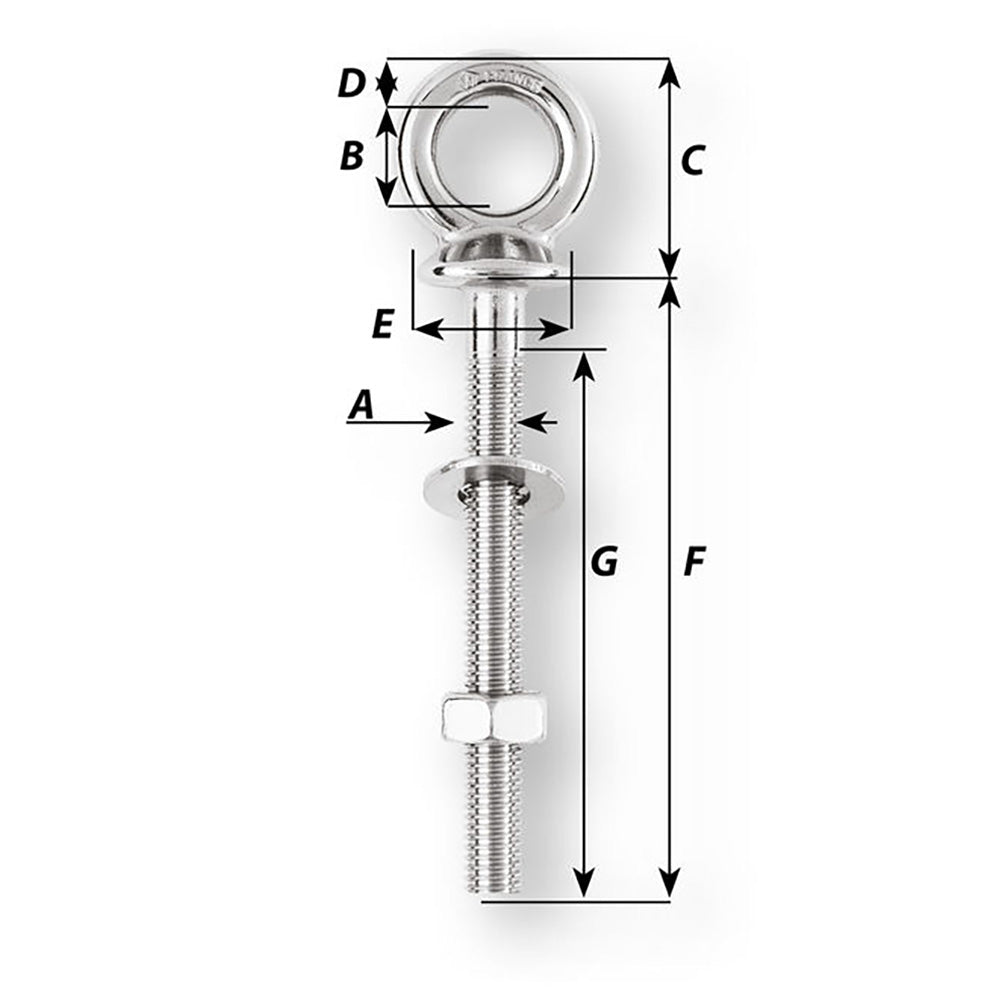

Dimensions:

  • A: (mm) M12 x 175
  • B: (inch) 45/64" / (mm) 18
  • C: (inch) 1 39/64" / (mm) 41
  • D: (inch) 5/16" / (mm) 8
  • E: (inch) 1 7/64" / (mm) 28
  • F: (inch) 4 23/32" / (mm) 120
  • G: (inch) 4 9/64" / (mm) 105

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Eye Bolt - M12 x 175mm - Length 120mmFeatures: A complete range of single piece forged products for fastenings applications... Read more

SKU: CWR-97683
Barcode: 768536027129

3 in stock

$135.47$100.13

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Eye Bolt - M12 x 175mm - Length 120mm

      Features:

      • A complete range of single piece forged products for fastenings applications
      • Outstanding working and breaking loads
      • Available in different sizes
      • Max tightening torque: 60 Nm

      Applications:

      • Various fastening applications
      • Towing application
      • Waterskiing lines attachment

      Specifications:

      • Materials: 316L stainless steel grade
      • Working load: (lb) 5290 / (kg) 2400
      • Breaking load: (lb) 7710 / (kg) 3500
      • Weight: (lb) 0.359 / (g) 163

      Dimensions:

      • A: (mm) M12 x 175
      • B: (inch) 45/64" / (mm) 18
      • C: (inch) 1 39/64" / (mm) 41
      • D: (inch) 5/16" / (mm) 8
      • E: (inch) 1 7/64" / (mm) 28
      • F: (inch) 4 23/32" / (mm) 120
      • G: (inch) 4 9/64" / (mm) 105

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
