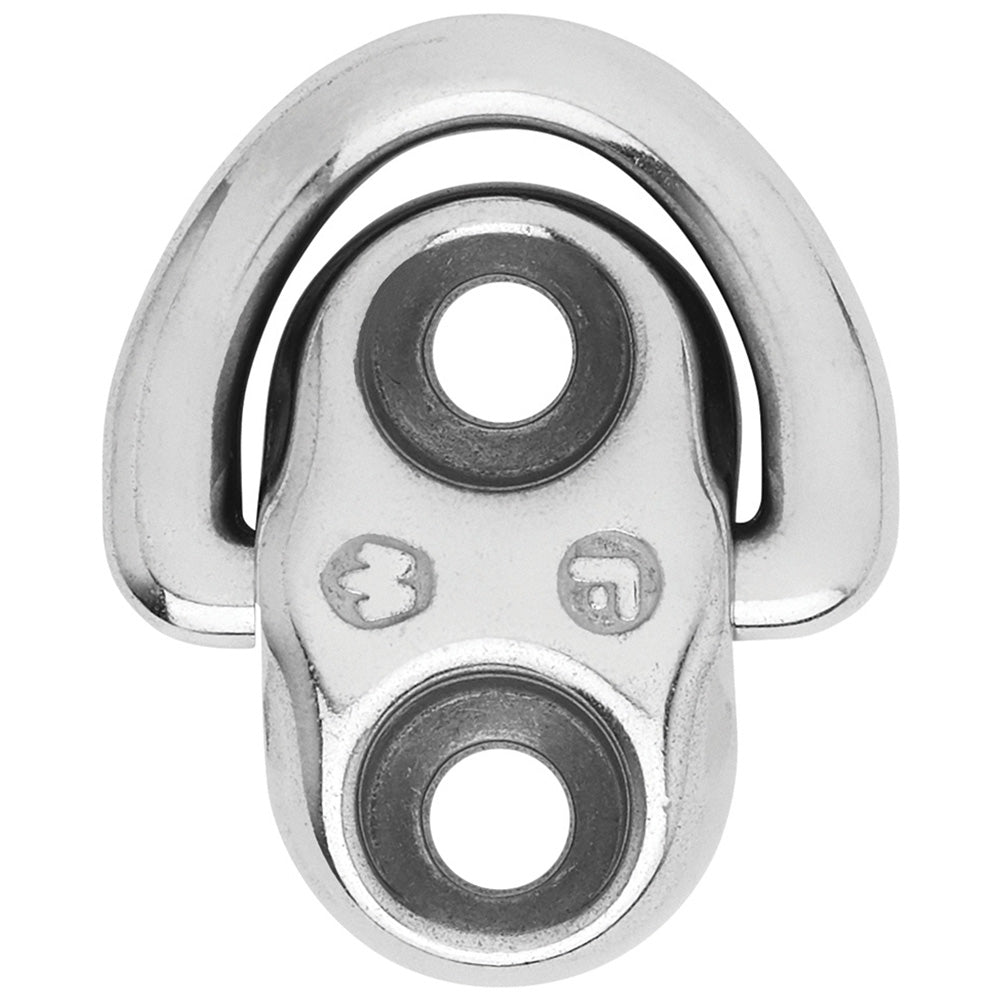

Wichard Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes [6684]

Description

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Features:

  • They are 100% safe and highly resistant to corrosion
  • Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates moist and unpleasant vibrations
  • Modern design

Applications:

  • Fastening applications (stay, blocks, jib tack point, lifeline, etc...)

Specifications:

  • Materials: 316L stainless steel grade
  • Working Load: (lb) 1650 / (kg) 750
  • Breaking Load: (lb) 3520 / (kg) 1600
  • Weight: (lb) 0.123 / (g) 56

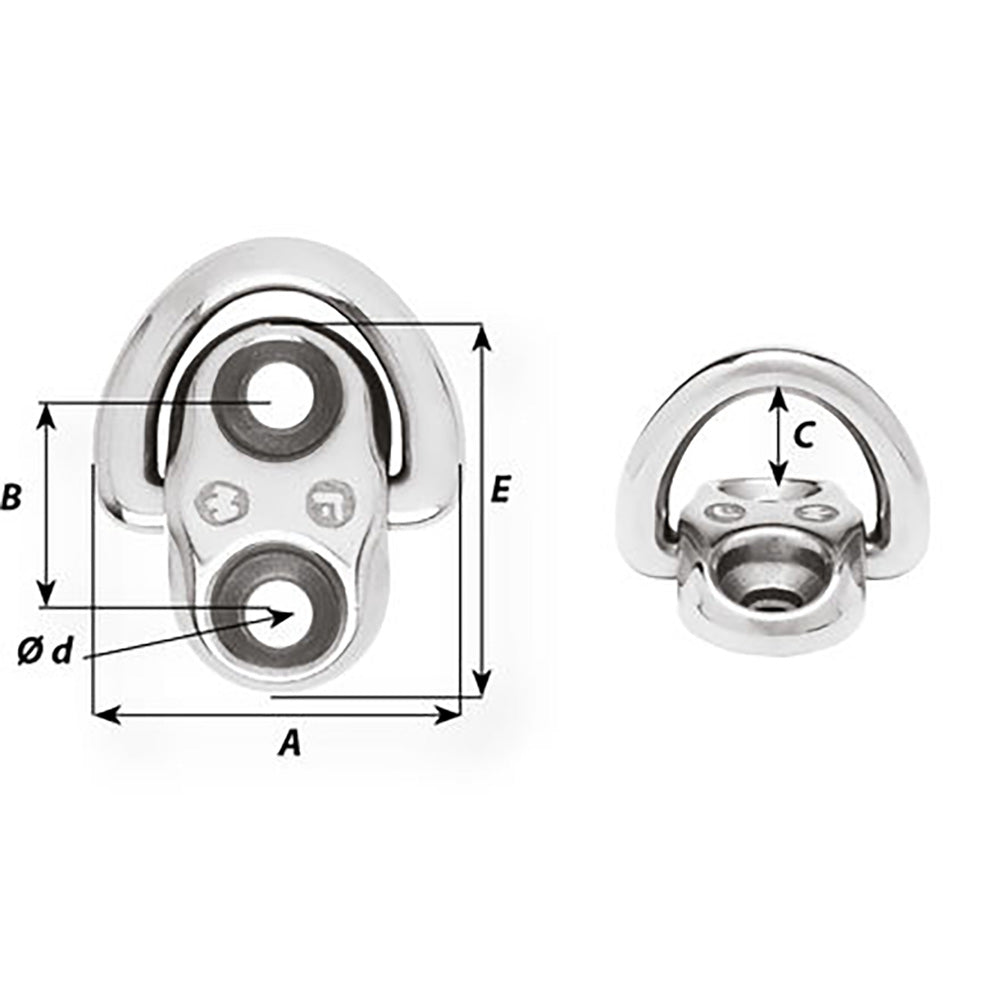

Dimensions:

  • A: (inch) 1 37/64" / (mm) 40
  • B: (inch) 59/64" / (mm) 23.4
  • C: (inch) 19/32" / (mm) 15
  • d diameter: (inch) 9/32" / (mm) 7
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 1 37/64" / (mm) 40

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed HolesFeatures: They are 100% safe and highly resistant to corrosion... Read more

SKU: CWR-99742
Barcode: 768536032031

$58.59$47.43

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

      Features:

      • They are 100% safe and highly resistant to corrosion
      • Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
      • Modern and optimized design to suit the aesthetics of modern boats
      • They can be folded down to minimize the risk of injuries
      • The silicon pad eliminates moist and unpleasant vibrations
      • Modern design

      Applications:

      • Fastening applications (stay, blocks, jib tack point, lifeline, etc...)

      Specifications:

      • Materials: 316L stainless steel grade
      • Working Load: (lb) 1650 / (kg) 750
      • Breaking Load: (lb) 3520 / (kg) 1600
      • Weight: (lb) 0.123 / (g) 56

      Dimensions:

      • A: (inch) 1 37/64" / (mm) 40
      • B: (inch) 59/64" / (mm) 23.4
      • C: (inch) 19/32" / (mm) 15
      • d diameter: (inch) 9/32" / (mm) 7
      • D diameter: (inch) 15/64" / (mm) 6
      • E: (inch) 1 37/64" / (mm) 40

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
