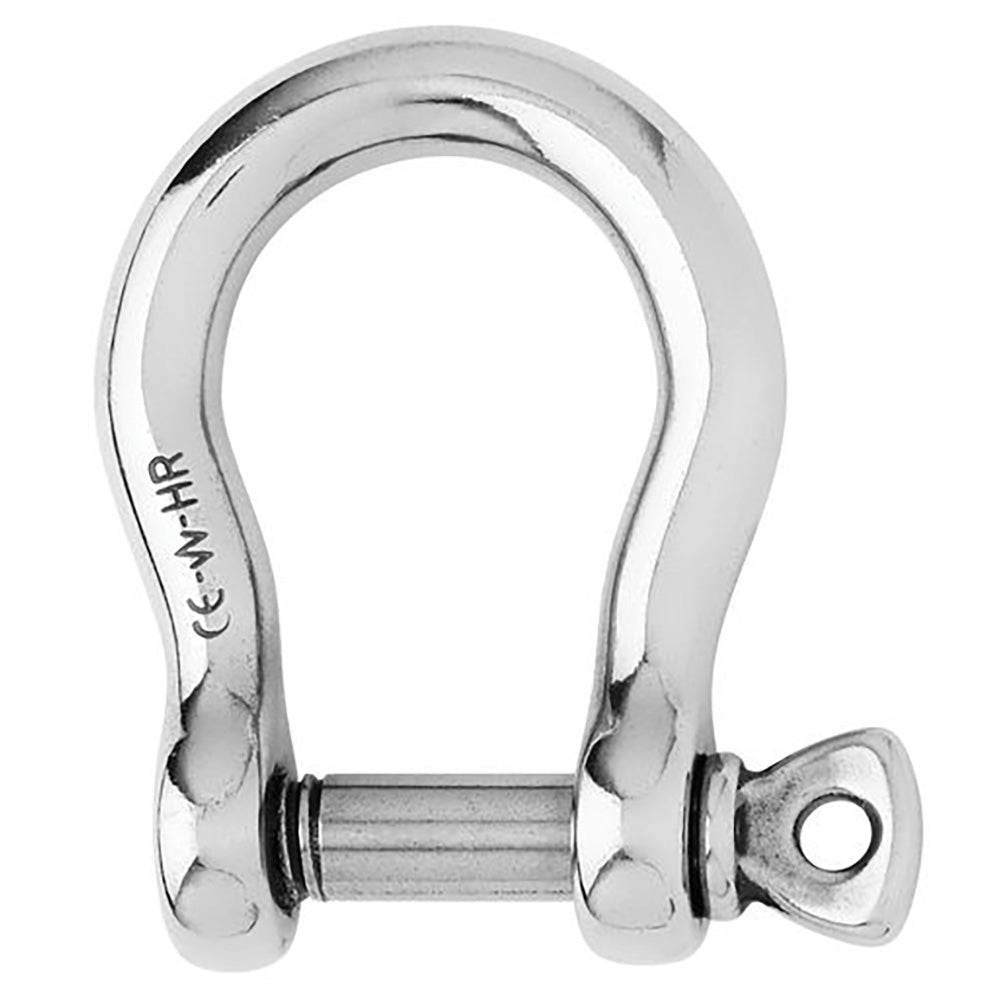

Wichard HR Bow Shackle - 12mm Pin Diameter [11246]

Description

HR Bow Shackle - 12mm Pin Diameter

Features:

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Do not use for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 7930 / (kg) 3600
  • WLL: (lb) 4400 / (kg) 2000
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.494 / (g) 224

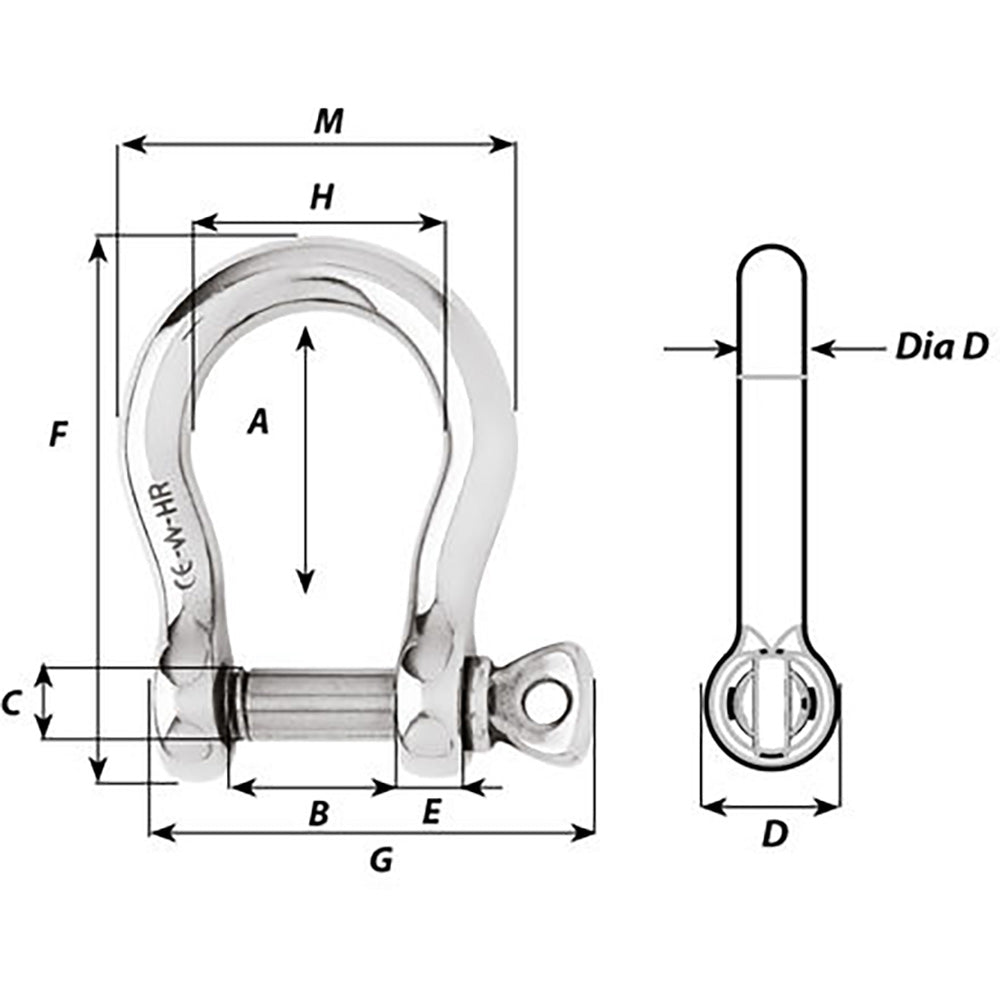

Dimensions:

  • A: (inch) 2 11/64" / (mm) 55
  • B: (inch) 15/16" / (mm) 24
  • C: (inch) 15/32" / (mm) 12
  • D: (inch) 15/16" / (mm) 24
  • D diameter: (inch) 35/64" / (mm) 14
  • E: (inch) 25/64" / (mm) 10
  • M: (inch) 2 31/64" / (mm) 63

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

Quick Guide (pdf)
Product form

HR Bow Shackle - 12mm Pin DiameterFeatures:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and... Read more

SKU: CWR-97713
Barcode: 3587790112467

$242.25$179.05

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Bow Shackle - 12mm Pin Diameter

      Features:

      • Forged bow shackle in HR stainless steel grade (17,4 PH)
      • Outstanding working and breaking load
      • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • Applications requesting high loads
      • To be used when ample room is required
      • Possibility to attach several lines or cables
      • Do not use for mooring applications

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 7930 / (kg) 3600
      • WLL: (lb) 4400 / (kg) 2000
      • Breaking load: (lb) 22040 / (kg) 10000
      • Weight: (lb) 0.494 / (g) 224

      Dimensions:

      • A: (inch) 2 11/64" / (mm) 55
      • B: (inch) 15/16" / (mm) 24
      • C: (inch) 15/32" / (mm) 12
      • D: (inch) 15/16" / (mm) 24
      • D diameter: (inch) 35/64" / (mm) 14
      • E: (inch) 25/64" / (mm) 10
      • M: (inch) 2 31/64" / (mm) 63

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      Quick Guide (pdf)
