Wichard HR Bow Shackle - 20mm Diameter - 25/32" [11248]

Description

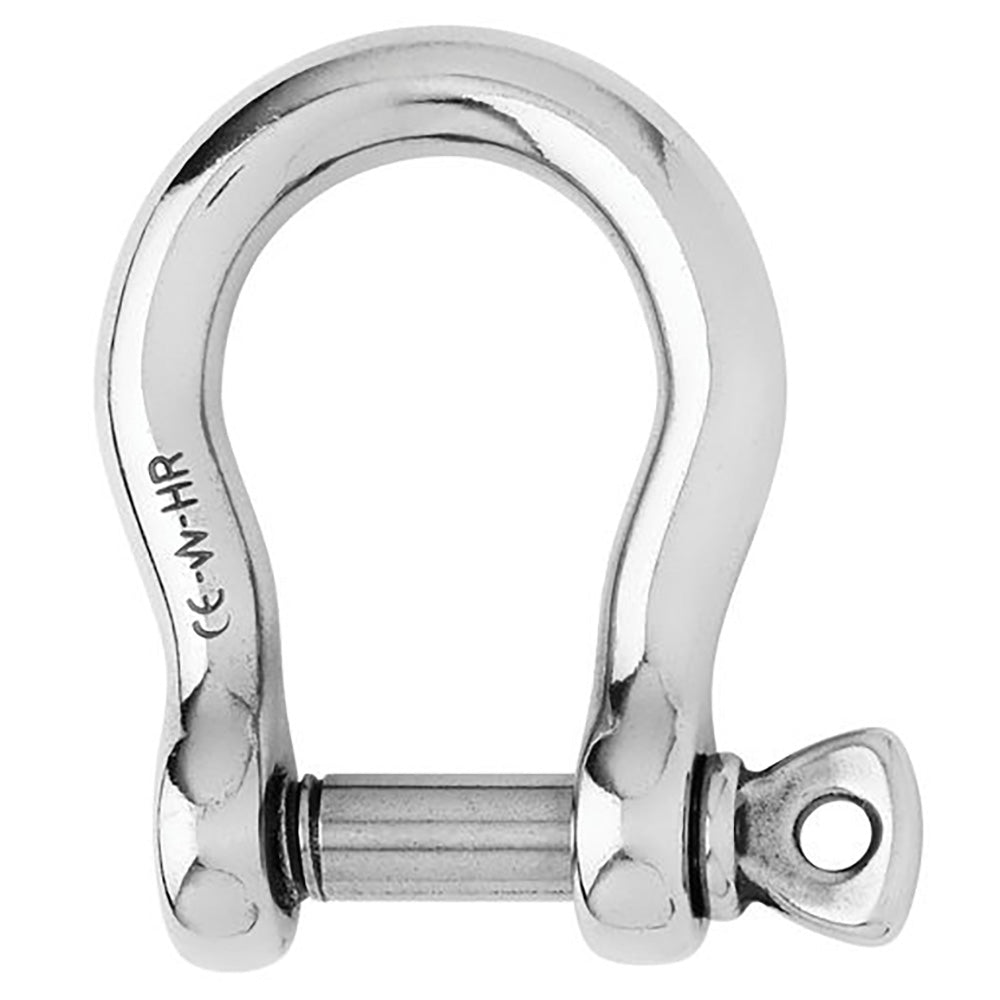

HR Bow Shackle - 20mm Diameter - 25/32"

Features:

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 19400 / (kg) 8800
  • WLL: (lb) 12340 / (kg) 5600
  • Breaking load: (lb) 61720 / (kg) 28000
  • Weight: (lb) 2.229 / (kg) 1.011

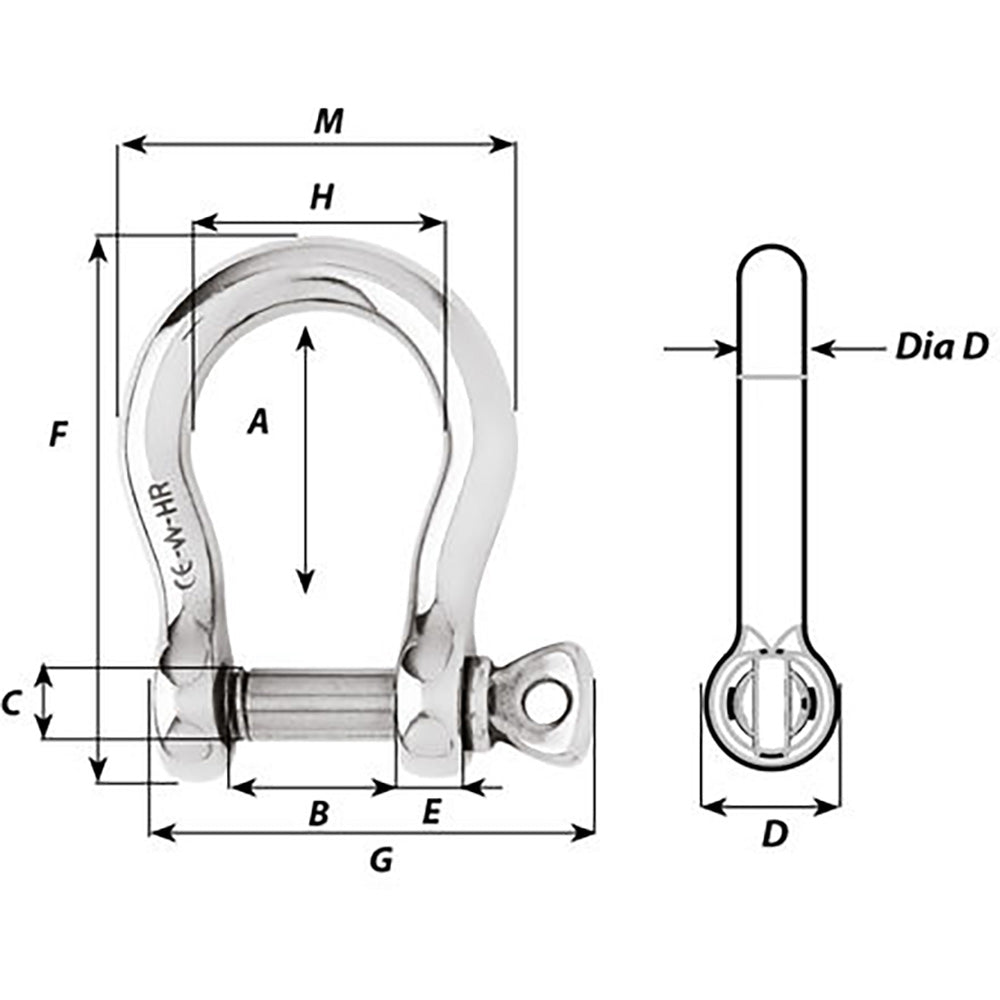

Dimensions:

  • A: (inch) 3 5/32" / (mm) 80
  • B: (inch) 1 37/64" / (mm) 40
  • C: (inch) 25/32" / (mm) 20
  • D: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 25/32" / (mm) 20
  • E: (inch) 45/64" / (mm) 18
  • M: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Bow Shackle - 20mm Diameter - 25/32"Features:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working... Read more

SKU: CWR-97715
Barcode: 768536027952

$838.58$619.82

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Bow Shackle - 20mm Diameter - 25/32"

      Features:

      • Forged bow shackle in HR stainless steel grade (17,4 PH)
      • Outstanding working and breaking load
      • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • Applications requesting high loads
      • To be used when ample room is required
      • Possibility to attach several lines or cables
      • Do not use it for mooring applications

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 19400 / (kg) 8800
      • WLL: (lb) 12340 / (kg) 5600
      • Breaking load: (lb) 61720 / (kg) 28000
      • Weight: (lb) 2.229 / (kg) 1.011

      Dimensions:

      • A: (inch) 3 5/32" / (mm) 80
      • B: (inch) 1 37/64" / (mm) 40
      • C: (inch) 25/32" / (mm) 20
      • D: (inch) 1 37/64" / (mm) 40
      • D diameter: (inch) 25/32" / (mm) 20
      • E: (inch) 45/64" / (mm) 18
      • M: (inch) 3 15/16" / (mm) 100

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
