Wichard HR D Shackle - 16mm Diameter - 5/8" [11208]

Description

HR D Shackle - 16mm Diameter - 5/8"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 14990 / (kg) 6800
  • WLL: (lb) 8370 / (kg) 3800
  • Breaking load: (lb) 41880 / (kg) 19000
  • Weight: (lb) 1.023 / (g) 464

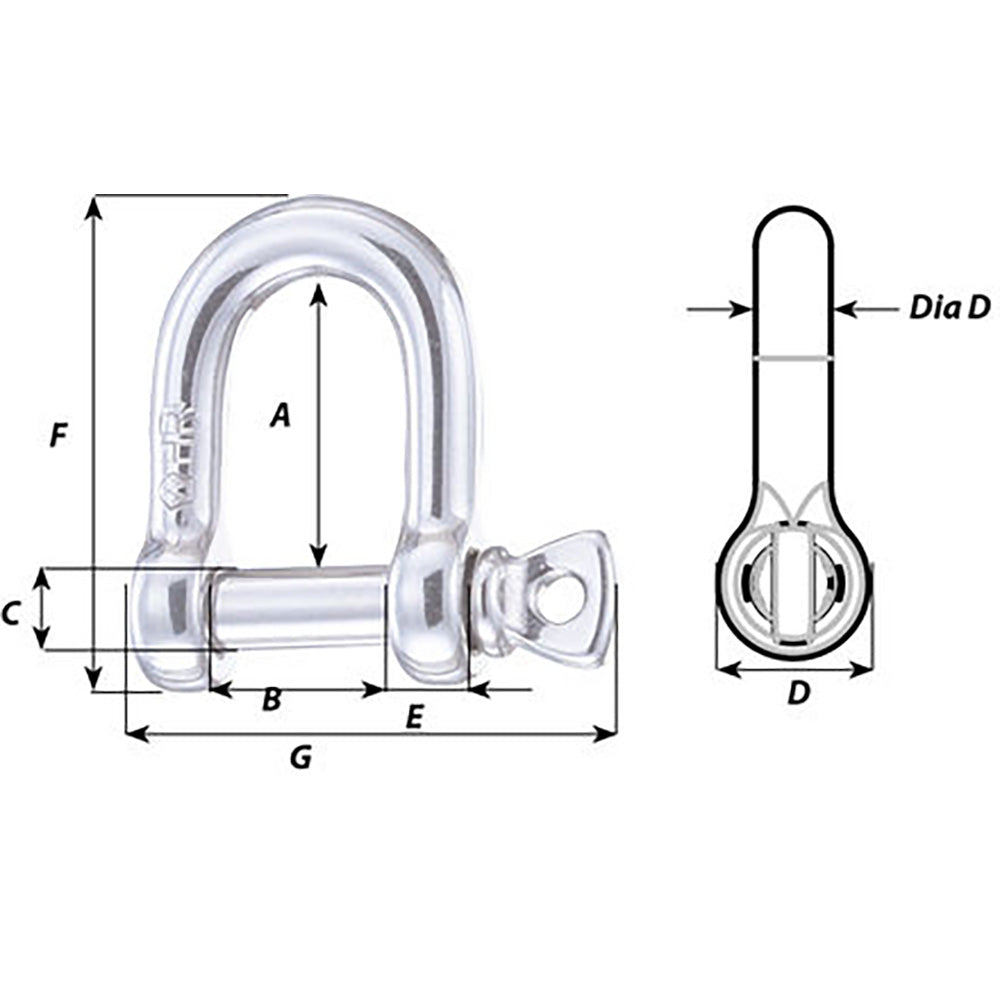

Dimensions:

  • A: (inch) 2 13/64" / (mm) 56
  • B: (inch) 1 17/64" / (mm) 32
  • D diameter: (inch) 5/8" / (mm) 16

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR D Shackle - 16mm Diameter - 5/8"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working... Read more

SKU: CWR-97707

1 in stock

$428.84$316.97

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Dec 31, 2025 15:00:00 -0500

    Description

    HR D Shackle - 16mm Diameter - 5/8"

    Features:

    • Forged D shackle in HR stainless steel grade (17,4 PH)
    • Outstanding working and breaking load
    • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking

    Applications:

    • Applications requesting high loads
    • Standard applications of the shackle
    • Attachment applications: blocks, head …
    • Do not use it for mooring applications

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 14990 / (kg) 6800
    • WLL: (lb) 8370 / (kg) 3800
    • Breaking load: (lb) 41880 / (kg) 19000
    • Weight: (lb) 1.023 / (g) 464

    Dimensions:

    • A: (inch) 2 13/64" / (mm) 56
    • B: (inch) 1 17/64" / (mm) 32
    • D diameter: (inch) 5/8" / (mm) 16

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
