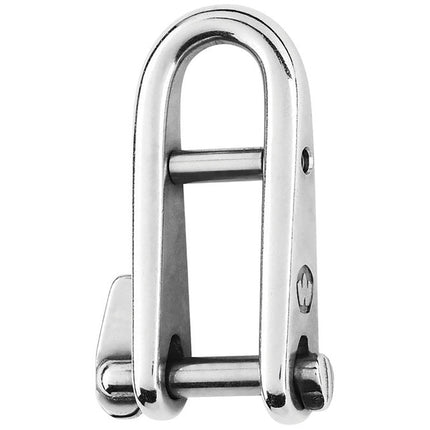

Wichard HR Key Pin Shackle With Bar - 8mm Pin Diameter [91434W]

Description

HR Key Pin Shackle With Bar - 8mm Pin Diameter

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Perfect product for halyards or applications requiring to opening/closing the shackle often
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2110 / (kg) 960
  • Breaking load: (lb) 7710 / (kg) 3500
  • Weight: (lb) 0.271 / (g) 123

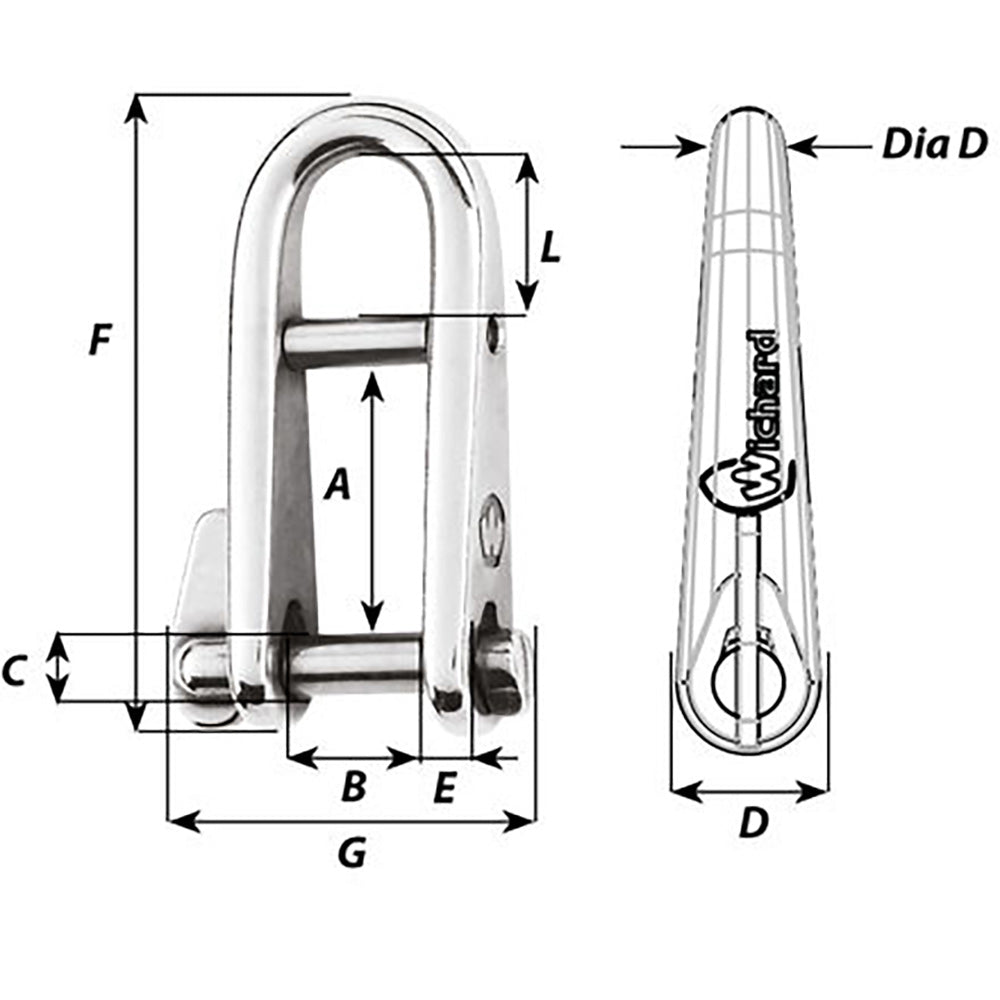

Dimensions:

  • A: (inch) 2 21/64" / (mm) 59
  • B: (inch) 53/64" / (mm) 21
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 43/64" / (mm) 17
  • E: (inch) 15/64" / (mm) 6
  • F: (inch) 3 7/64" / (mm) 79
  • G: (inch) 1 57/64" / (mm) 48
  • L: (inch) 25/32" / (mm) 20

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Key Pin Shackle With Bar - 8mm Pin DiameterFeatures:  Forged D shackle in HR stainless steel grade (17,4 PH)... Read more

SKU: CWR-97741

5 in stock

$142.87$121.44

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Key Pin Shackle With Bar - 8mm Pin Diameter

      Features:

      • Forged D shackle in HR stainless steel grade (17,4 PH)
      • Outstanding working and breaking load
      • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • Applications requesting high loads
      • Perfect product for halyards or applications requiring to opening/closing the shackle often
      • Do not use it for mooring applications

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 2110 / (kg) 960
      • Breaking load: (lb) 7710 / (kg) 3500
      • Weight: (lb) 0.271 / (g) 123

      Dimensions:

      • A: (inch) 2 21/64" / (mm) 59
      • B: (inch) 53/64" / (mm) 21
      • C: (inch) 5/16" / (mm) 8
      • D: (inch) 43/64" / (mm) 17
      • E: (inch) 15/64" / (mm) 6
      • F: (inch) 3 7/64" / (mm) 79
      • G: (inch) 1 57/64" / (mm) 48
      • L: (inch) 25/32" / (mm) 20

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
