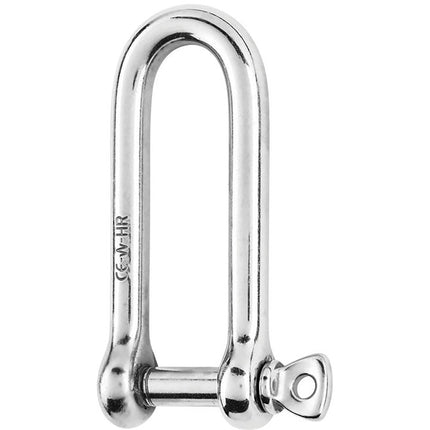

Wichard HR Long D Shackle - 10mm Diameter - 25/64" [11215W]

Description

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

  • Forged long shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5820 / (kg) 2640
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.362 / (g) 164

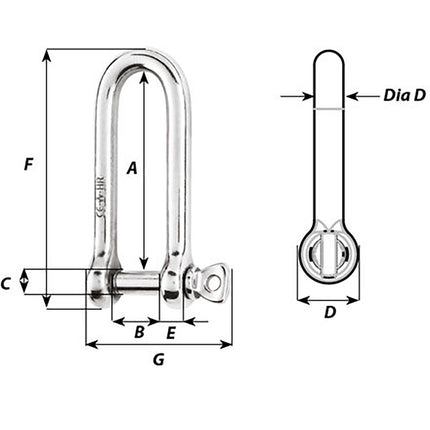

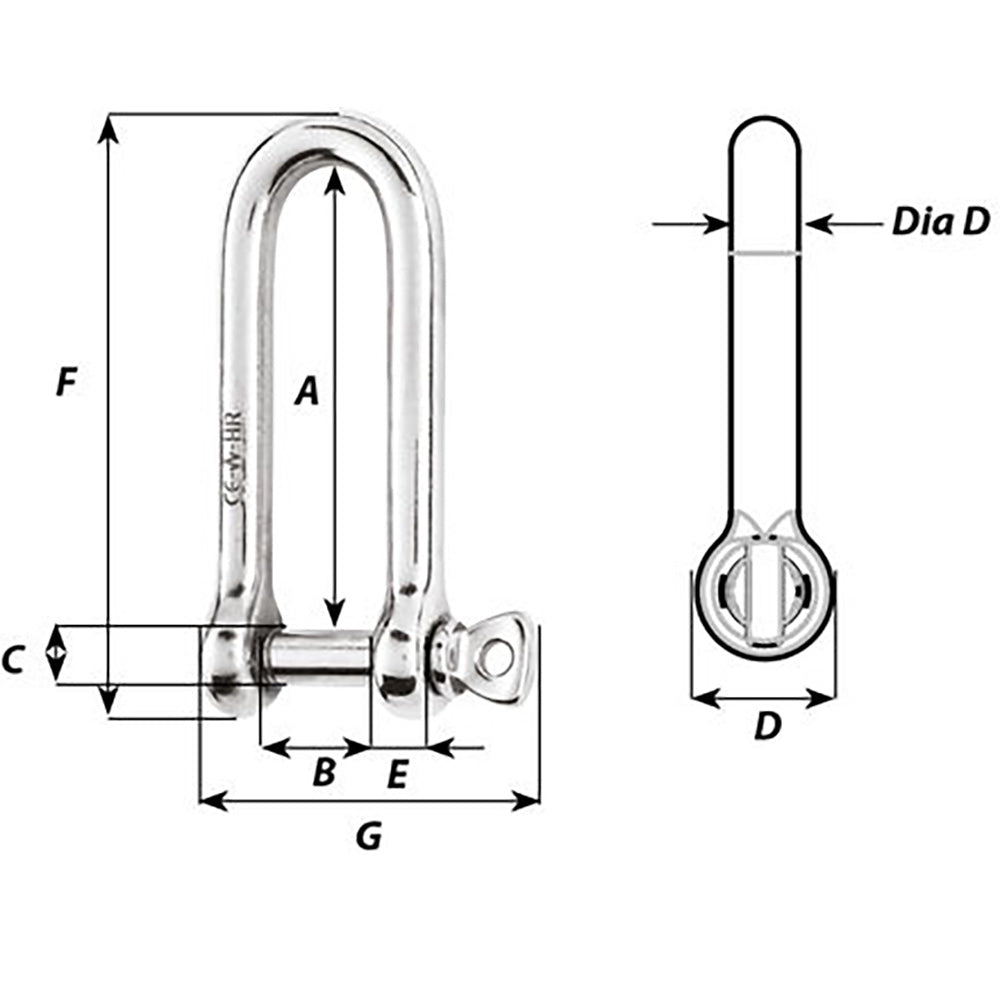

Dimensions:

  • A: (inch) 3 5/64" / (mm) 78
  • B: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Long D Shackle - 10mm Diameter - 25/64"Features: Forged long shackle in HR stainless steel grade (17,4 PH) Outstanding... Read more

SKU: CWR-97709
Barcode: 358779011216

3 in stock

$181.00$153.85

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Long D Shackle - 10mm Diameter - 25/64"

      Features:

      • Forged long shackle in HR stainless steel grade (17,4 PH)
      • Outstanding working and breaking load
      • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • Applications requesting high loads
      • Standard applications of the shackle
      • Attachment applications: blocks, head …
      • Do not use it for mooring applications

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 5820 / (kg) 2640
      • WLL: (lb) 2640 / (kg) 1200
      • Breaking load: (lb) 13220 / (kg) 6000
      • Weight: (lb) 0.362 / (g) 164

      Dimensions:

      • A: (inch) 3 5/64" / (mm) 78
      • B: (inch) 25/32" / (mm) 20
      • D diameter: (inch) 25/64" / (mm) 10

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
