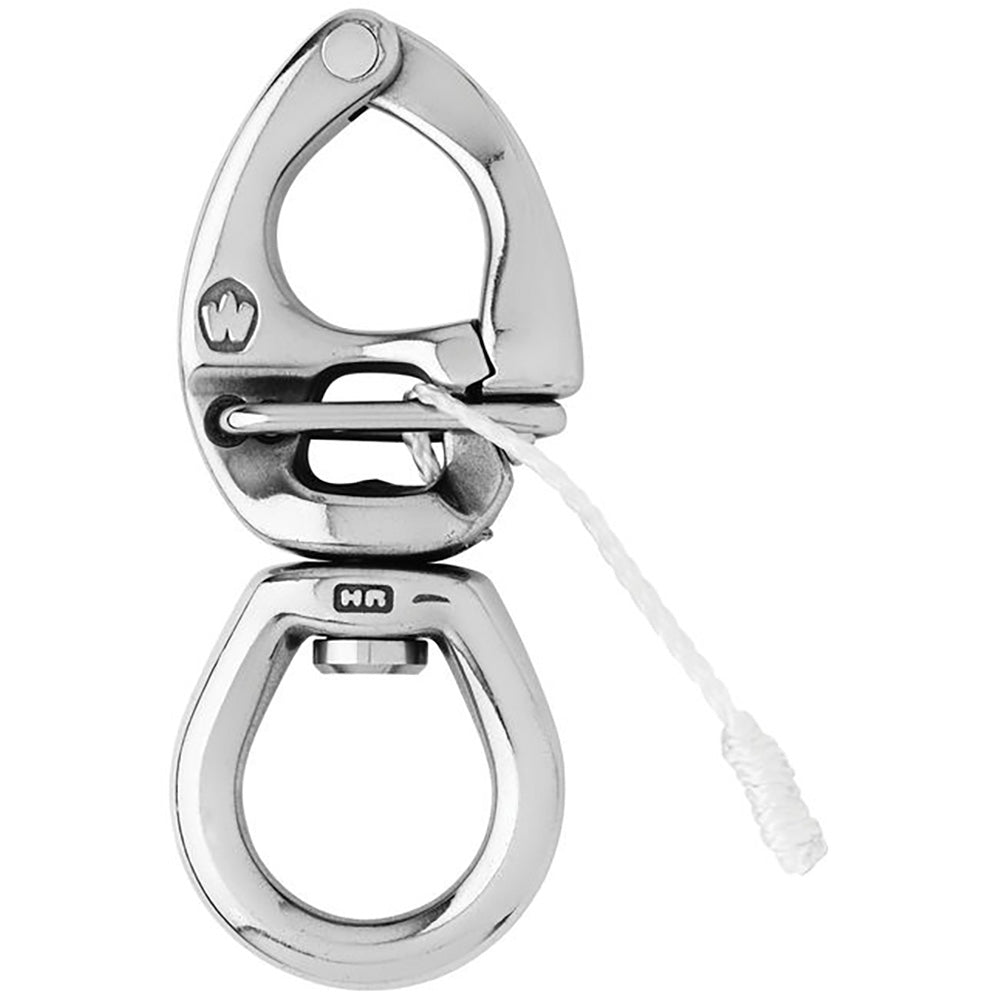

Wichard HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64" [2775W]

Description

HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 6610 / (kg) 3000
  • Weight: (lb) 0.353 / (g) 160

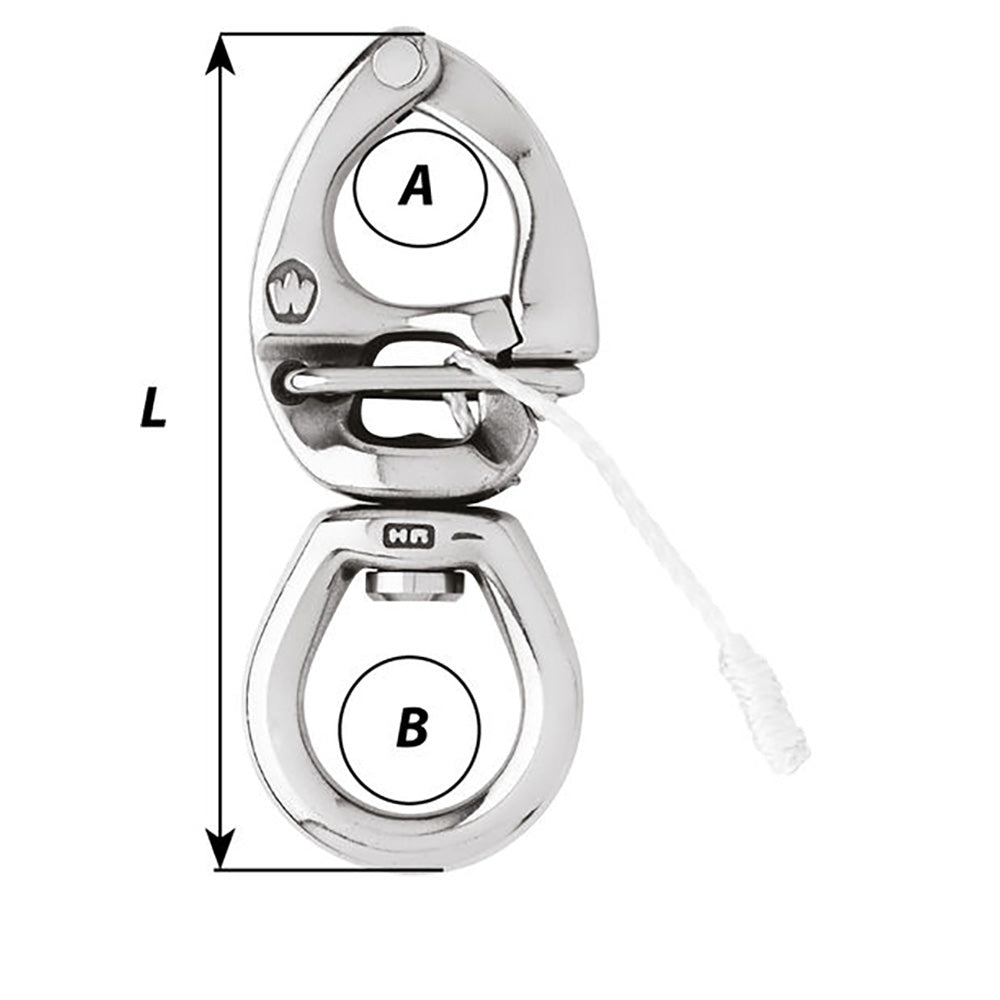

Dimensions:

  • A: (inch) 25/32" / (mm) 20
  • B: (inch) 1 3/64" / (mm) 26.5
  • Length: (inch) 4 21/64" / (mm) 110

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
