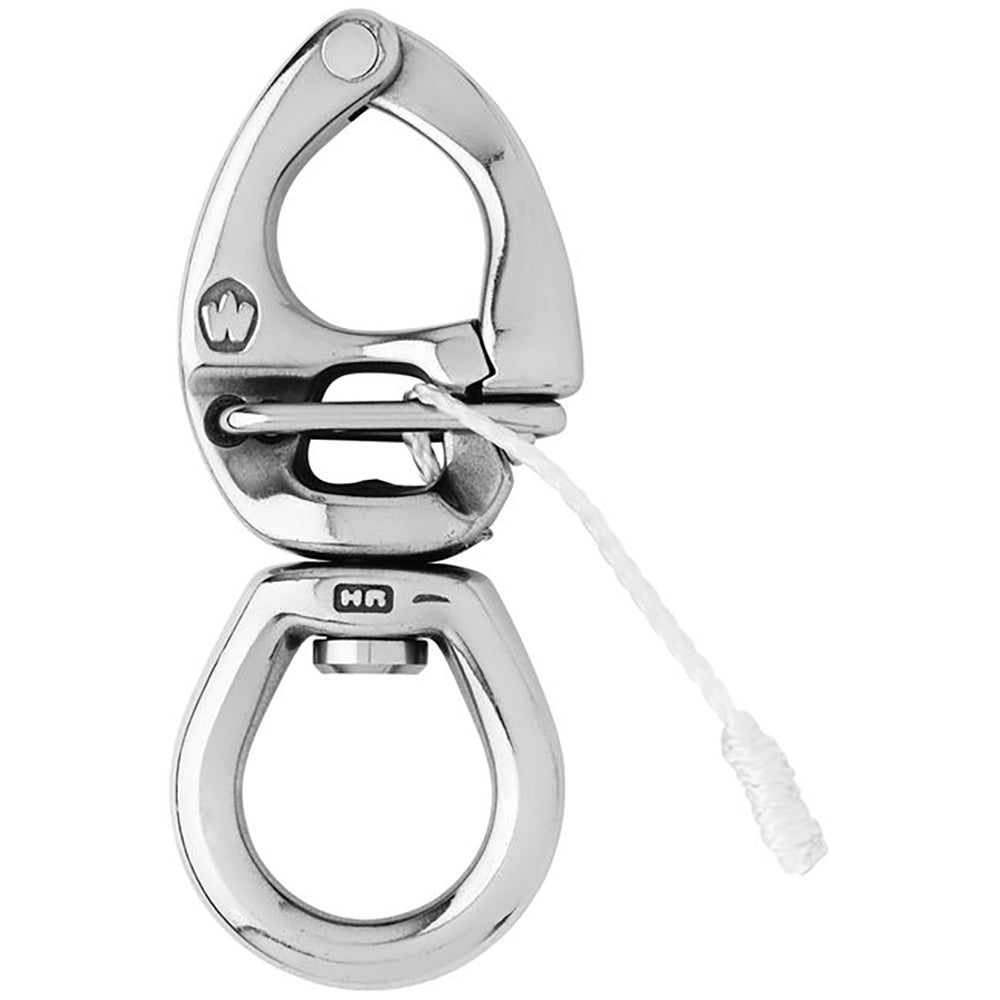

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [2777W]

Description

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 6170 / (kg) 2800
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.873 / (g) 396

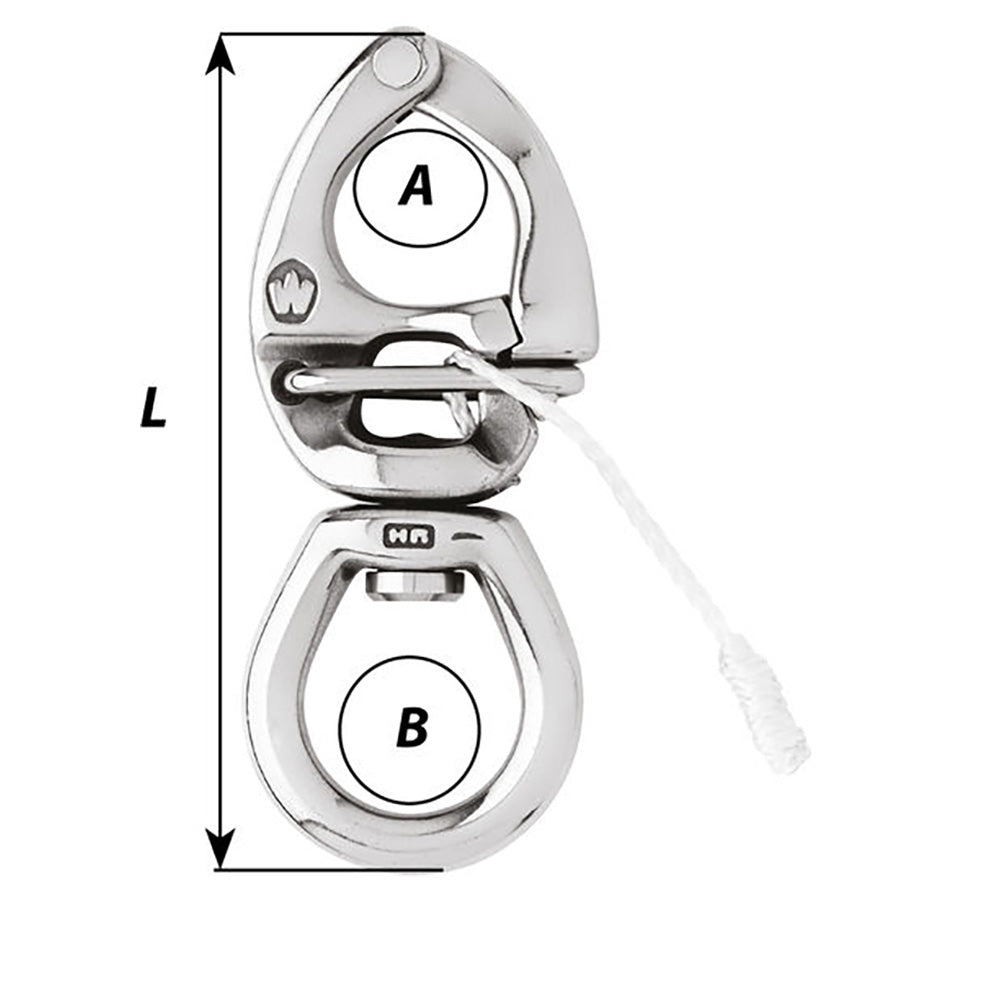

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 1 25/64" / (mm) 35.5
  • Length: (inch) 5 45/64" / (mm) 145

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with... Read more

SKU: CWR-97666

6 in stock

$507.27$431.18

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

      Features:

      • HR forged (17.4 PH) quick-release snap shackle with large bail
      • The opening is made by pulling the lanyard
      • Perfect to attach several lines (spinnaker sheets...)
      • Outstanding working and breaking loads
      • Free rotation of the snap shackle thanks to the swivel

      Applications:

      • For spinnaker operations
      • Perfect to attach several lines: spinnaker sheets...

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 6170 / (kg) 2800
      • Breaking load: (lb) 13880 / (kg) 6300
      • Weight: (lb) 0.873 / (g) 396

      Dimensions:

      • A: (inch) 1 3/16" / (mm) 30
      • B: (inch) 1 25/64" / (mm) 35.5
      • Length: (inch) 5 45/64" / (mm) 145

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
