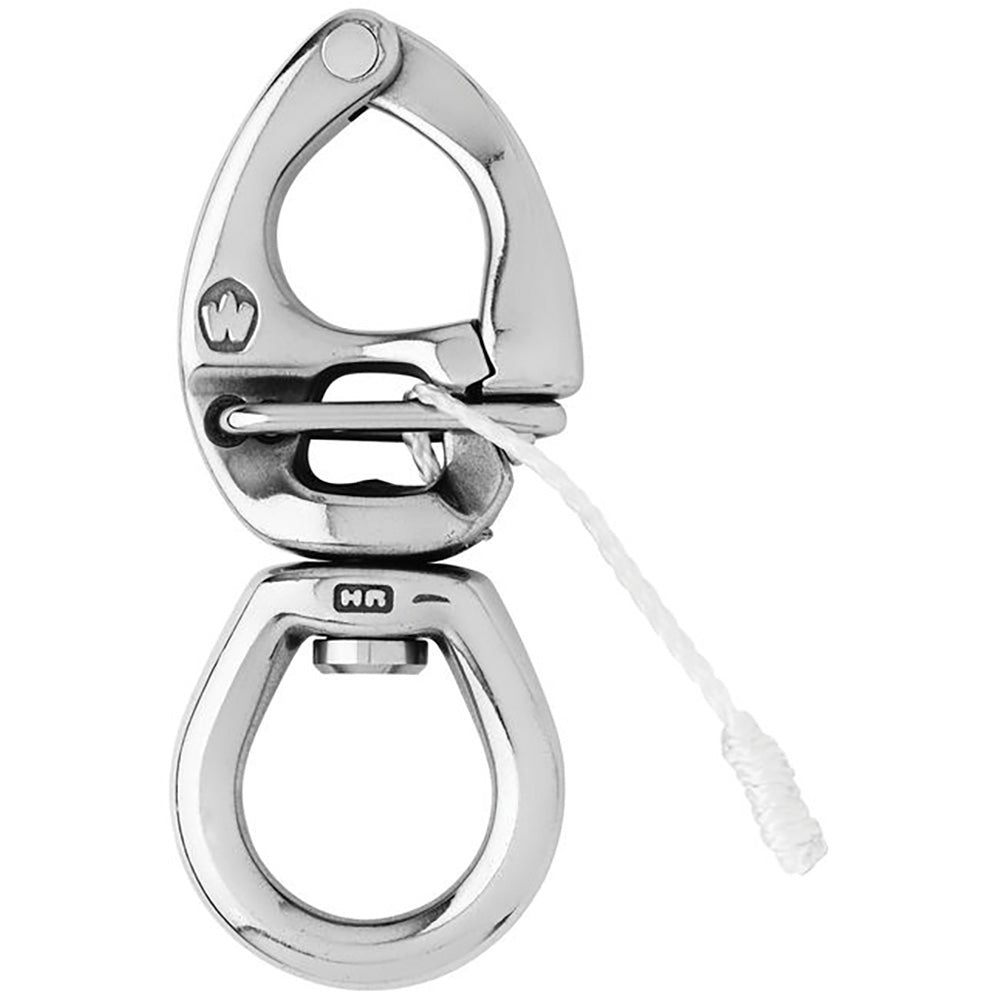

Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32" [02773]

Description

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1940 / (kg) 880
  • Breaking load: (lb) 2860 / (kg) 1300
  • Weight: (lb) 0.119 / (g) 54

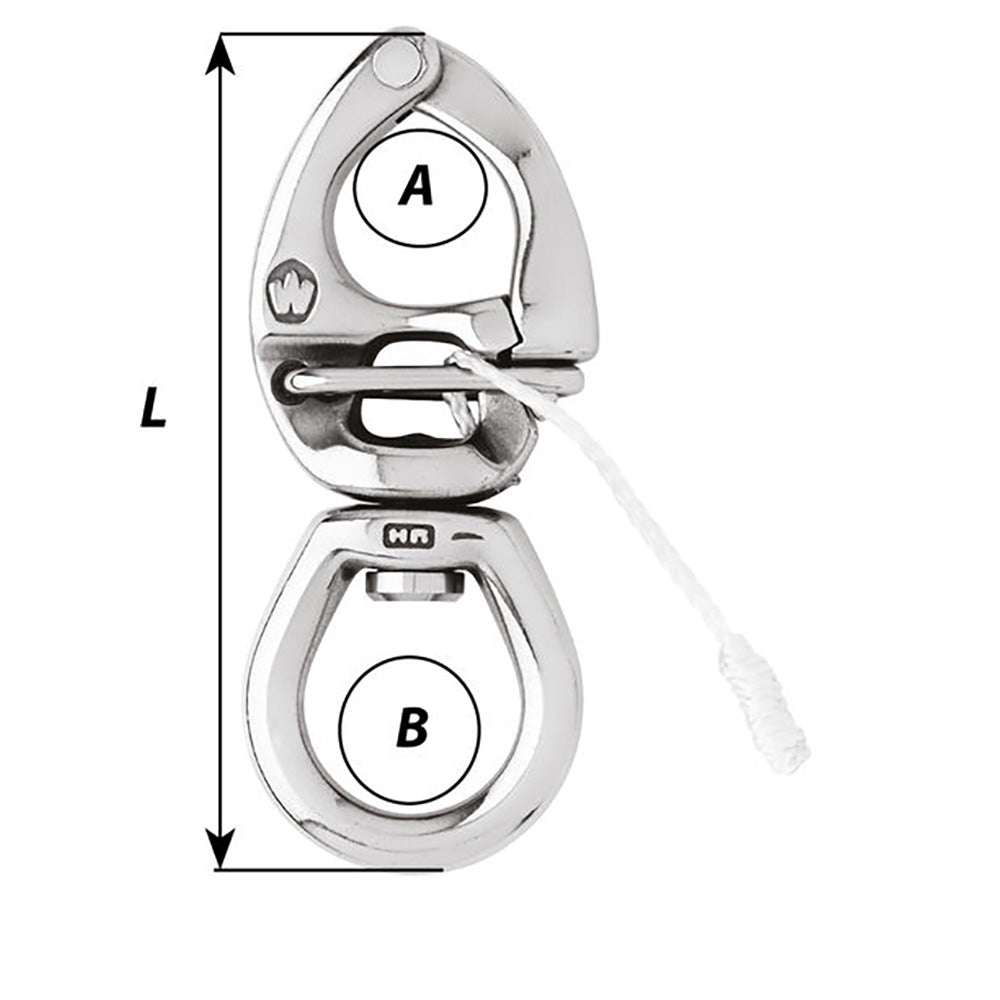

Dimensions:

  • A: (inch) 35/64" / (mm) 14
  • B: (inch) 3/4" / (mm) 19
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle... Read more

SKU: CWR-97663
Barcode: 768536026641

$166.00$122.70

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

      Features:

      • HR forged (17.4 PH) quick-release snap shackle with large bail
      • The opening is made by pulling the lanyard
      • Perfect to attach several lines (spinnaker sheets...)
      • Outstanding working and breaking loads
      • Free rotation of the snap shackle thanks to the swivel

      Applications:

      • For spinnaker operations
      • Perfect to attach several lines: spinnaker sheets...

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 1940 / (kg) 880
      • Breaking load: (lb) 2860 / (kg) 1300
      • Weight: (lb) 0.119 / (g) 54

      Dimensions:

      • A: (inch) 35/64" / (mm) 14
      • B: (inch) 3/4" / (mm) 19
      • Length: (inch) 3 5/32" / (mm) 80

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
