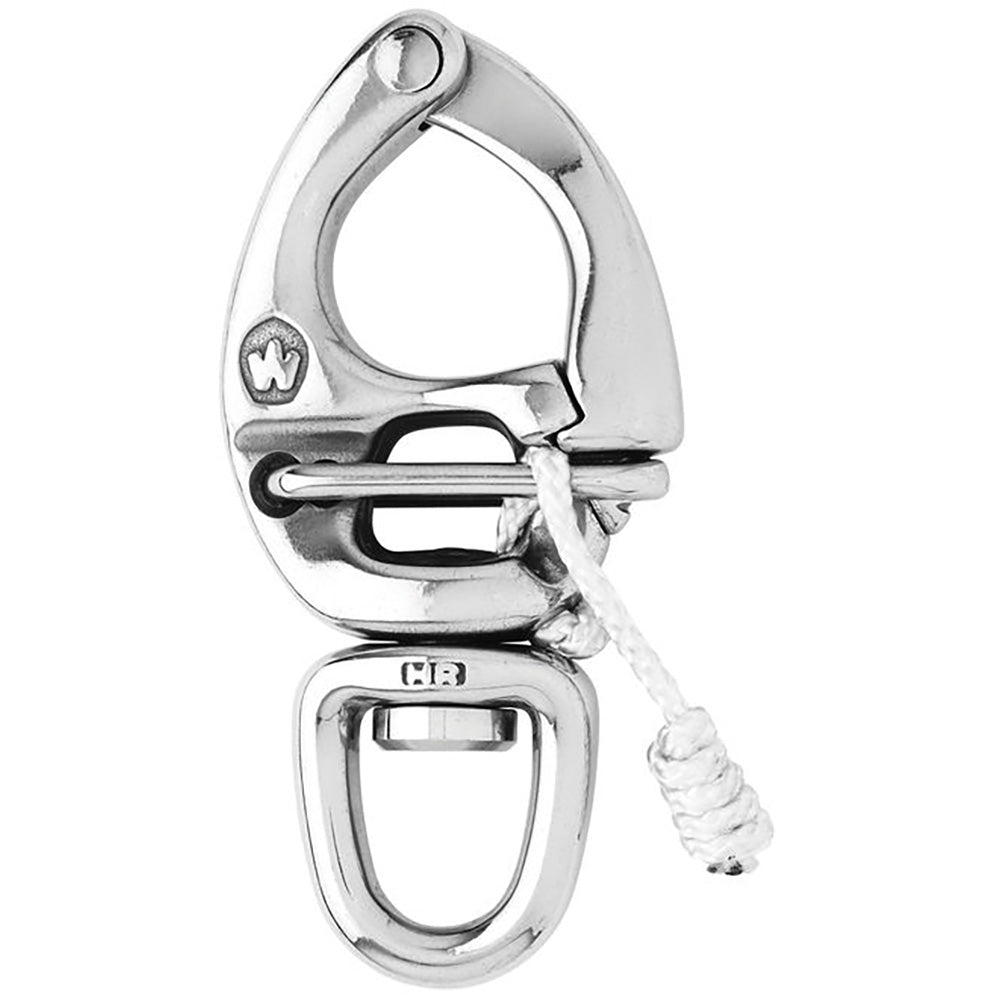

Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8" [02677]

Description

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 7050 / (kg) 3200
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.818 / (g) 371

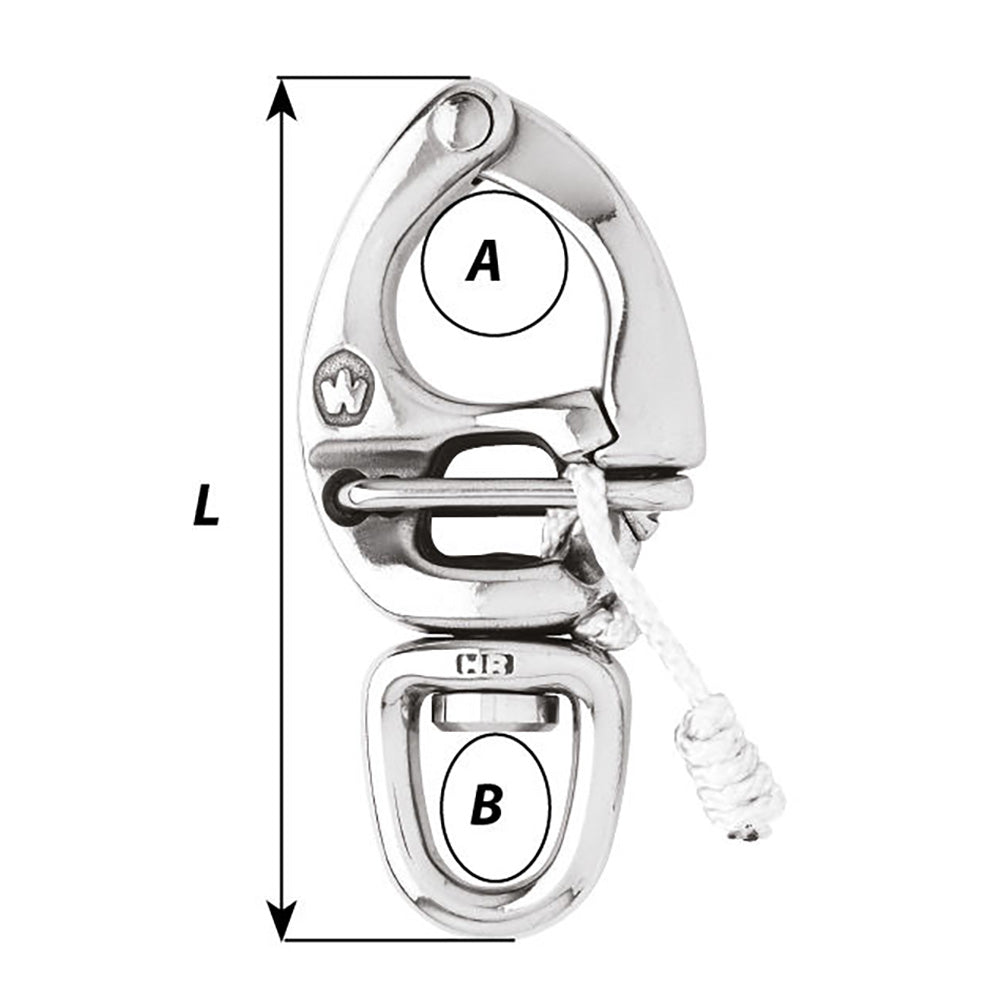

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 25/32" / (mm) 20
  • Length: (inch) 5 1/8" / (mm) 130

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"Features: HR forged (17.4 PH) quick-release snap shackle... Read more

SKU: CWR-97661
Barcode: 3587790026771

$467.30$345.40

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

      Features:

      • HR forged (17.4 PH) quick-release snap shackle with swivel eye
      • The opening is made by pulling the lanyard
      • Perfect to attach one sheet or halyard
      • Outstanding working and breaking loads
      • Free rotation of the snap shackle thanks to the swivel

      Applications:

      • For spinnaker operations
      • Perfect for spinnaker sheets and halyards

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 7050 / (kg) 3200
      • Breaking load: (lb) 13880 / (kg) 6300
      • Weight: (lb) 0.818 / (g) 371

      Dimensions:

      • A: (inch) 1 3/16" / (mm) 30
      • B: (inch) 25/32" / (mm) 20
      • Length: (inch) 5 1/8" / (mm) 130

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
