Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16" [02376]

Description

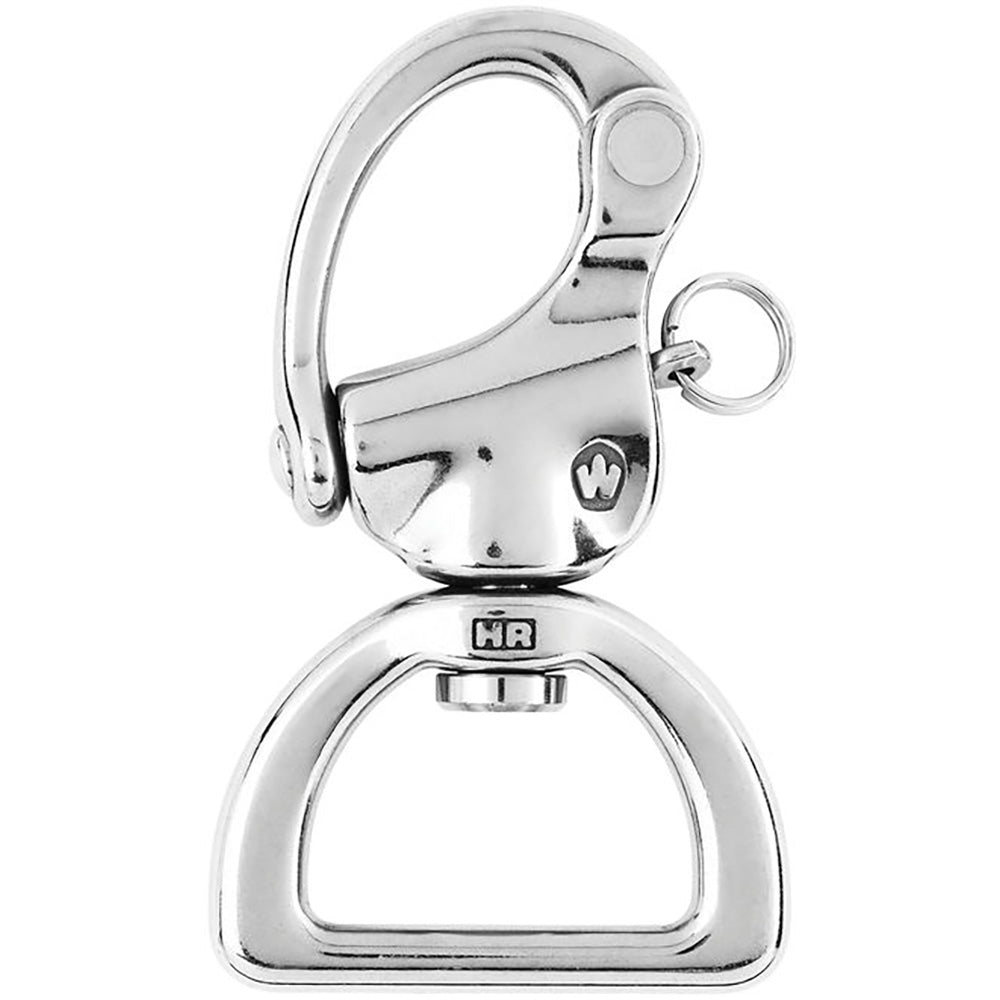

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
  • Its flat design allows attaching a webbing
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 8480 / (kg) 3850

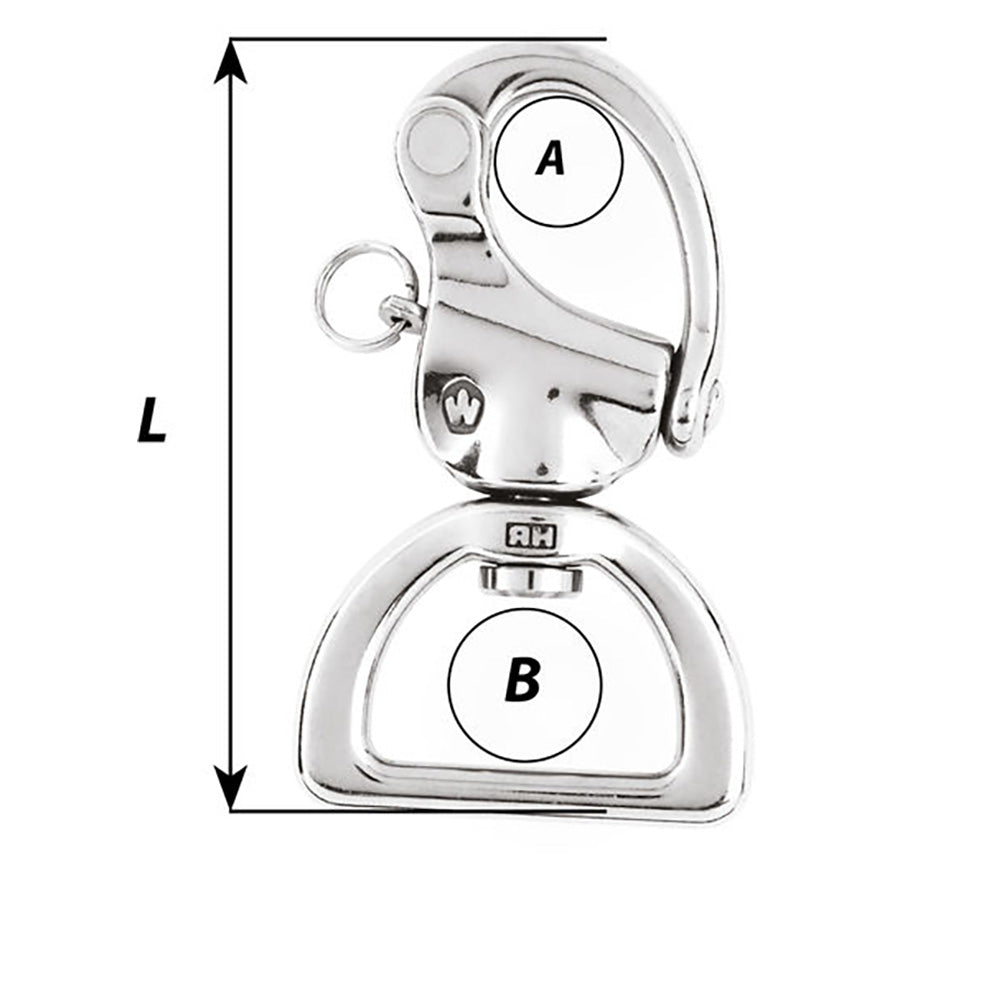

Dimensions:

  • A: (inch) 53/64" / (mm) 21
  • B: (inch) 1 37/64" / (mm) 40
  • Length: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.  WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing... Read more

SKU: CWR-97654
Barcode: 768536023763

$195.21$144.29

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Oct 06, 2025 15:00:00 -0400

    Description

    HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

    Features:

    • HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
    • Its flat design allows attaching a webbing
    • Free rotation of the snap shackle thanks to the swivel eye
    • The plunger pin is set captive into the hook and cannot become detached
    • Excellent working and breaking loads
    • Easy to open by pulling the plunger pin (possible to attach a lanyard)

    Applications:

    • Snap shackle applications
    • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

    Specifications:

    • Materials: HR 17.4 PH stainless steel grade
    • Working load: (lb) 2820 / (kg) 1280
    • Breaking load: (lb) 8480 / (kg) 3850

    Dimensions:

    • A: (inch) 53/64" / (mm) 21
    • B: (inch) 1 37/64" / (mm) 40
    • Length: (inch) 3 15/16" / (mm) 100

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.  WLL = Breaking load / 5
    • High Resistance (HR)

    *Sold as an Individual


    Quick Guide (pdf)
