Wichard HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64" [02495]

Description

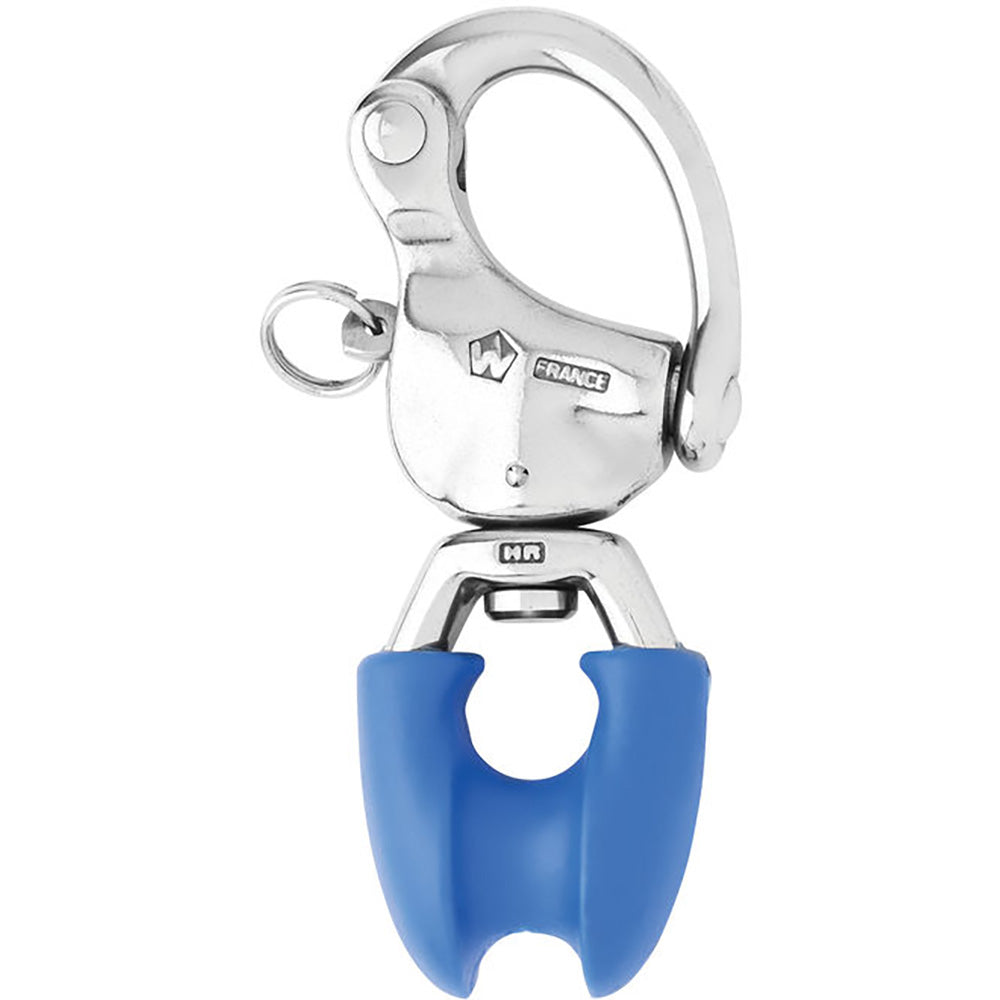

HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
  • Allows to splice the halyard directly onto the snap shackle (without using a thimble)
  • Avoids the wear of the ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications
  • Allows to splice the halyard
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 5290 / (kg) 2400

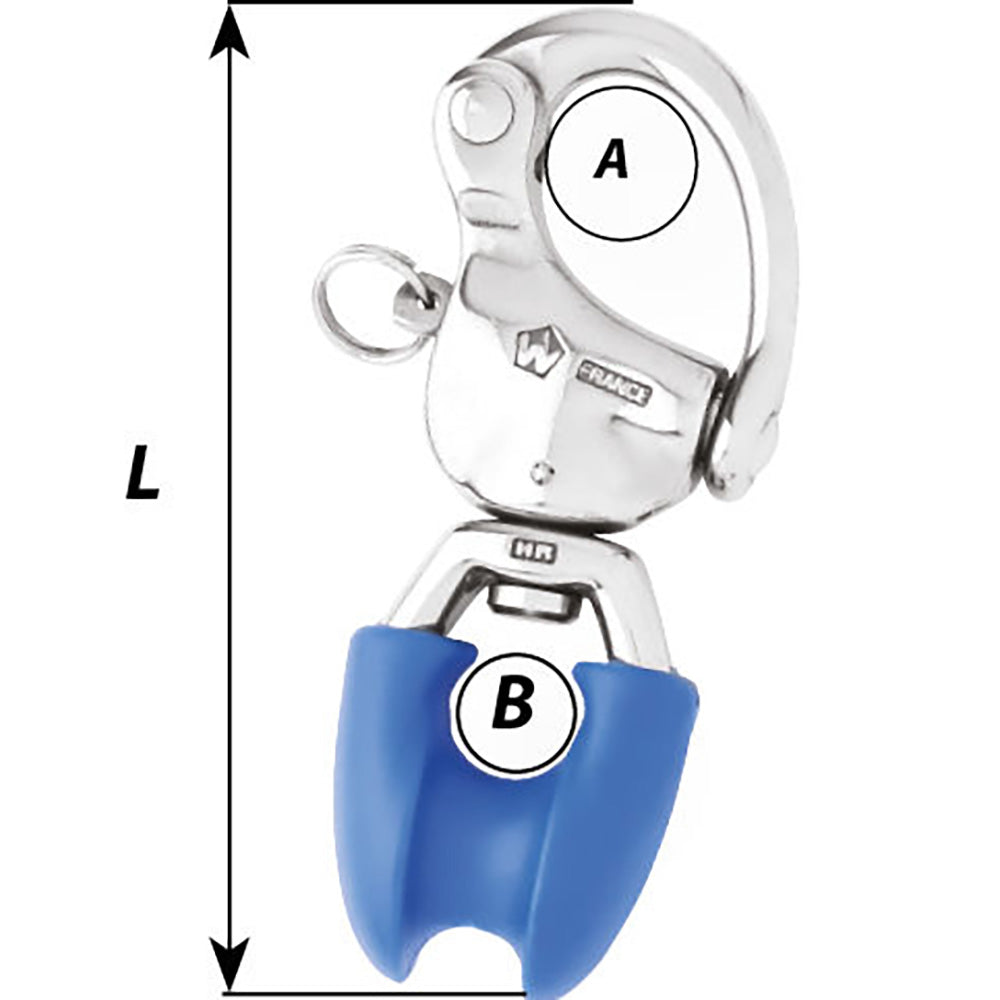

Dimensions:

  • A: (inch) 53/64" / (mm) 110
  • B: (inch) 35/64" / (mm) 21
  • Length: (inch) 4 21/64" / (mm) 14

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel)... Read more

SKU: CWR-97657
Barcode: 3587790024951

$156.23$115.47

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

      Features:

      • HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
      • Allows to splice the halyard directly onto the snap shackle (without using a thimble)
      • Avoids the wear of the ropes
      • Free rotation of the snap shackle thanks to the swivel eye
      • The plunger pin is set captive into the hook and cannot become detached
      • Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

      Applications:

      • Snap shackle applications
      • Allows to splice the halyard
      • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 2820 / (kg) 1280
      • Breaking load: (lb) 5290 / (kg) 2400

      Dimensions:

      • A: (inch) 53/64" / (mm) 110
      • B: (inch) 35/64" / (mm) 21
      • Length: (inch) 4 21/64" / (mm) 14

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
