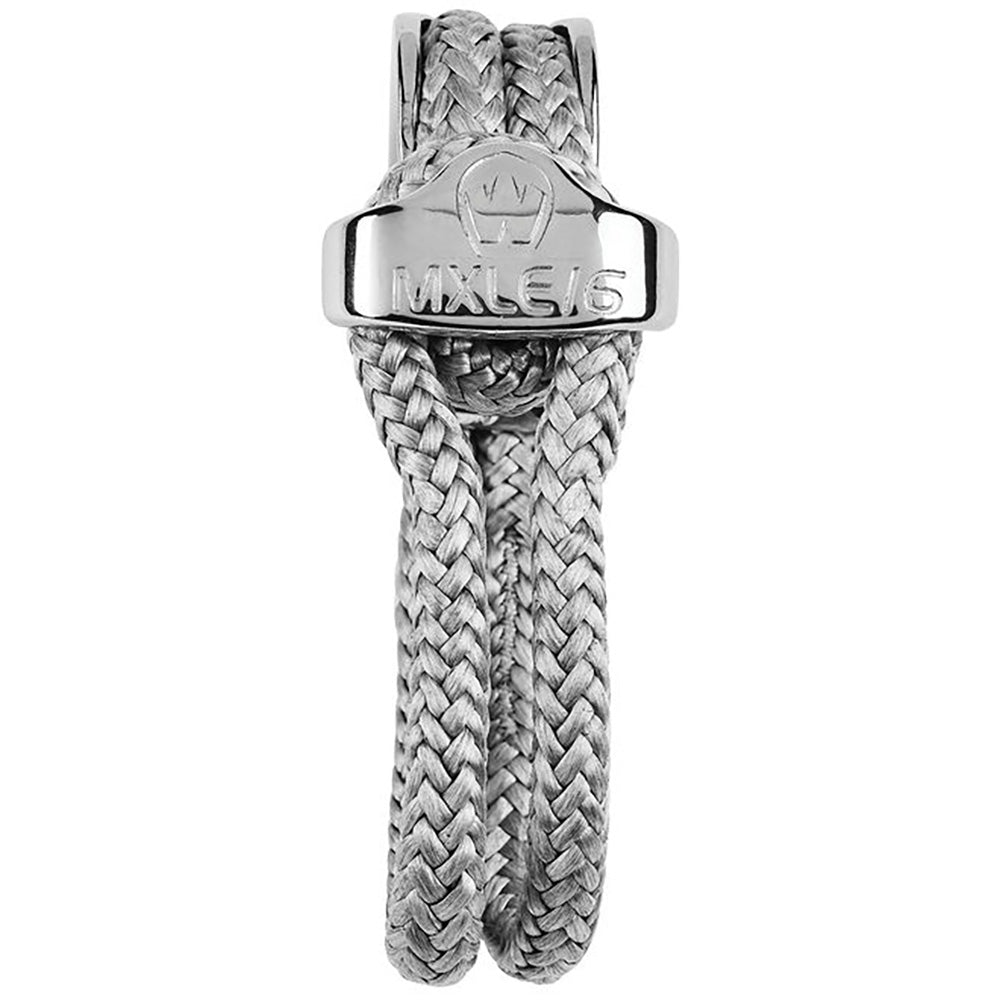

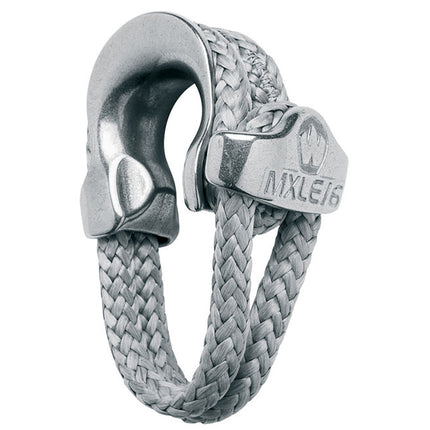

Wichard MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16" [21106]

Description

MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"

Features:

  • MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes
  • Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any type of anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system
  • The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market
  • Heavy load applications: The MXLEvo is designed to be used with heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc.
  • Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 16 is: twice as robust, half the weight, a 35% lighter rope with a stronger breaking load
  • A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is highly reliable and requires no maintenance
  • Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily flexible to your deck and to whatever anchoring point or chain plate alignment you choose

Applications:

  • Mast foot block
  • Halyard block
  • Barber hauler
  • Purchase
  • Tackle
  • Sheet return
  • Mainsail outhaul
  • Snatch block (in that case it is recommended to use an 8 mm rope size)

Specifications:

  • Materials: Duplex stainless steel grade S78 Dyneema
  • Rope size: (inch) 11/16" / (mm) 16

Dimensions:

  • Length: (inch) 1 27/32" / (mm) 47
  • Width: (inch) 2 23/64" / (mm) 60
  • Thickness: (inch) 1 39/64" / (mm) 41
  • Loop diameter: (inch) 15/64" / (mm) 6
  • Loop length: (inch) 10 5/8" / (mm) 270
  • Working load: (lb) 5510 / (kg) 2500
  • Breaking load: (lb) 11020 / (kg) 5000
  • Weight: (lb) 0.309 / (g) 140

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"Features:  MXLEvo: A soft block solution designed for all yachtsmen,... Read more

SKU: CWR-97719
Barcode: 3587790211061

$214.62$173.74

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      MXLEvo 16 - Soft Block - 16mm Rope Size - 11/16"

      Features:

      • MXLEvo: A soft block solution designed for all yachtsmen, amateur or pro. Designed for heavy-load applications, this system is available in three sizes
      • Economical and easy to use: Delivered complete with a Dyneema SK78 loop, you don't need any specific technical knowledge to use the MXLEvo. It can be installed quickly and easily on any type of anchoring (chain plate, head ropes, etc.). The rope housing keeps the ropes inside the block when there is no load on the system
      • The MXLEvo offers excellent value for money. It is one of the cheapest soft blocks on the market
      • Heavy load applications: The MXLEvo is designed to be used with heavier loads (low rope movement speed). As such, it is the perfect solution for use as a mast foot block, halyard tackle, barber hauler, block and tackle, sheet return, large sail, foot, etc.
      • Lightweight, robust, and highly compact, the MXLEvo provides exceptional resistance for its weight. In comparison with a standard competitor's block, The MXLEvo 16 is: twice as robust, half the weight, a 35% lighter rope with a stronger breaking load
      • A reliable solution with no need for maintenance: As it does not contain any moving parts (such as a sheave), the MXLEvo is highly reliable and requires no maintenance
      • Adaptable to your deck plan: The loop on the MXLEvo can be positioned in one of two ways, making it easily flexible to your deck and to whatever anchoring point or chain plate alignment you choose

      Applications:

      • Mast foot block
      • Halyard block
      • Barber hauler
      • Purchase
      • Tackle
      • Sheet return
      • Mainsail outhaul
      • Snatch block (in that case it is recommended to use an 8 mm rope size)

      Specifications:

      • Materials: Duplex stainless steel grade S78 Dyneema
      • Rope size: (inch) 11/16" / (mm) 16

      Dimensions:

      • Length: (inch) 1 27/32" / (mm) 47
      • Width: (inch) 2 23/64" / (mm) 60
      • Thickness: (inch) 1 39/64" / (mm) 41
      • Loop diameter: (inch) 15/64" / (mm) 6
      • Loop length: (inch) 10 5/8" / (mm) 270
      • Working load: (lb) 5510 / (kg) 2500
      • Breaking load: (lb) 11020 / (kg) 5000
      • Weight: (lb) 0.309 / (g) 140

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
