Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32" [01248]

Description

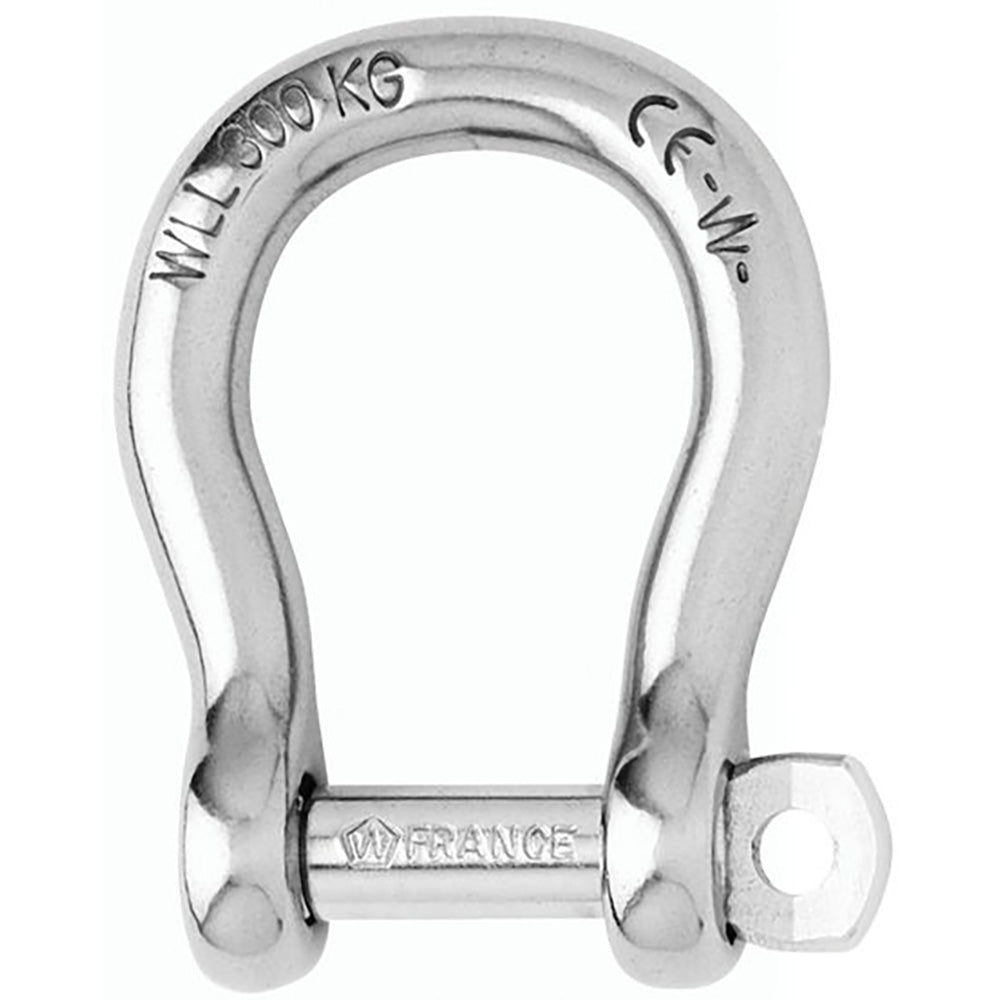

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Features:

  • Bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part # 01248 is not self-locking

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 9920 / (kg) 4500
  • WLL: (lb) 6610 / (kg) 3000
  • Breaking load: (lb) 33060 / (kg) 15000
  • Weight: (lb) 2.328 / (kg) 1.056

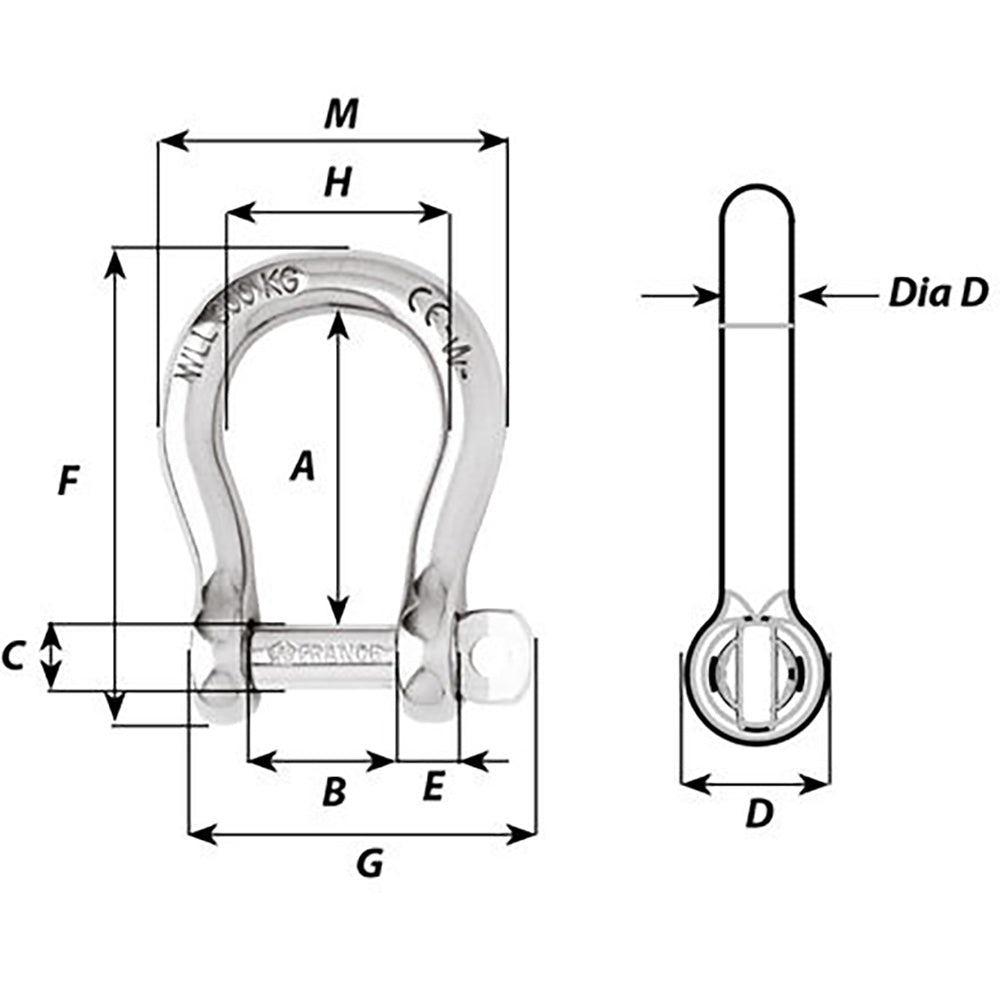

Dimensions:

  • A: (inch) 3 5/32" / (mm) 80
  • B: (inch) 1 37/64" / (mm) 40
  • C: (inch) 25/32" / (mm) 20
  • D: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 25/32" / (mm) 20
  • E: (inch) 45/64" / (mm) 18
  • M: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"Features:  Bow shackle forged in grade 316L stainless steel The pin is... Read more

SKU: CWR-97634
Barcode: 768536012484

$501.11$370.39

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

      Features:

      • Bow shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking
      • Part # 01248 is not self-locking

      Applications:

      • To be used when ample room is required
      • Possibility to attach several lines or cables

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 9920 / (kg) 4500
      • WLL: (lb) 6610 / (kg) 3000
      • Breaking load: (lb) 33060 / (kg) 15000
      • Weight: (lb) 2.328 / (kg) 1.056

      Dimensions:

      • A: (inch) 3 5/32" / (mm) 80
      • B: (inch) 1 37/64" / (mm) 40
      • C: (inch) 25/32" / (mm) 20
      • D: (inch) 1 37/64" / (mm) 40
      • D diameter: (inch) 25/32" / (mm) 20
      • E: (inch) 45/64" / (mm) 18
      • M: (inch) 3 15/16" / (mm) 100

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
        WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
