Wichard Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4" [1343W]

Description

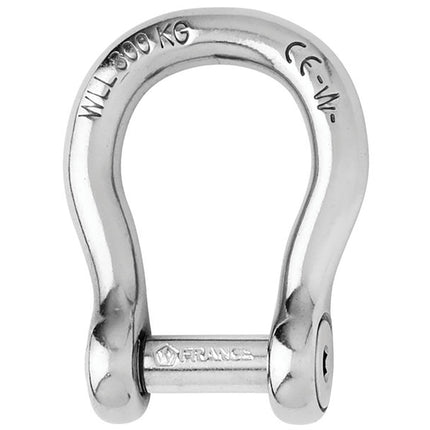

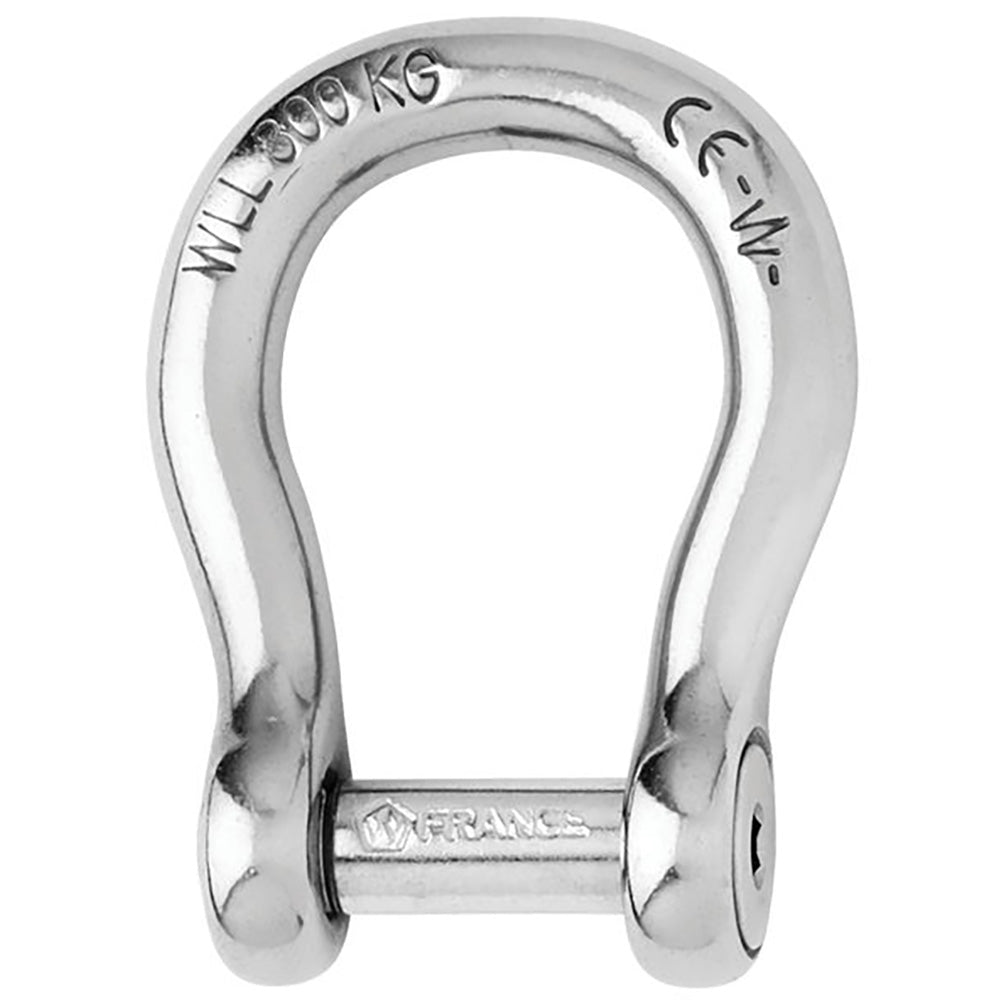

Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"

Features:

  • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)

Applications:

  • Ideal to link chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced
  • To be used when ample room is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 1320 / (kg) 600
  • WLL: (lb) 660 / (kg) 300
  • Breaking load: (lb) 3300 / (kg) 1500
  • Weight: (lb) 0.064 / (g) 29

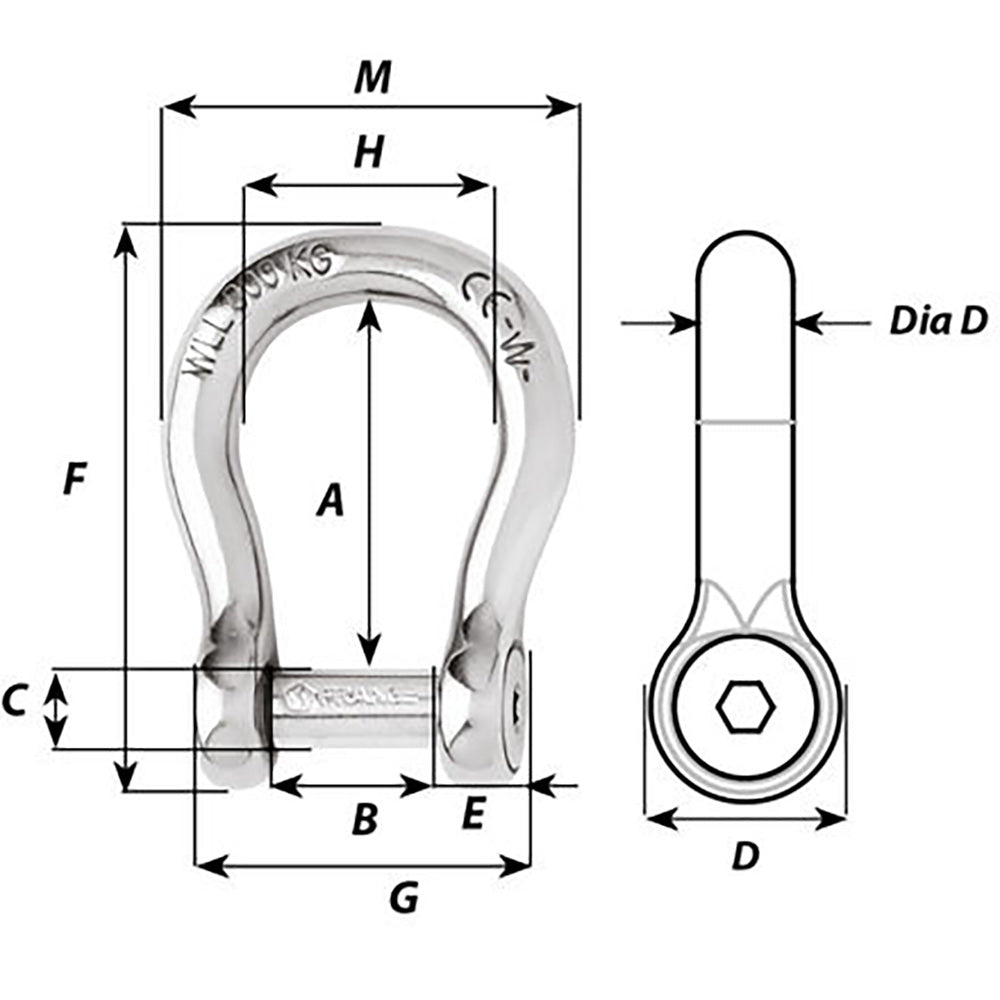

Dimensions:

  • A: (inch) 1 1/16" / (mm) 27
  • B: (inch) 15/32" / (mm) 12
  • C: (inch) 15/64" / (mm) 6
  • D: (inch) 15/32" / (mm) 12
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 13/64" / (mm) 5
  • F: (inch) 3/64" / (mm) 1
  • M: (inch) 1 17/64" / (mm) 32

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"Features: Self-locking twisted shackle with allen head pin forged in... Read more

SKU: CWR-97642
Barcode: 3587790013436

3 in stock

$45.69$38.84

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"

      Features:

      • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)

      Applications:

      • Ideal to link chains and anchor
      • On the halyard, avoids damaging the sails
      • To be used when the clutter is reduced
      • To be used when ample room is required

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 1320 / (kg) 600
      • WLL: (lb) 660 / (kg) 300
      • Breaking load: (lb) 3300 / (kg) 1500
      • Weight: (lb) 0.064 / (g) 29

      Dimensions:

      • A: (inch) 1 1/16" / (mm) 27
      • B: (inch) 15/32" / (mm) 12
      • C: (inch) 15/64" / (mm) 6
      • D: (inch) 15/32" / (mm) 12
      • D diameter: (inch) 15/64" / (mm) 6
      • E: (inch) 13/64" / (mm) 5
      • F: (inch) 3/64" / (mm) 1
      • M: (inch) 1 17/64" / (mm) 32

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
        WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
