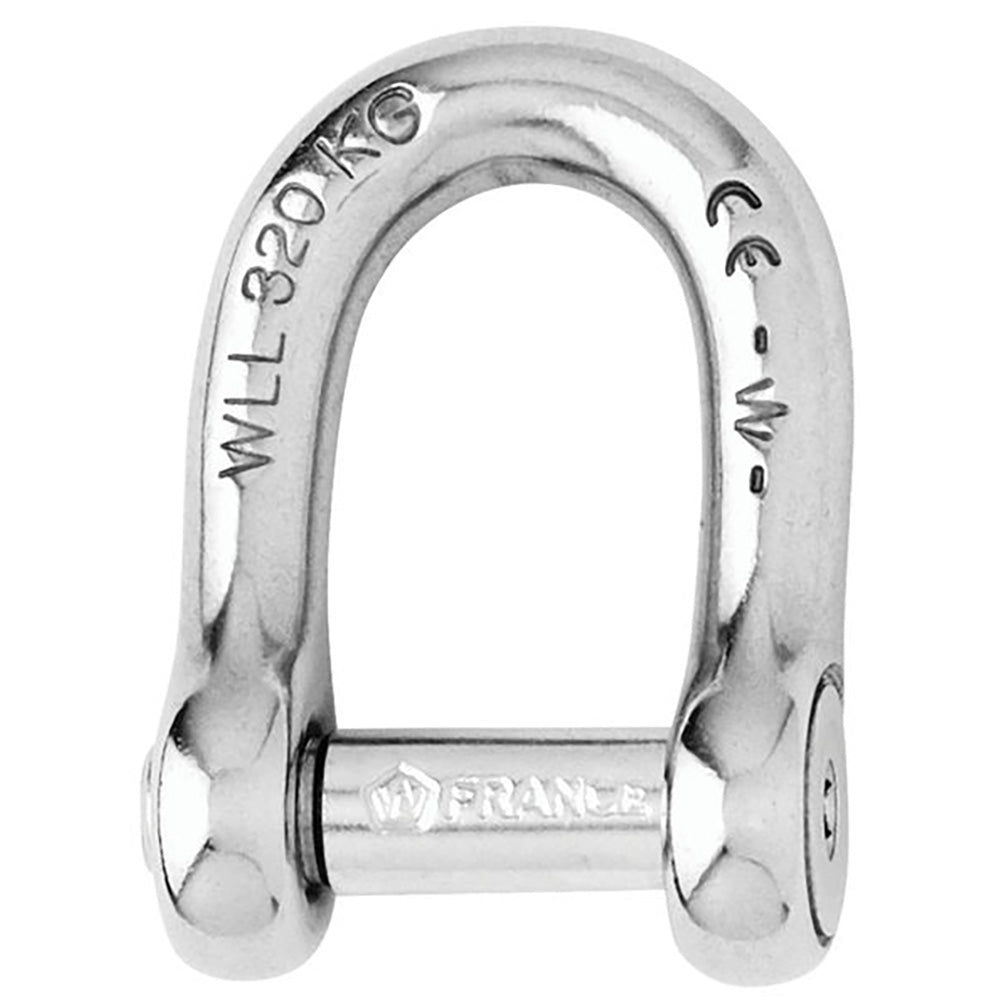

Wichard Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32" [1305W]

Description

Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"

Features:

  • Self-locking shackle with allen head pin D forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Ideal for linking chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3170 / (kg) 1440
  • WLL: (lb) 1890 / (kg) 860
  • Breaking load: (lb) 9470 / (kg) 4300
  • Weight: (lb) 0.218 / (g) 99

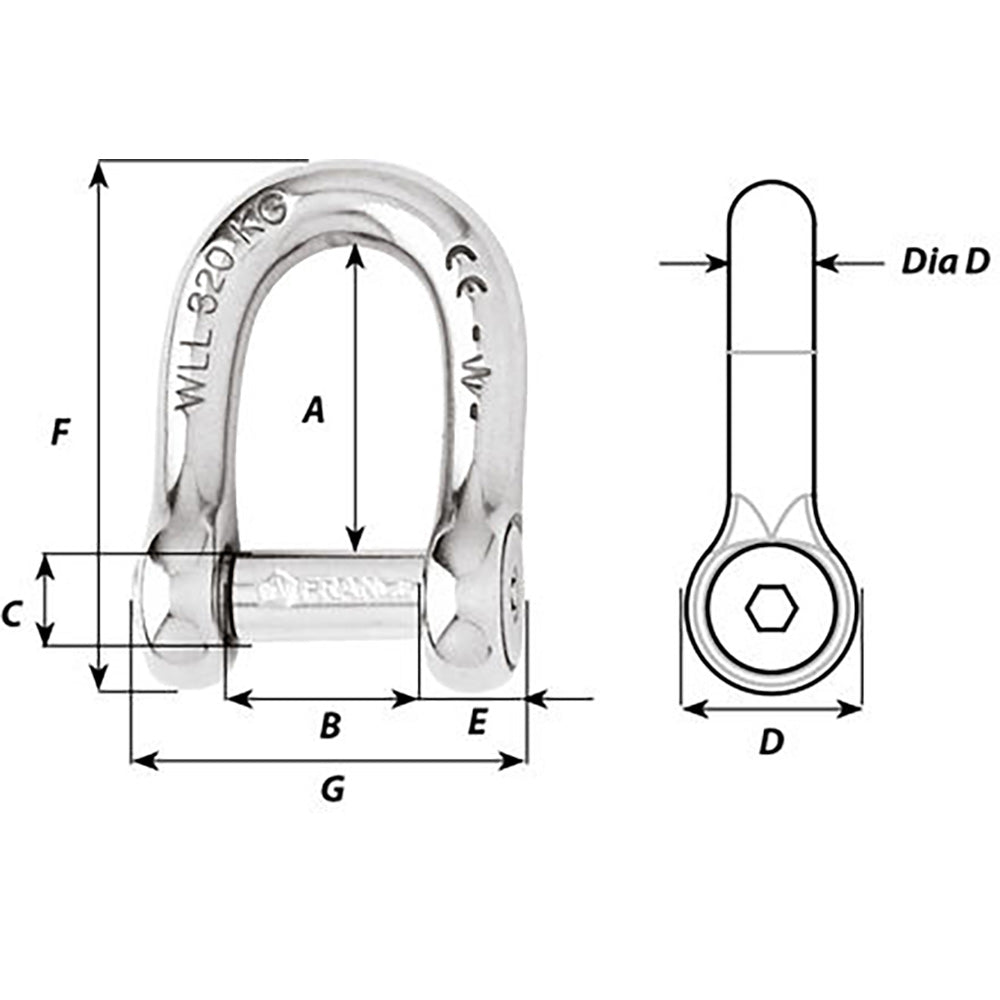

Dimensions:

  • A: (inch) 1 19/64" / (mm) 33
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 3/4" / (mm) 19
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 23/64" / (mm) 9
  • F: (inch) 2 1/4" / (mm) 57
  • G: (inch) 1 39/64" / (mm) 41

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"Features: Self-locking shackle with allen head pin D forged in... Read more

SKU: CWR-97640
Barcode: 3587790013054

3 in stock

$90.32$76.77
