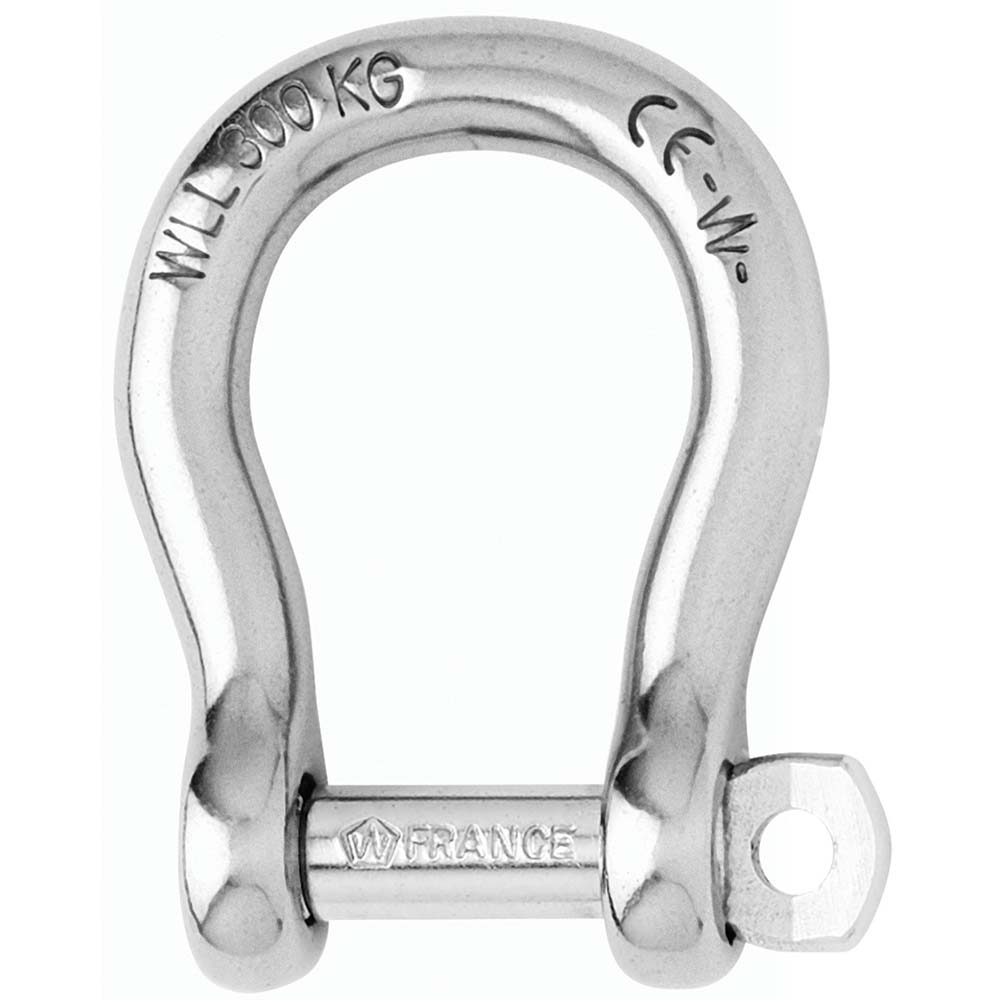

Wichard Self-Locking Bow Shackle - Diameter 10mm - 13/32" [01245]

Description

Self-Locking Bow Shackle - Diameter 10mm - 13/32"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • WLL (lb) 1890
  • Breaking load (lb) 9470
  • Weight (lb) 0.302

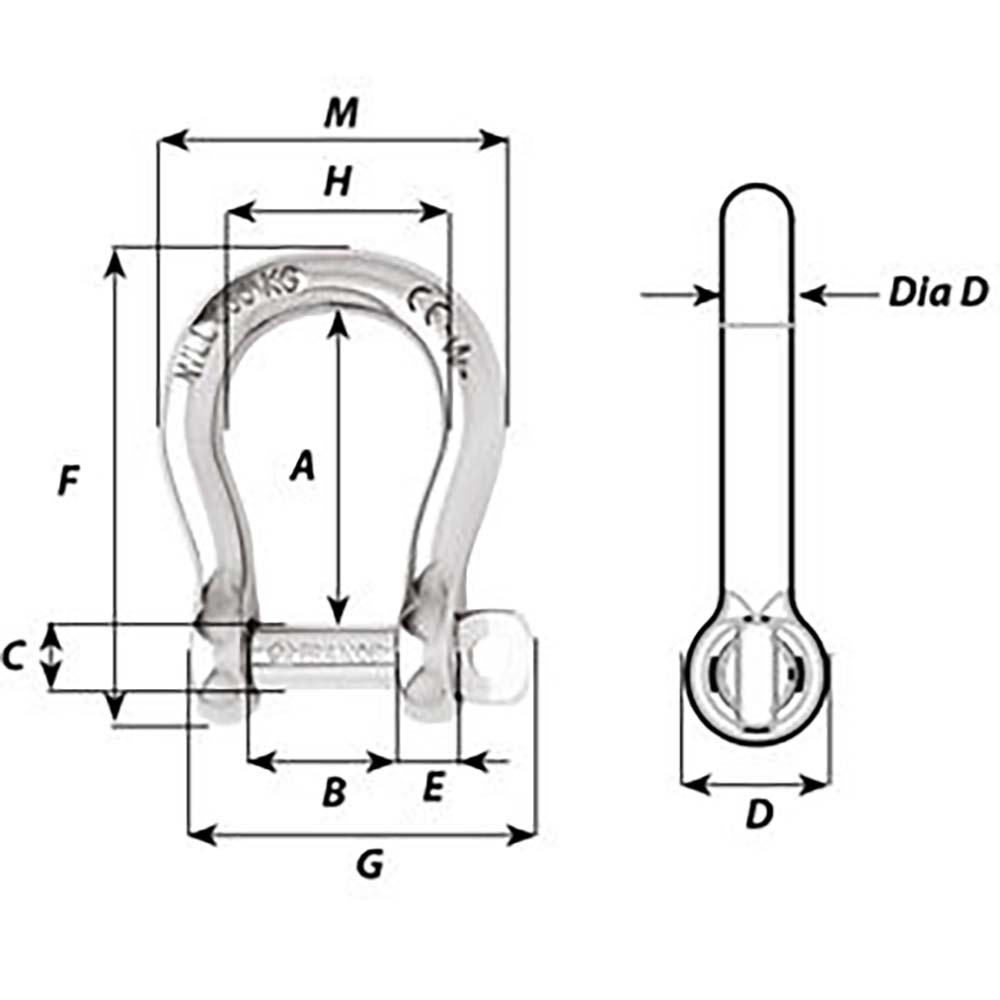

Dimensions:

  • A (inch) 1-27/32"
  • B (inch) 25/32"
  • C (inch) 25/64"
  • D (inch) 25/32"
  • D diameter (inch) 25/64"
  • E (inch) 23/64"
  • M (inch) 2-3/64"
Product form

Self-Locking Bow Shackle - Diameter 10mm - 13/32"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is... Read more

SKU: CWR-93106
Barcode: 768536012453

4 in stock

$73.26$54.15

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking Bow Shackle - Diameter 10mm - 13/32"

      Features:

      • Self-locking bow shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking and batch number

      Applications:

      • To be used when ample room is required
      • Possibility to attach several lines or cables

      Specifications:

      • Materials 316 stainless steel grade
      • Working load (lb) 3350
      • WLL (lb) 1890
      • Breaking load (lb) 9470
      • Weight (lb) 0.302

      Dimensions:

      • A (inch) 1-27/32"
      • B (inch) 25/32"
      • C (inch) 25/64"
      • D (inch) 25/32"
      • D diameter (inch) 25/64"
      • E (inch) 23/64"
      • M (inch) 2-3/64"
