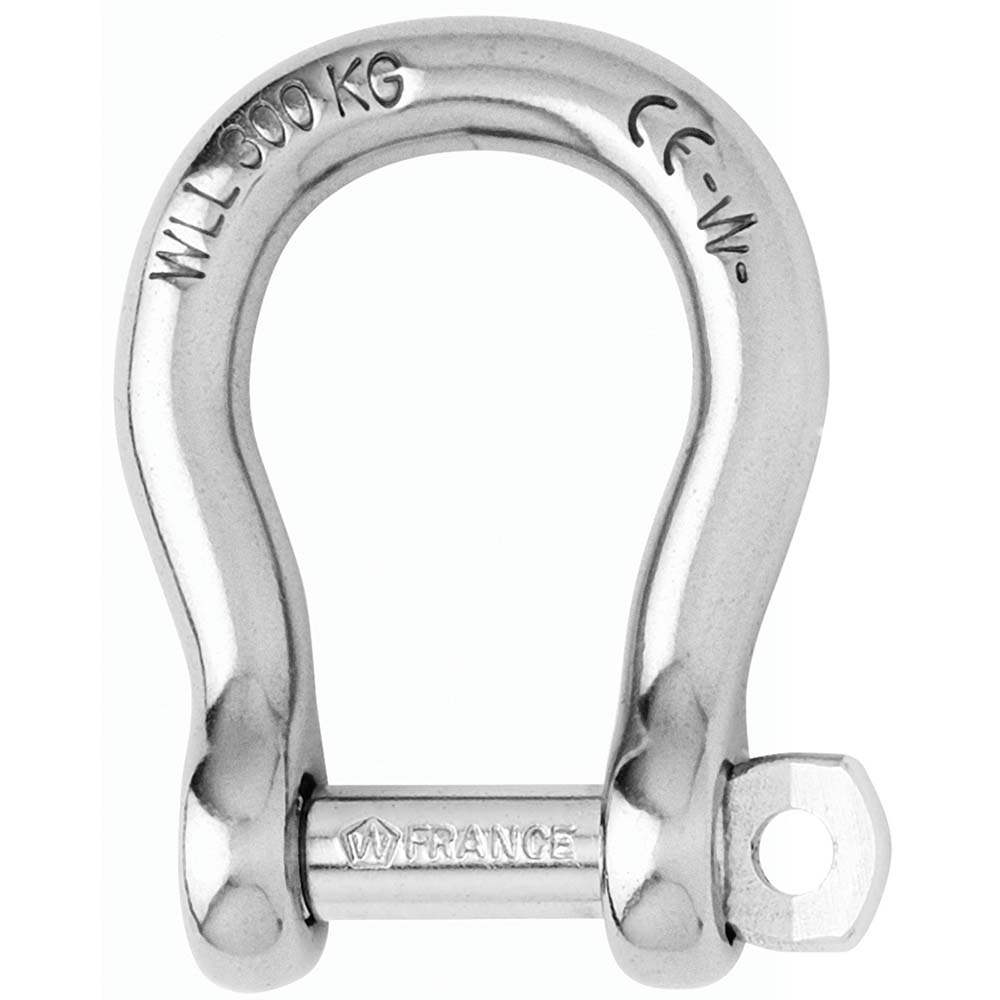

Wichard Self-Locking Bow Shackle - Diameter 5mm - 3/16" [01242]

Description

Self-Locking Bow Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 880
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.037

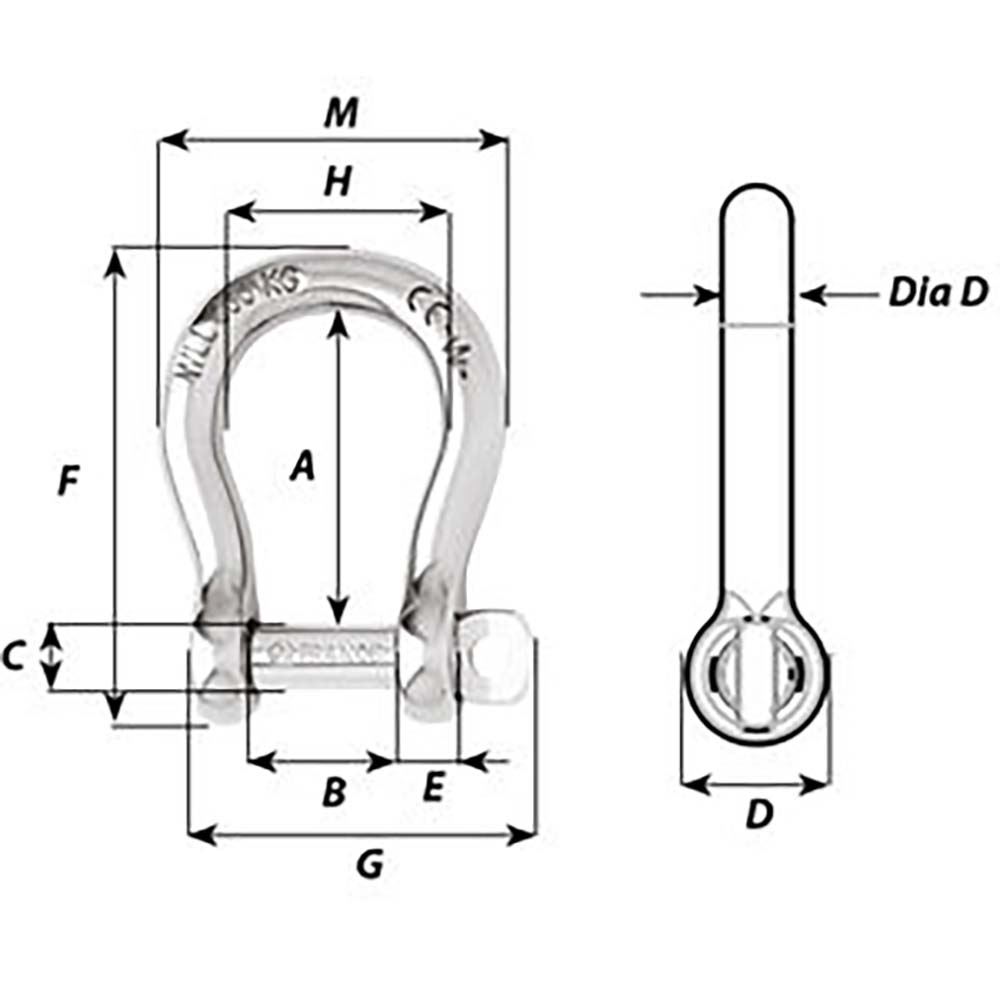

Dimensions (see 2nd image):

  • A (inch) 29/32"
  • B (inch) 25/64"
  • C (inch) 13/64"
  • D (inch) 25/64"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • M (inch) 63/64"
Product form

Self-Locking Bow Shackle - Diameter 5mm - 3/16"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is... Read more

SKU: CWR-93103
Barcode: 768536012422

$22.43$18.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Aug 31, 2025 15:00:00 -0400

    Description

    Self-Locking Bow Shackle - Diameter 5mm - 3/16"

    Features:

    • Self-locking bow shackle forged in grade 316L stainless steel
    • The pin is locked into one of the indentations
    • No risks of loosening due to vibrations
    • Outstanding working and breaking loads
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking and batch number

    Applications:

    • To be used when ample room is required
    • Possibility to attach several lines or cables

    Specifications:

    • Materials 316 stainless steel grade
    • Working load (lb) 880
    • WLL (lb) 440
    • Breaking load (lb) 2200
    • Weight (lb) 0.037

    Dimensions (see 2nd image):

    • A (inch) 29/32"
    • B (inch) 25/64"
    • C (inch) 13/64"
    • D (inch) 25/64"
    • D diameter (inch) 13/64"
    • E (inch) 5/32"
    • M (inch) 63/64"
