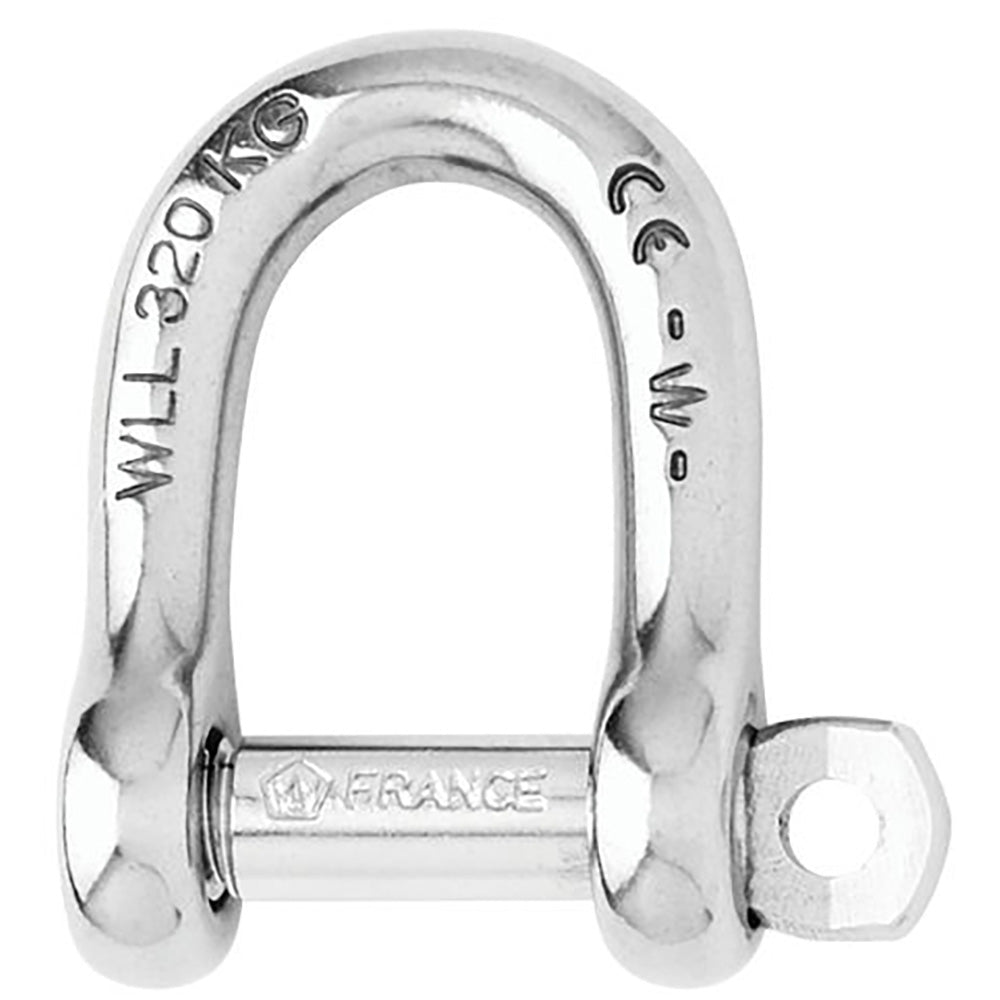

Wichard Self-Locking D Shackle - 12mm Diameter - 15/32" [01206]

Description

Self-Locking D Shackle - 12mm Diameter - 15/32"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 4580 / (kg) 2080
  • WLL: (lb) 2640 / 1200 (kg)
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.425 / (g) 193

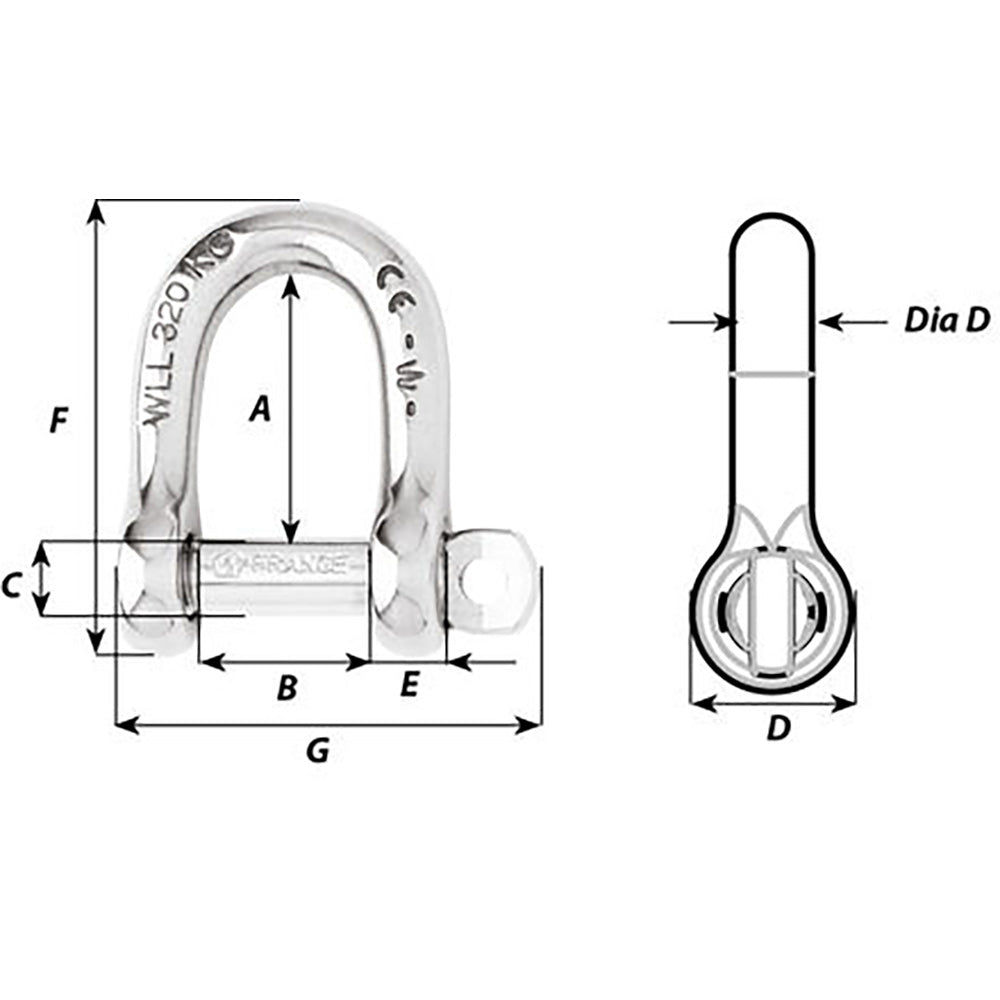

Dimensions:

  • A: (inch) 1-21/32" / (mm) 42
  • B: (inch) 1-1/16" / (mm) 27
  • C: (inch) 15/32" / (mm) 12
  • D: (inch) 15/16" / (mm) 24
  • D diameter: (inch) 15/32" / (mm) 12
  • E: (inch) 7/16" / (mm) 11
  • F: (inch) 2-7/8" / (mm) 73
  • G: (inch) 2-7/16" / (mm) 62

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Self-Locking D Shackle - 12mm Diameter - 15/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is... Read more

SKU: CWR-97628
Barcode: 3587790012064

2 in stock

$108.22$79.99

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking D Shackle - 12mm Diameter - 15/32"

      Features:

      • Self-locking D shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • Standard applications of the shackle
      • Attachment applications: blocks, head

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 4580 / (kg) 2080
      • WLL: (lb) 2640 / 1200 (kg)
      • Breaking load: (lb) 13220 / (kg) 6000
      • Weight: (lb) 0.425 / (g) 193

      Dimensions:

      • A: (inch) 1-21/32" / (mm) 42
      • B: (inch) 1-1/16" / (mm) 27
      • C: (inch) 15/32" / (mm) 12
      • D: (inch) 15/16" / (mm) 24
      • D diameter: (inch) 15/32" / (mm) 12
      • E: (inch) 7/16" / (mm) 11
      • F: (inch) 2-7/8" / (mm) 73
      • G: (inch) 2-7/16" / (mm) 62

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
