Description

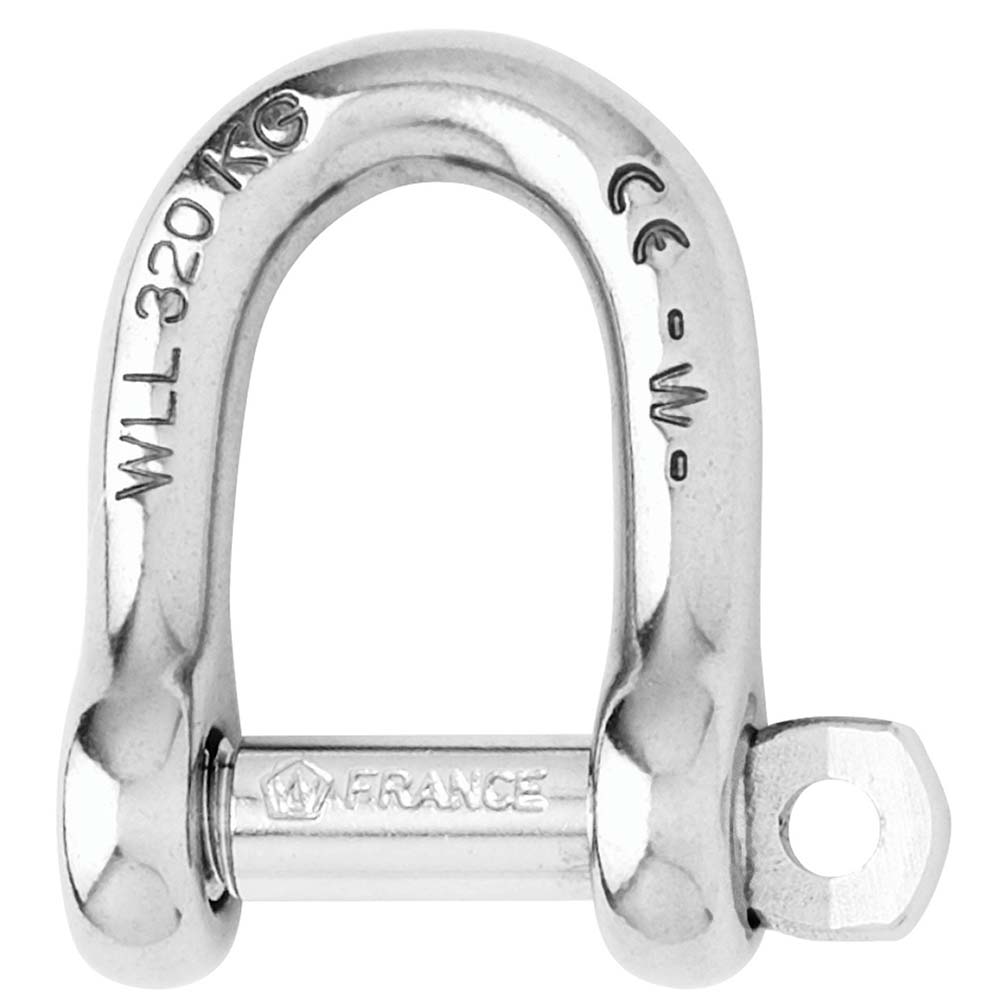

Self-Locking D Shackle - Diameter 5mm - 3/16"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.015

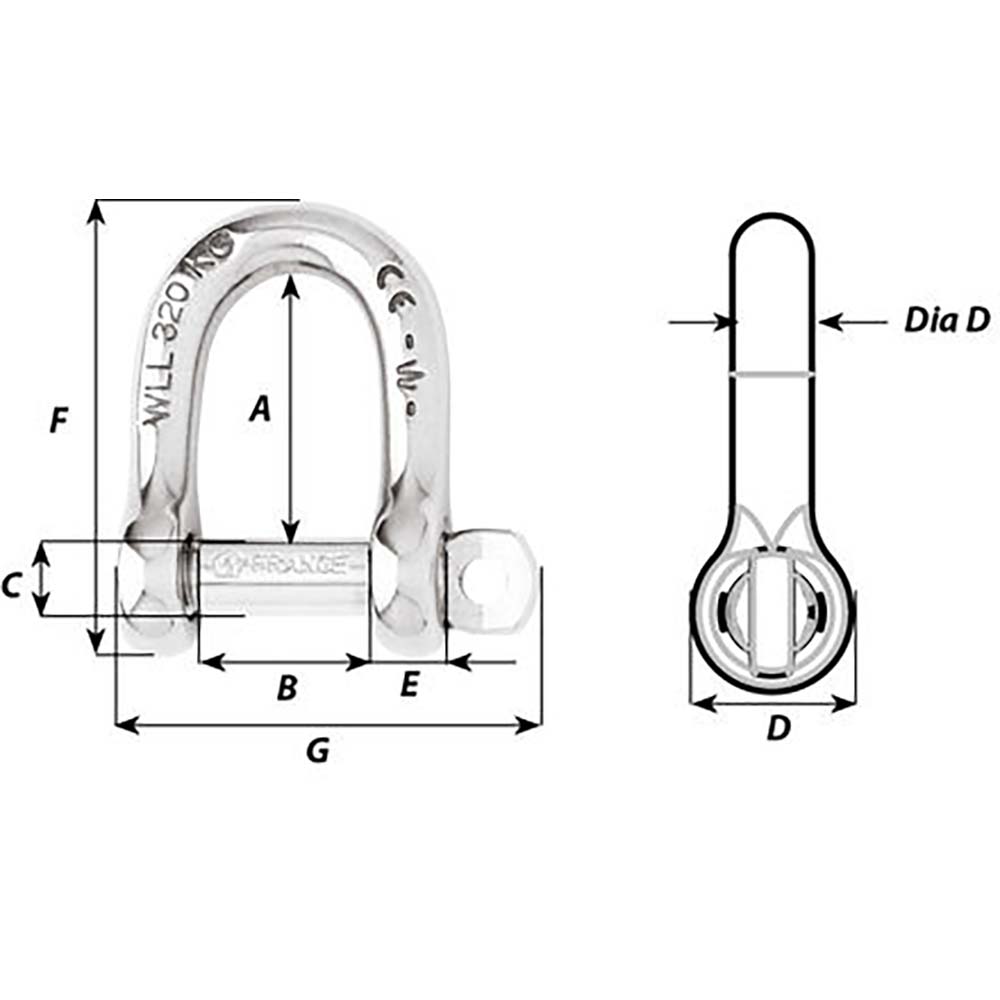

Dimensions (see 2nd image):
- A (inch) 33/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- E (inch) 1/8"
- F (inch) 29/32"
- G (inch) 25/32"
