Wichard Self-Locking D Shackle - Diameter 6mm - 1/4" [1203W]

Description

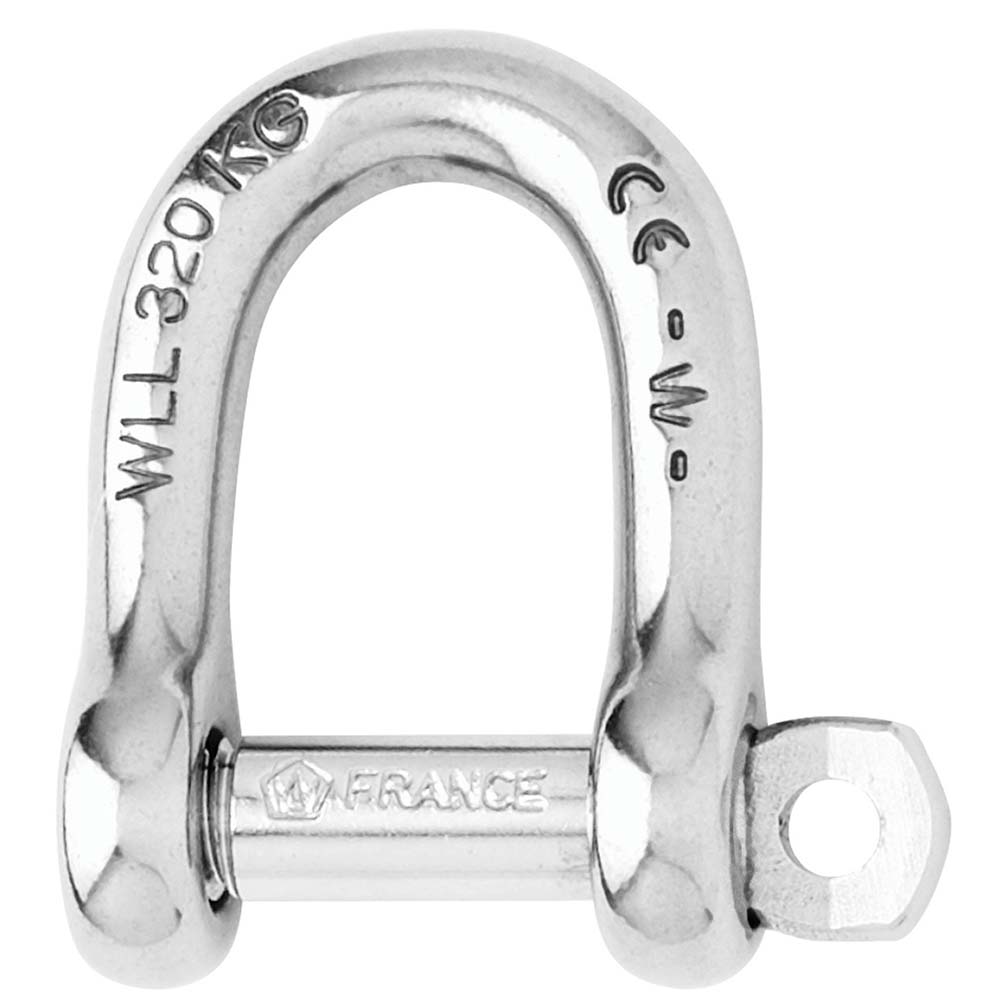

Self-Locking D Shackle - Diameter 6mm - 1/4"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1320
  • WLL (lb) 700
  • Breaking load (lb) 3520
  • Weight (lb) 0.049

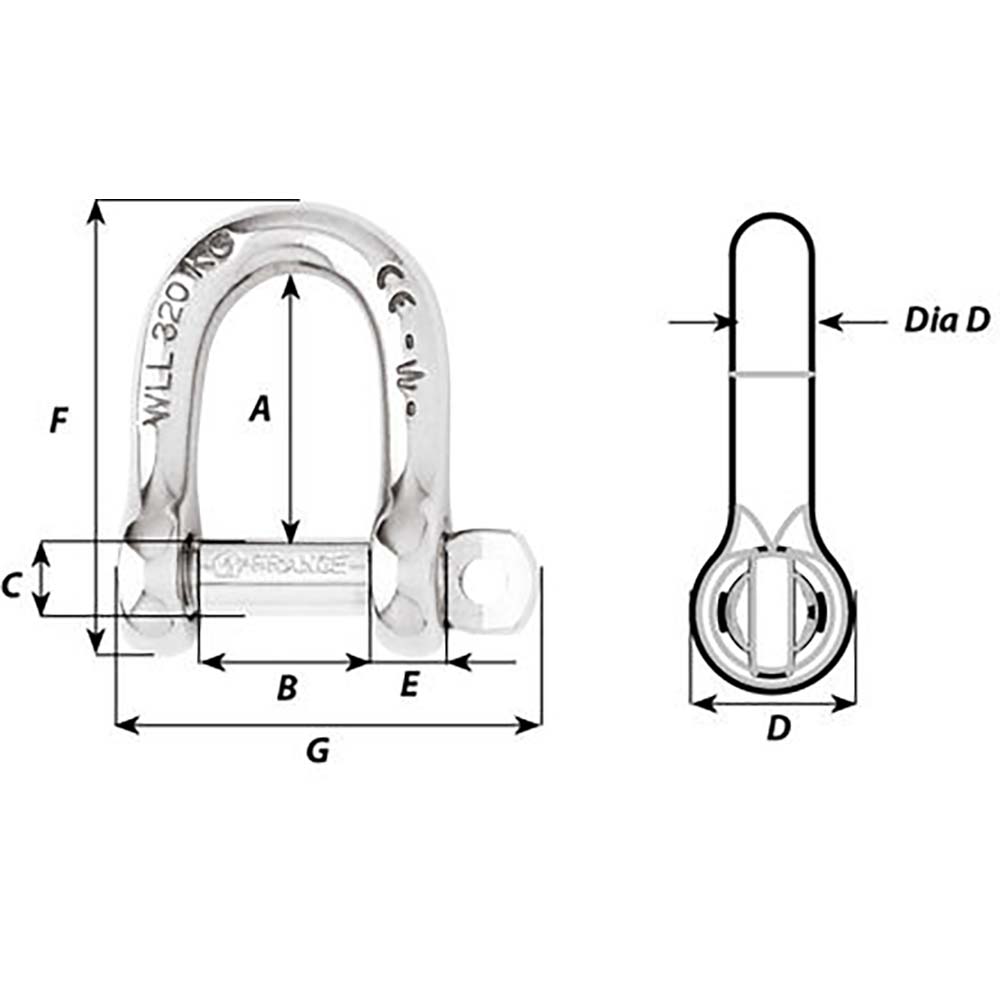

Dimensions (see 2nd image):

  • A (inch) 25/32"
  • B (inch) 15/32"
  • C (inch) 15/64"
  • D (inch) 15/32"
  • D diameter (inch) 15/64"
  • E (inch) 13/64"
  • F (inch) 1-11/32"
  • G (inch) 1-7/32"
Product form

Self-Locking D Shackle - Diameter 6mm - 1/4"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is... Read more

SKU: CWR-93092
Barcode: 3587790012033

4 in stock

$28.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Sep 16, 2026 15:00:00 -0400

    Description

    Self-Locking D Shackle - Diameter 6mm - 1/4"

    Features:

    • Self-locking D shackle forged in grade 316L stainless steel
    • The pin is locked into one of the indentations
    • No risks of loosening due to vibrations
    • Outstanding working and breaking loads
    • WLL: only for industrial applications (lifting i.e…)
    • CE marking and batch number

    Applications:

    • Standard applications of the shackle
    • Attachment applications: blocks, head…

    Specifications:

    • Materials 316 stainless steel grade
    • Working load (lb) 1320
    • WLL (lb) 700
    • Breaking load (lb) 3520
    • Weight (lb) 0.049

    Dimensions (see 2nd image):

    • A (inch) 25/32"
    • B (inch) 15/32"
    • C (inch) 15/64"
    • D (inch) 15/32"
    • D diameter (inch) 15/64"
    • E (inch) 13/64"
    • F (inch) 1-11/32"
    • G (inch) 1-7/32"
