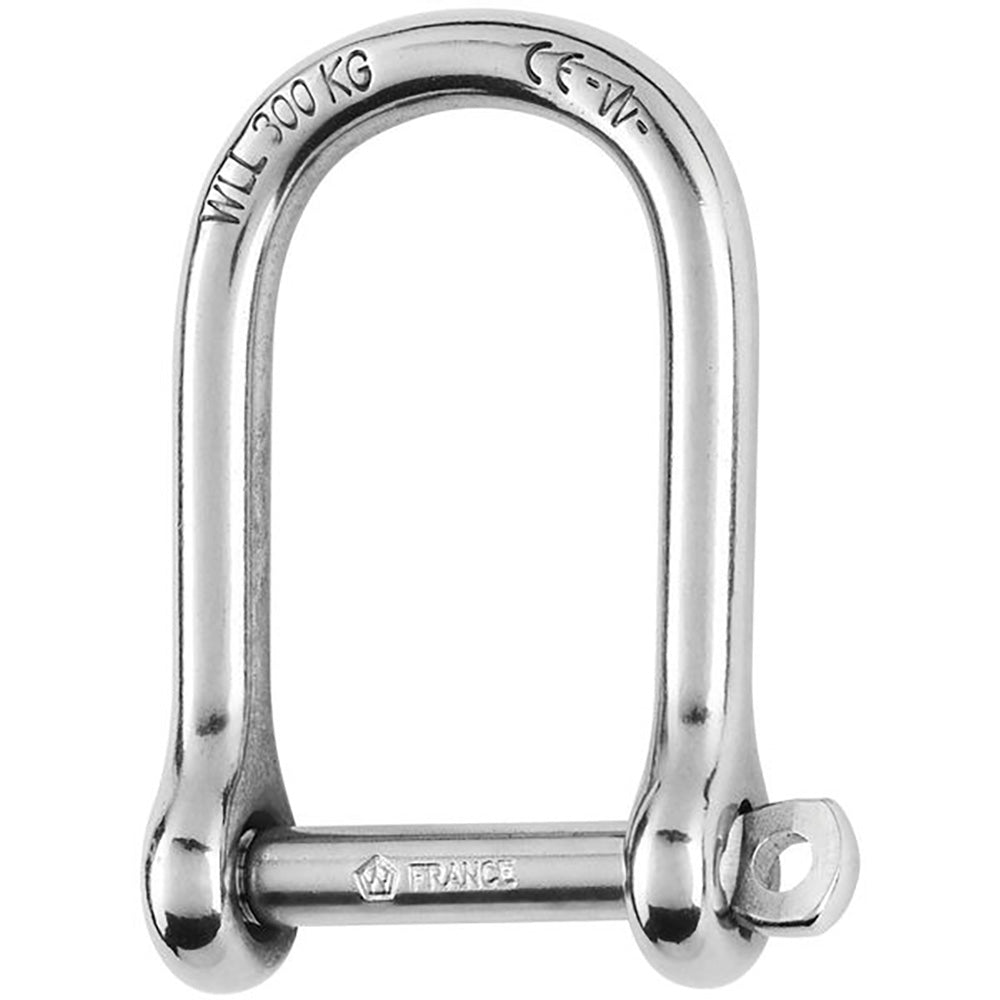

Wichard Self-Locking Large Opening Shackle - 10mm Diameter - 13/32" [01265]

Description

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • WLL: (lb) 1760 / (kg) 800
  • Breaking load: (lb) 8810 / (kg) 4000
  • Weight: (lb) 0.28 / (kg) 4000

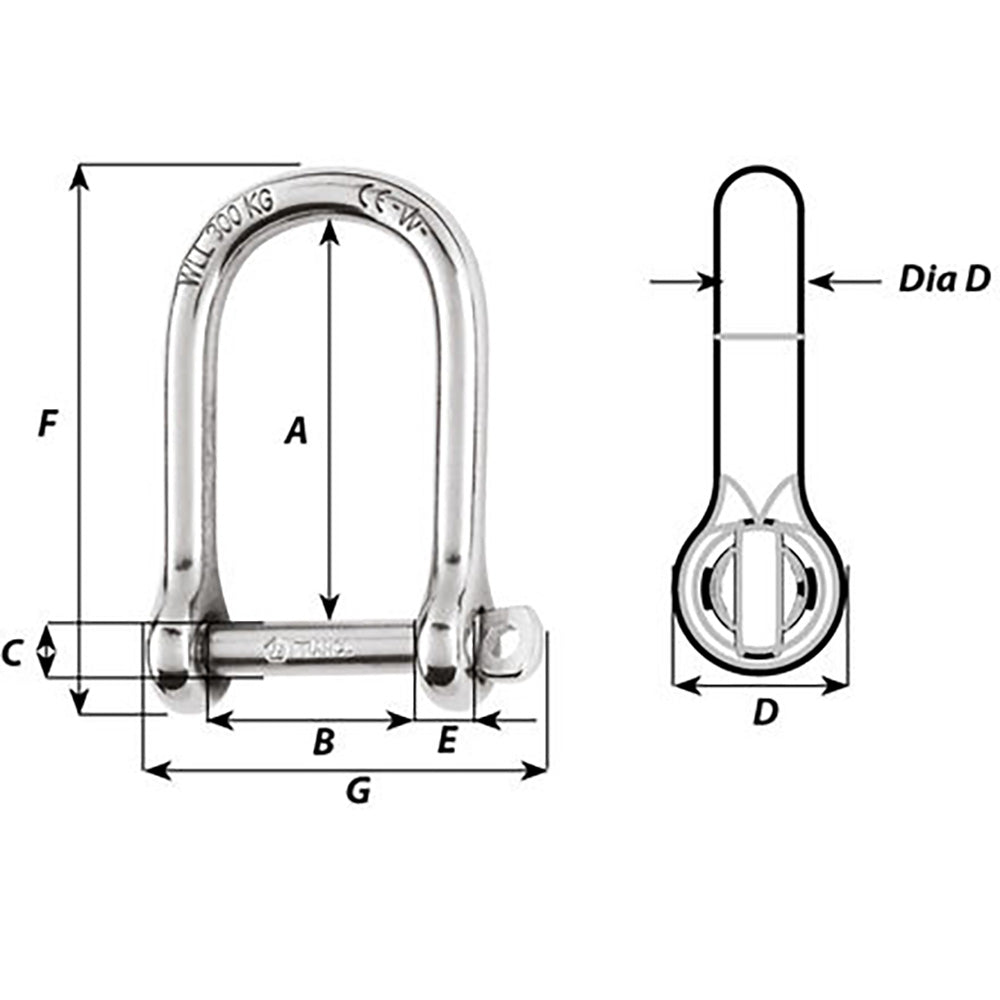

Dimensions:

  • A: (inch) 2 53/64" / (mm) 72
  • B: (inch) 1 37/64" / (mm) 40
  • C; (inch) 25/64" / (mm) 10
  • D: (inch) 53/64" / (mm) 21
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 25/64" / (mm) 10
  • G: (inch) 2 51/64" / (mm) 71

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"Features: Self-locking large shackle forged in grade 316L stainless steel The pin... Read more

SKU: CWR-97637
Barcode: 3587790012651

$114.37$84.53

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

      Features:

      • Self-locking large shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • For applications where a large opening shackle is required

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 2820 / (kg) 1280
      • WLL: (lb) 1760 / (kg) 800
      • Breaking load: (lb) 8810 / (kg) 4000
      • Weight: (lb) 0.28 / (kg) 4000

      Dimensions:

      • A: (inch) 2 53/64" / (mm) 72
      • B: (inch) 1 37/64" / (mm) 40
      • C; (inch) 25/64" / (mm) 10
      • D: (inch) 53/64" / (mm) 21
      • D diameter: (inch) 25/64" / (mm) 10
      • E: (inch) 25/64" / (mm) 10
      • G: (inch) 2 51/64" / (mm) 71

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
        WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
