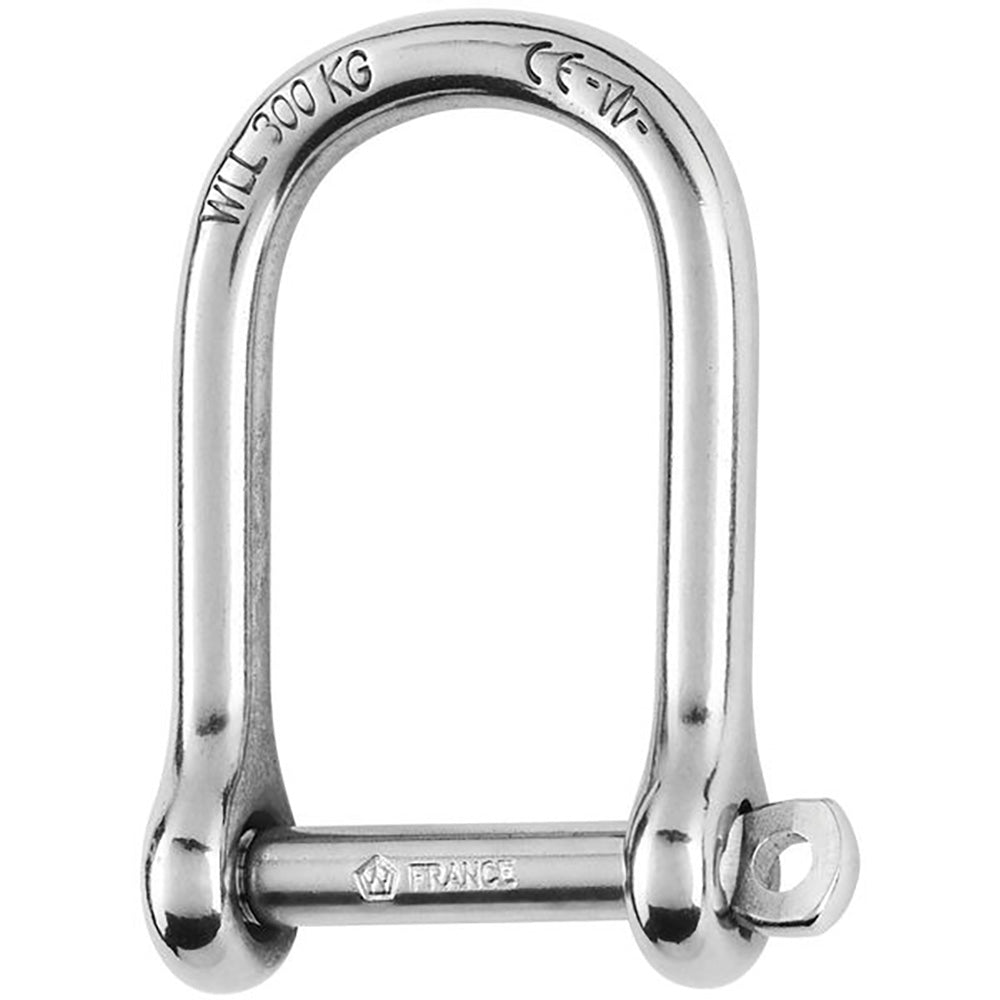

Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16" [01264]

Description

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 1780 / (kg) 810
  • WLL: (lb) 1190 / (kg) 540
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.148 / (g) 67

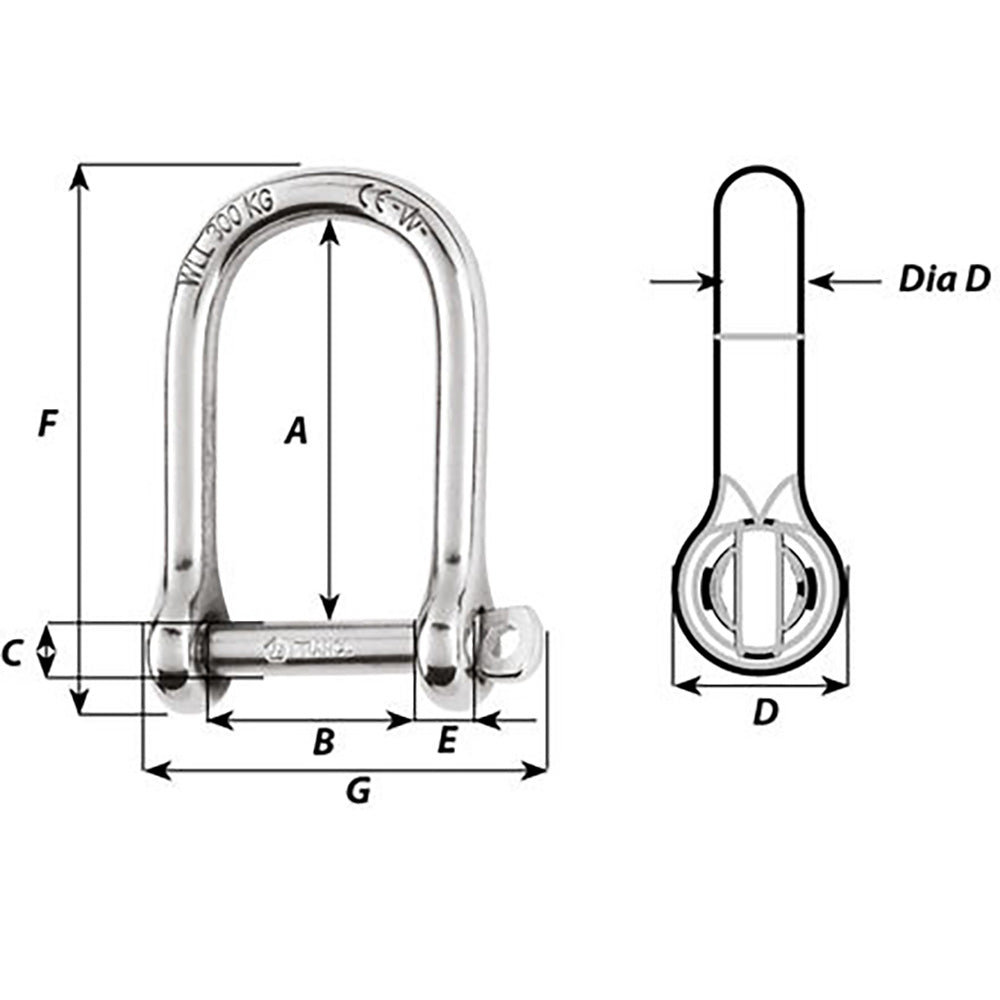

Dimensions:

  • A: (inch) 2 1/4" / (mm) 57
  • B: (inch) 1 17/64" / (mm) 32
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 43/64" / (mm) 17
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 1/32" / (mm) 77
  • G: (inch) 2 1/4" / (mm) 57

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"Features:   Self-locking large shackle forged in grade 316L stainless steel The pin... Read more

SKU: CWR-97636
Barcode: 3587790012644

8 in stock

$71.93$53.17

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

      Features:

      • Self-locking large shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications:

      • For applications where a large opening shackle is required

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 1780 / (kg) 810
      • WLL: (lb) 1190 / (kg) 540
      • Breaking load: (lb) 5950 / (kg) 2700
      • Weight: (lb) 0.148 / (g) 67

      Dimensions:

      • A: (inch) 2 1/4" / (mm) 57
      • B: (inch) 1 17/64" / (mm) 32
      • C: (inch) 5/16" / (mm) 8
      • D: (inch) 43/64" / (mm) 17
      • D diameter: (inch) 5/16" / (mm) 8
      • E: (inch) 5/16" / (mm) 8
      • F: (inch) 3 1/32" / (mm) 77
      • G: (inch) 2 1/4" / (mm) 57

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
        WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
