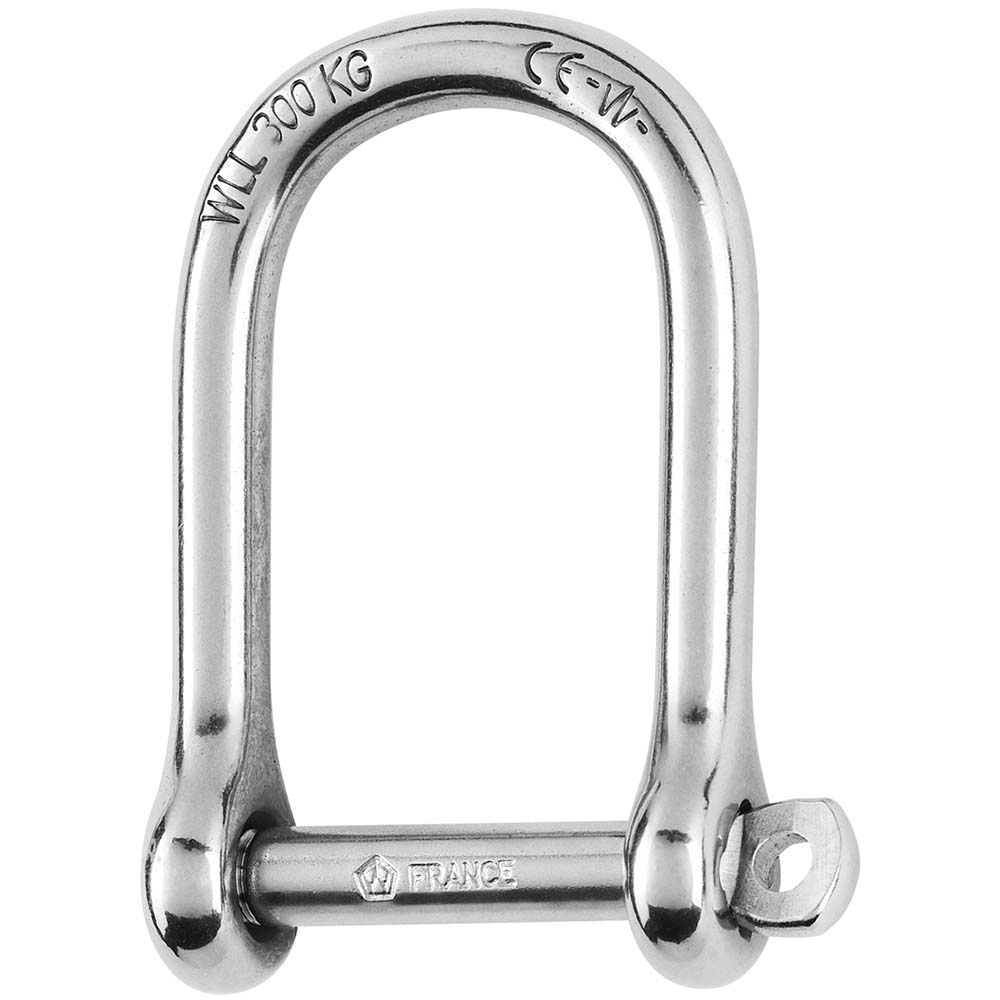

Wichard Self-Locking Large Shackle - Diameter 5mm - 3/16" [01262]

Description

Self-Locking Large Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 550
  • WLL (lb) 480
  • Breaking load (lb) 2420
  • Weight (lb) 0.035

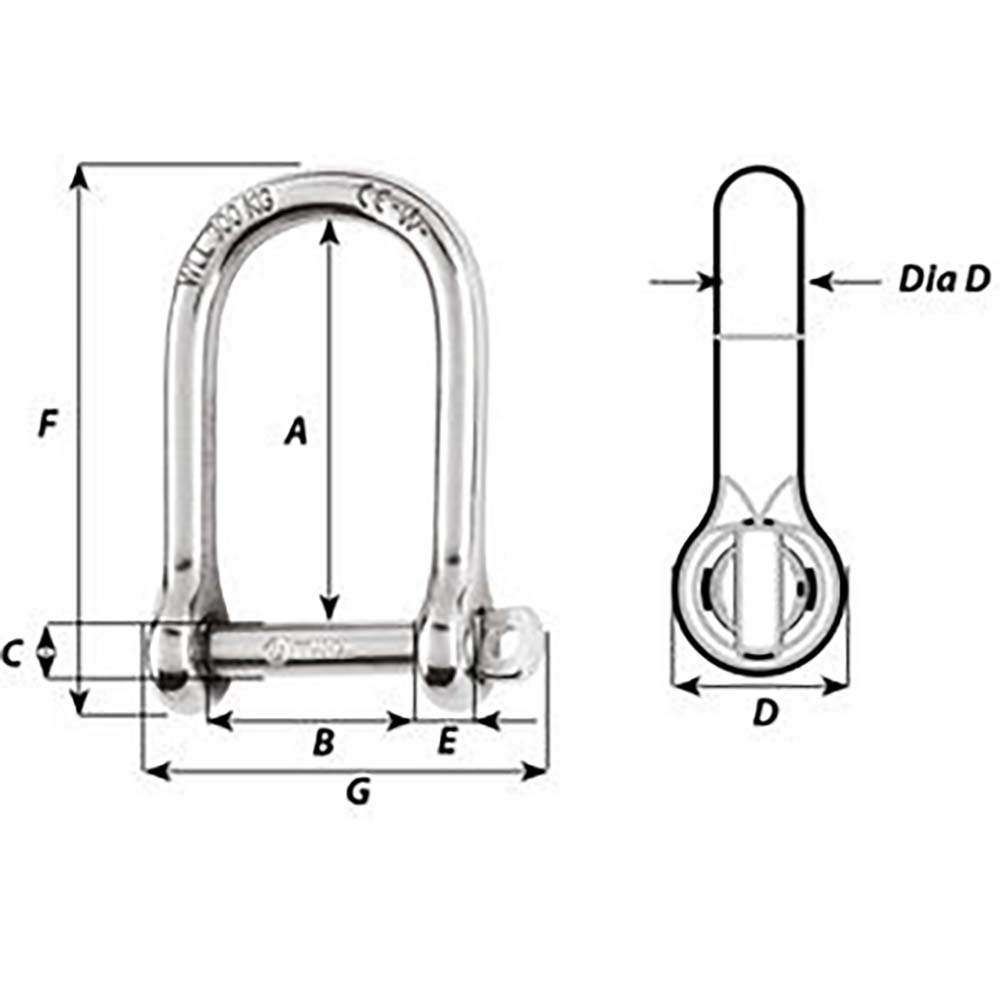

Dimensions (see 2nd image):

  • A (inch) 1-27/64"
  • B (inch) 25/32"
  • C (inch) 13/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • F (inch) 1-57/64"
  • G (inch) 1-3/8"
Product form

Self-Locking Large Shackle - Diameter 5mm - 3/16"Features:  Self-locking large shackle forged in grade 316L stainless steel The pin is... Read more

SKU: CWR-93108
Barcode: 768536012620

$34.90$25.80

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking Large Shackle - Diameter 5mm - 3/16"

      Features:

      • Self-locking large shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking and batch number

      Applications:

      • For applications where a large opening shackle is required

      Specifications:

      • Materials 316 stainless steel grade
      • Working load (lb) 550
      • WLL (lb) 480
      • Breaking load (lb) 2420
      • Weight (lb) 0.035

      Dimensions (see 2nd image):

      • A (inch) 1-27/64"
      • B (inch) 25/32"
      • C (inch) 13/64"
      • D (inch) 7/16"
      • D diameter (inch) 13/64"
      • E (inch) 13/64"
      • F (inch) 1-57/64"
      • G (inch) 1-3/8"
