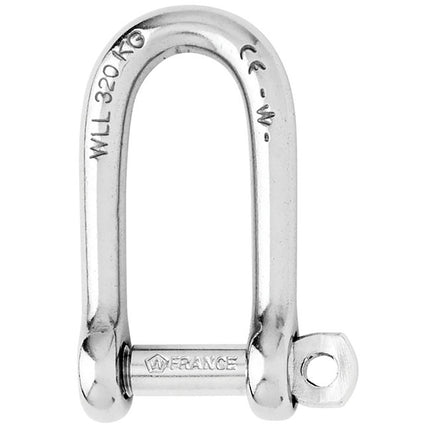

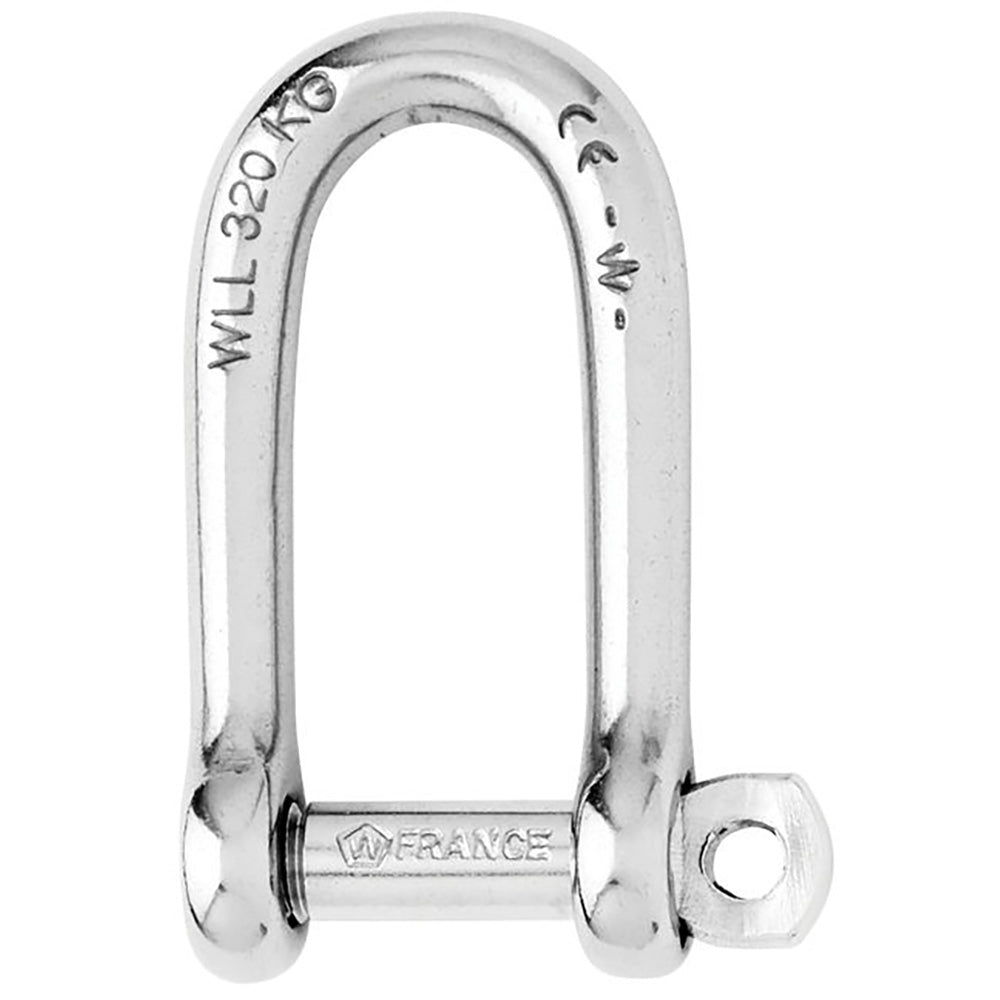

Wichard Self-Locking Long D Shackle - 10mm Diameter - 13/32" [01215]

Description

Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3350 / (kg) 1520
  • WLL: (lb) 1890 / (kg) 860
  • Breaking load: (lb) 9470 / (kg) 4300
  • Weight: (lb) 0.282 / (kg) 4300

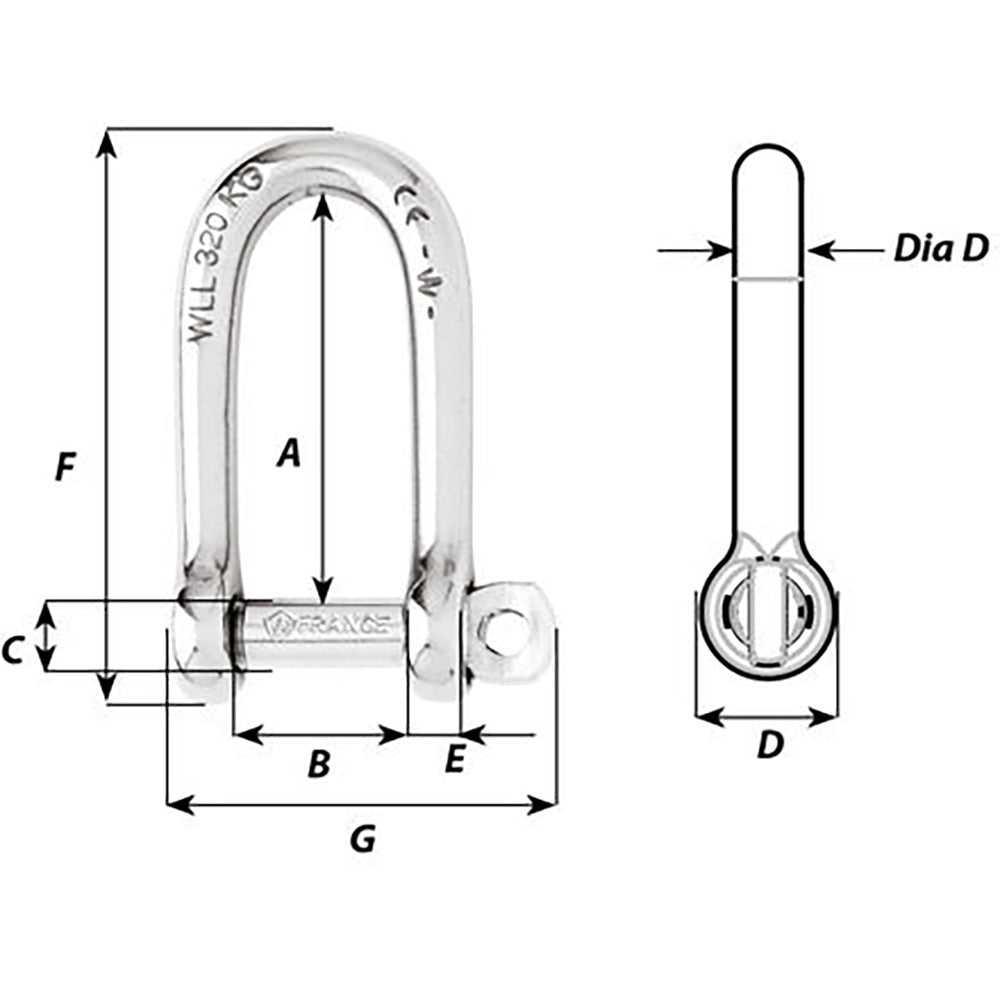

Dimensions:

  • A: (inch) 2 11/64" / (mm) 55
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 3/4" / (mm) 19
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 23/64" / (mm) 9
  • G: (inch) 3 7/64" / (mm) 79
  • H: (inch) 2 3/64" / (mm) 52

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Self-Locking Long D Shackle - 10mm Diameter - 13/32"Features:  Self-locking D shackle forged in grade 316L stainless steel The pin... Read more

SKU: CWR-97630
Barcode: 768536012156

$77.97$57.63

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking Long D Shackle - 10mm Diameter - 13/32"

      Features:

      • Self-locking D shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads
      • WLL: only for industrial applications (lifting i.e…)
      • CE marking

      Applications

      • Standard applications of shackle requiring more length
      • Attachment applications: blocks, head

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 3350 / (kg) 1520
      • WLL: (lb) 1890 / (kg) 860
      • Breaking load: (lb) 9470 / (kg) 4300
      • Weight: (lb) 0.282 / (kg) 4300

      Dimensions:

      • A: (inch) 2 11/64" / (mm) 55
      • B: (inch) 25/32" / (mm) 20
      • C: (inch) 25/64" / (mm) 10
      • D: (inch) 3/4" / (mm) 19
      • D diameter: (inch) 25/64" / (mm) 10
      • E: (inch) 23/64" / (mm) 9
      • G: (inch) 3 7/64" / (mm) 79
      • H: (inch) 2 3/64" / (mm) 52

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
        WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
