Wichard Self-Locking Long D Shackle - Diameter 8mm - 5/16" [01214]

Description

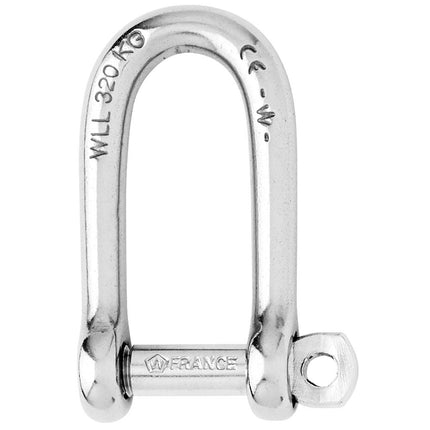

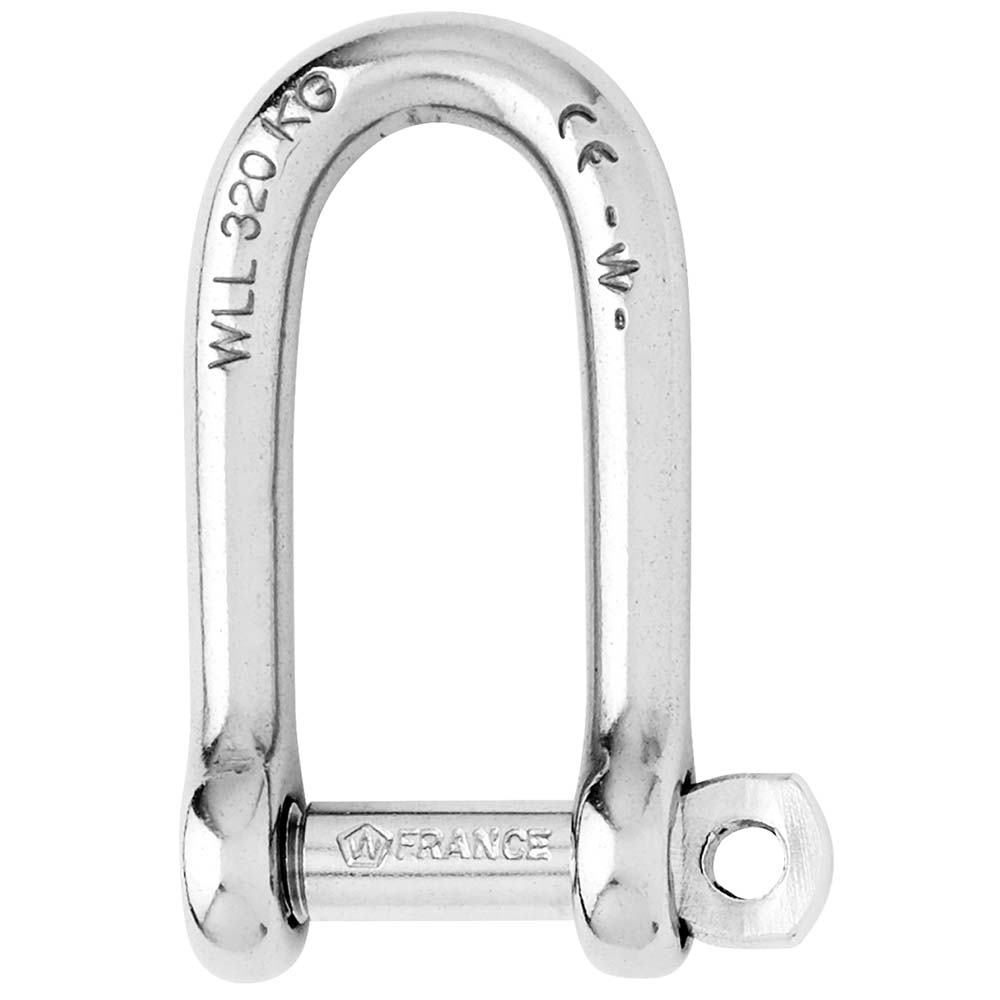

Self-Locking Long D Shackle - Diameter 8mm - 5/16"

Features:

  • Self-locking long shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications
  • CE Marking and batch number

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1190
  • Breaking load (lb) 5950
  • Weight (lb) 0.146

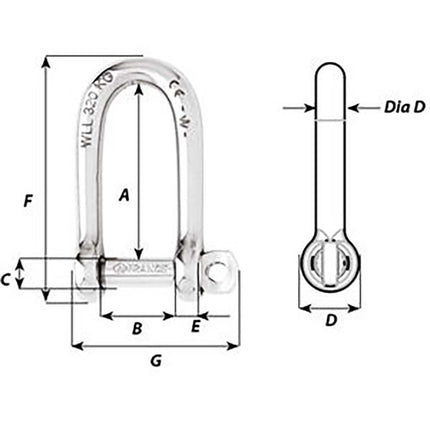

Dimensions (see 2nd image):

  • A (inch) 1-49/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 2-33/64"
  • G (inch) 1-39/64"
Product form

Self-Locking Long D Shackle - Diameter 8mm - 5/16"Features: Self-locking long shackle forged in grade 316L stainless steel The pin... Read more

SKU: CWR-93098
Barcode: 768536012149

$46.92$34.68

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Sep 03, 2025 15:00:00 -0400

    Description

    Self-Locking Long D Shackle - Diameter 8mm - 5/16"

    Features:

    • Self-locking long shackle forged in grade 316L stainless steel
    • The pin is locked into one of the indentations
    • No risks of loosening due to vibrations
    • Outstanding working and breaking loads
    • WLL: only for industrial applications
    • CE Marking and batch number

    Applications:

    • Standard applications of shackle requiring more length
    • Attachment applications: blocks, head…

    Specifications:

    • Materials 316 stainless steel grade
    • Working load (lb) 2200
    • WLL (lb) 1190
    • Breaking load (lb) 5950
    • Weight (lb) 0.146

    Dimensions (see 2nd image):

    • A (inch) 1-49/64"
    • B (inch) 5/8"
    • C (inch) 5/16"
    • D (inch) 5/8"
    • D diameter (inch) 5/16"
    • E (inch) 9/32"
    • F (inch) 2-33/64"
    • G (inch) 1-39/64"
