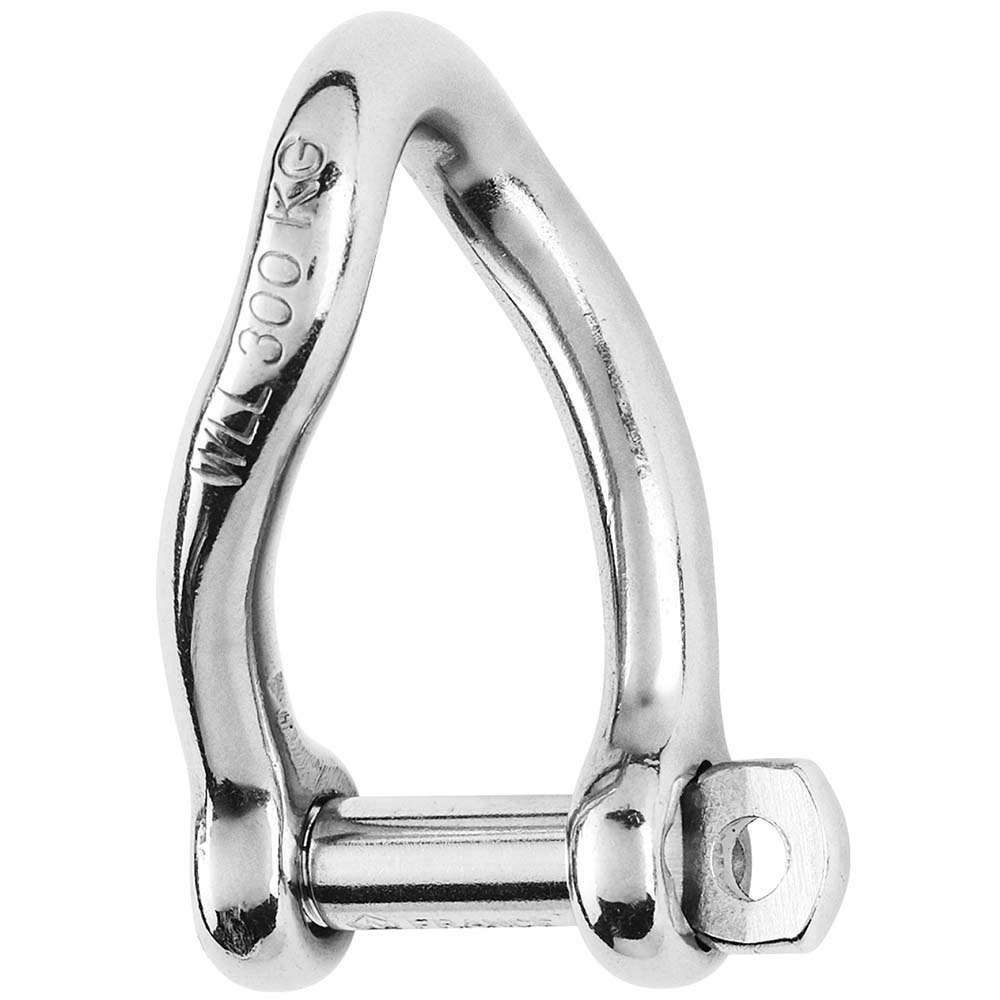

Wichard Self-Locking Twisted Shackle - Diameter 5mm - 3/16" [01222]

Description

Self-Locking Twisted Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking twisted shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • Breaking load (lb) 2420
  • Weight (lb) 0.035

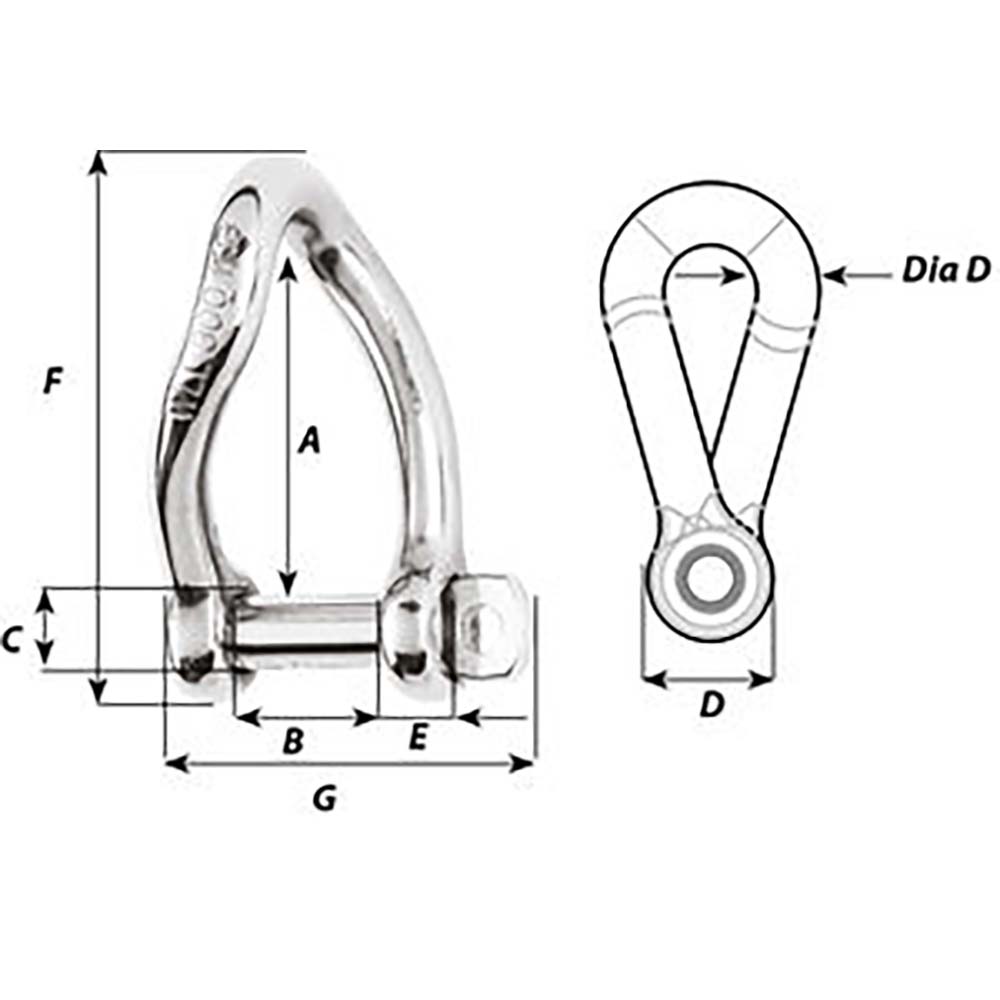

Dimensions (see 2nd image):

  • A (inch) 1-1/32"
  • B (inch) 25/64"
  • C (inch) 13/64"
  • D (inch) 25/64"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • F (inch) 1-1/2"
  • H (inch) 1-1/32"
Product form

Self-Locking Twisted Shackle - Diameter 5mm - 3/16"Features: Self-locking twisted shackle forged in grade 316L stainless steel The pin is... Read more

SKU: CWR-93099
Barcode: 3587790012224

$28.92$22.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Self-Locking Twisted Shackle - Diameter 5mm - 3/16"

      Features:

      • Self-locking twisted shackle forged in grade 316L stainless steel
      • The pin is locked into one of the indentations
      • No risks of loosening due to vibrations
      • Outstanding working and breaking loads

      Applications:

      • Perfect for application where a 90° angle twist setup is required
      • Often used to attach an unarticulated part (block on a rail) or on purchases

      Specifications:

      • Materials 316 stainless steel grade
      • Working load (lb) 1050
      • Breaking load (lb) 2420
      • Weight (lb) 0.035

      Dimensions (see 2nd image):

      • A (inch) 1-1/32"
      • B (inch) 25/64"
      • C (inch) 13/64"
      • D (inch) 25/64"
      • D diameter (inch) 13/64"
      • E (inch) 5/32"
      • F (inch) 1-1/2"
      • H (inch) 1-1/32"
