Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

Description

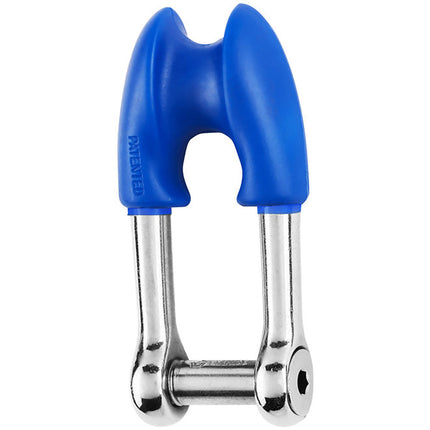

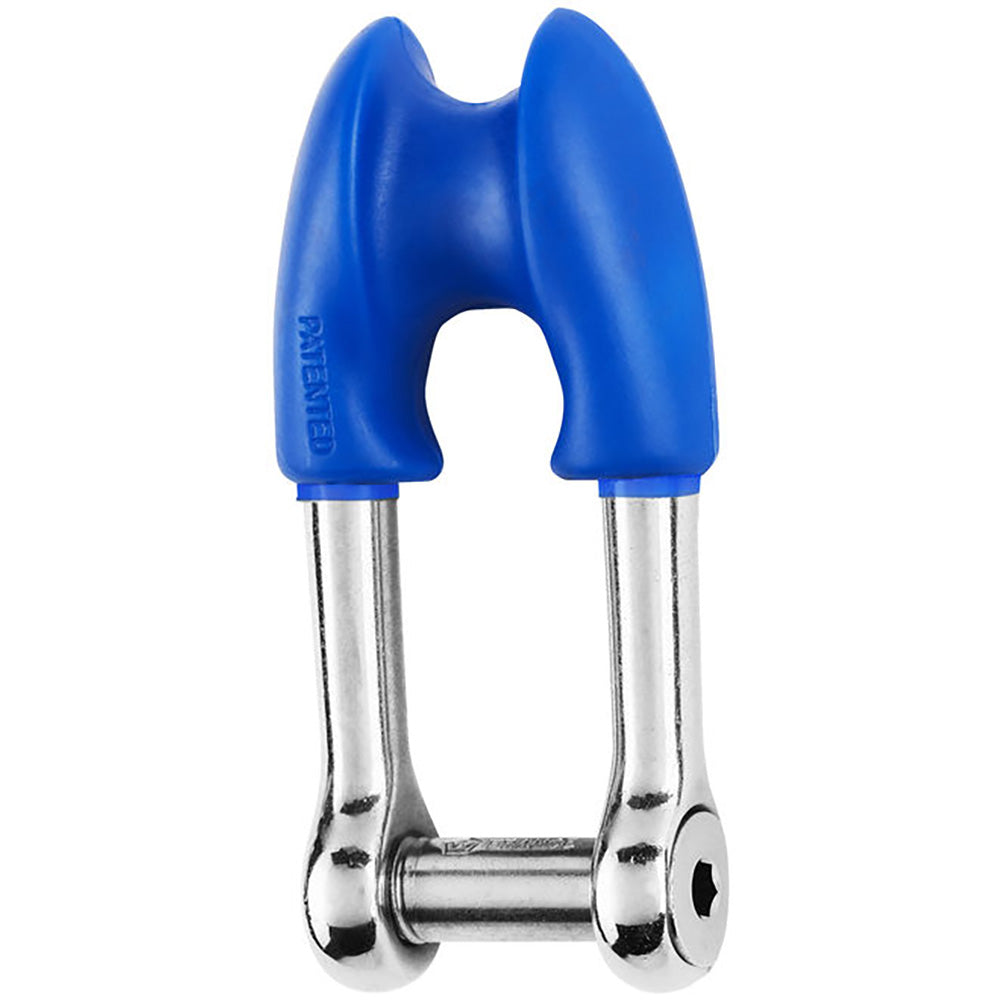

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

  • Thimble shackle with allen head pin forged in grade 316L stainless steel
  • Allows a rope to be spliced without adding and additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 16 mm

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3350 / (kg) 1520
  • Breaking load: (lb) 11020 / (kg) 5000
  • Weight: (lb) 0.313 / (g) 142

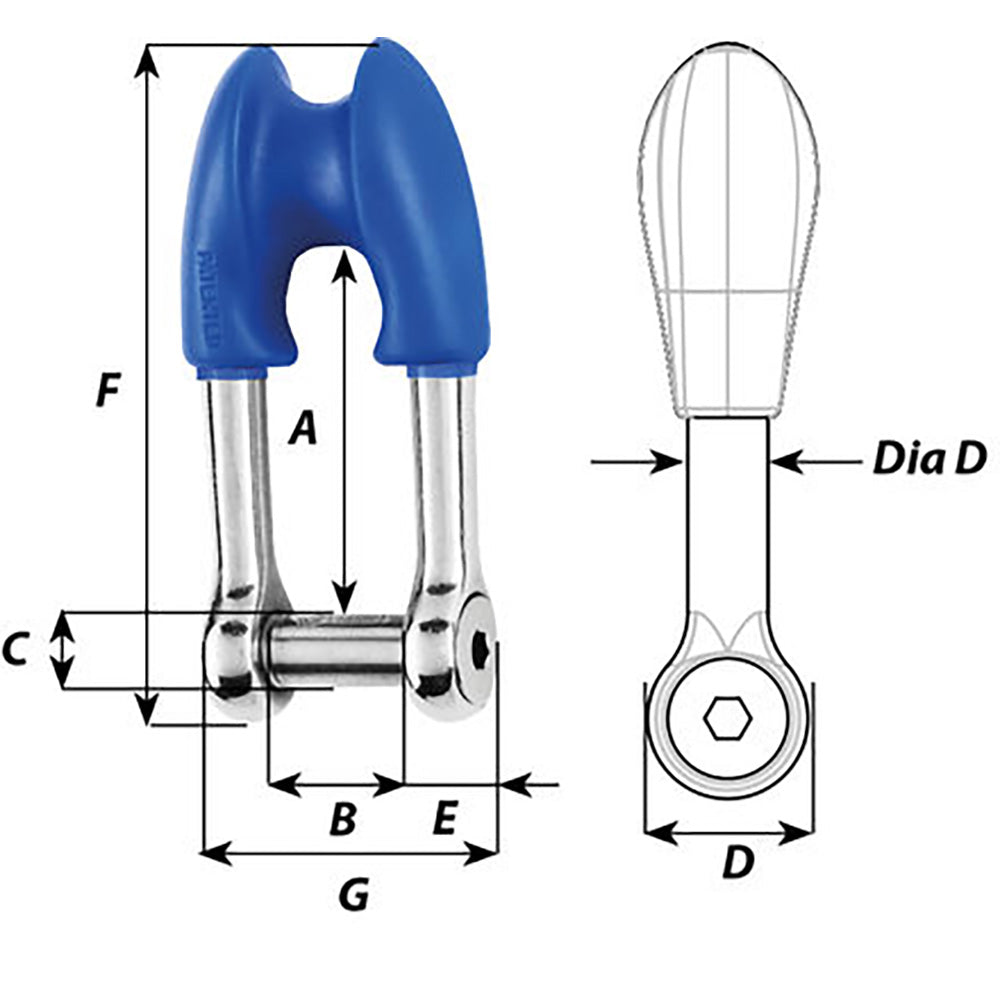

Dimensions:

  • A: (inch) 2 1/64" / (mm) 51
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 25/32" / (mm) 96
  • G: (inch) 1 39/64" / (mm) 41

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"Features: Thimble shackle with allen head pin forged in grade 316L... Read more

SKU: CWR-97649

4 in stock

$185.69$157.84

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

      Features:

      • Thimble shackle with allen head pin forged in grade 316L stainless steel
      • Allows a rope to be spliced without adding and additional thimble
      • With the captive pin, no risk to lose the pin
      • Outstanding working and breaking loads

      Applications:

      • Mainsheet halyards
      • Max rope size: 16 mm

      Specifications:

      • Materials: 316 stainless steel grade
      • Working load: (lb) 3350 / (kg) 1520
      • Breaking load: (lb) 11020 / (kg) 5000
      • Weight: (lb) 0.313 / (g) 142

      Dimensions:

      • A: (inch) 2 1/64" / (mm) 51
      • B: (inch) 25/32" / (mm) 20
      • C: (inch) 25/64" / (mm) 10
      • D: (inch) 25/32" / (mm) 20
      • D diameter: (inch) 25/64" / (mm) 10
      • E: (inch) 5/16" / (mm) 8
      • F: (inch) 3 25/32" / (mm) 96
      • G: (inch) 1 39/64" / (mm) 41

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
