Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32" [01495]

Description

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

Features:

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 16 mm

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • Breaking load (lb) 11020
  • Weight (lb) 0.322

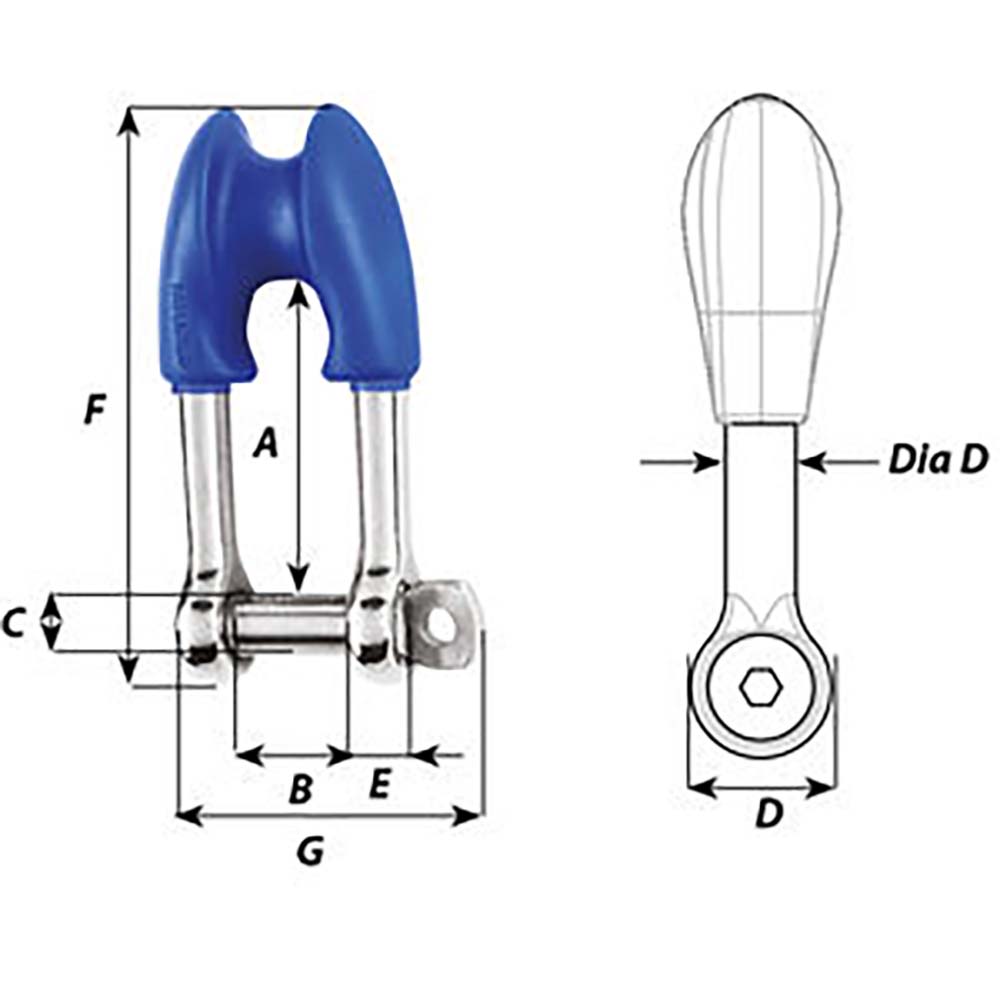

Dimensions (see 2nd image):

  • A (inch) 2-1/64"
  • B (inch) 25/32"
  • C (inch) 25/64"
  • D (inch) 25/32"
  • D diameter (inch) 25/64"
  • E (inch) 23/64"
  • F (inch) 3-47/64"
  • G (inch) 2-1/8"
Product form

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"Features: Thimble shackle with captive pin forged in grade 316L stainless... Read more

SKU: CWR-93132
Barcode: 768536014952

$160.48$118.62

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

      Features:

      • Thimble shackle with captive pin forged in grade 316L stainless steel
      • Allows to spliced a rope without adding an additional thimble
      • With the captive pin, no risk to lose the pin
      • Outstanding working and breaking loads

      Applications:

      • Mainsheet halyards
      • Max rope size: 16 mm

      Specifications:

      • Materials 316 stainless steel grade
      • Working load (lb) 3350
      • Breaking load (lb) 11020
      • Weight (lb) 0.322

      Dimensions (see 2nd image):

      • A (inch) 2-1/64"
      • B (inch) 25/32"
      • C (inch) 25/64"
      • D (inch) 25/32"
      • D diameter (inch) 25/64"
      • E (inch) 23/64"
      • F (inch) 3-47/64"
      • G (inch) 2-1/8"
