Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16" [1494W]

Description

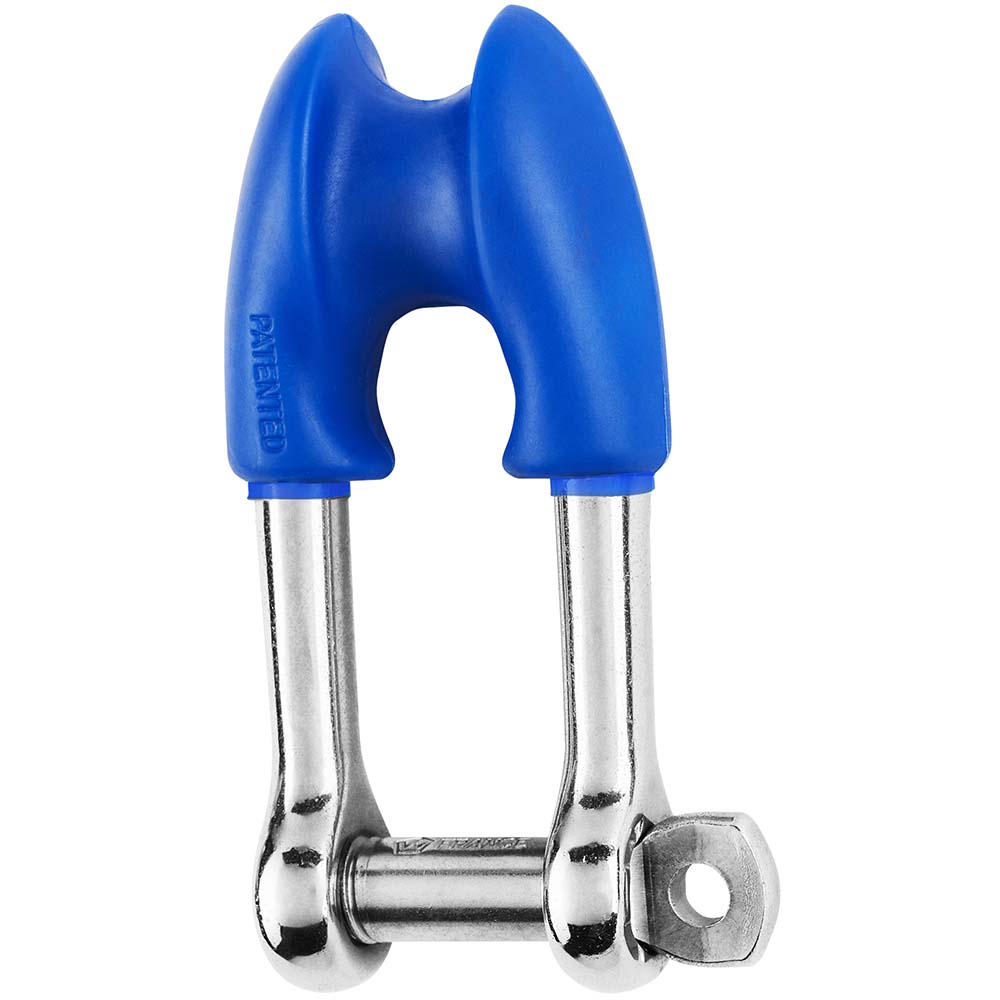

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"

Features:

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 12mm

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • Breaking load (lb) 6610
  • Weight (lb) 0.172

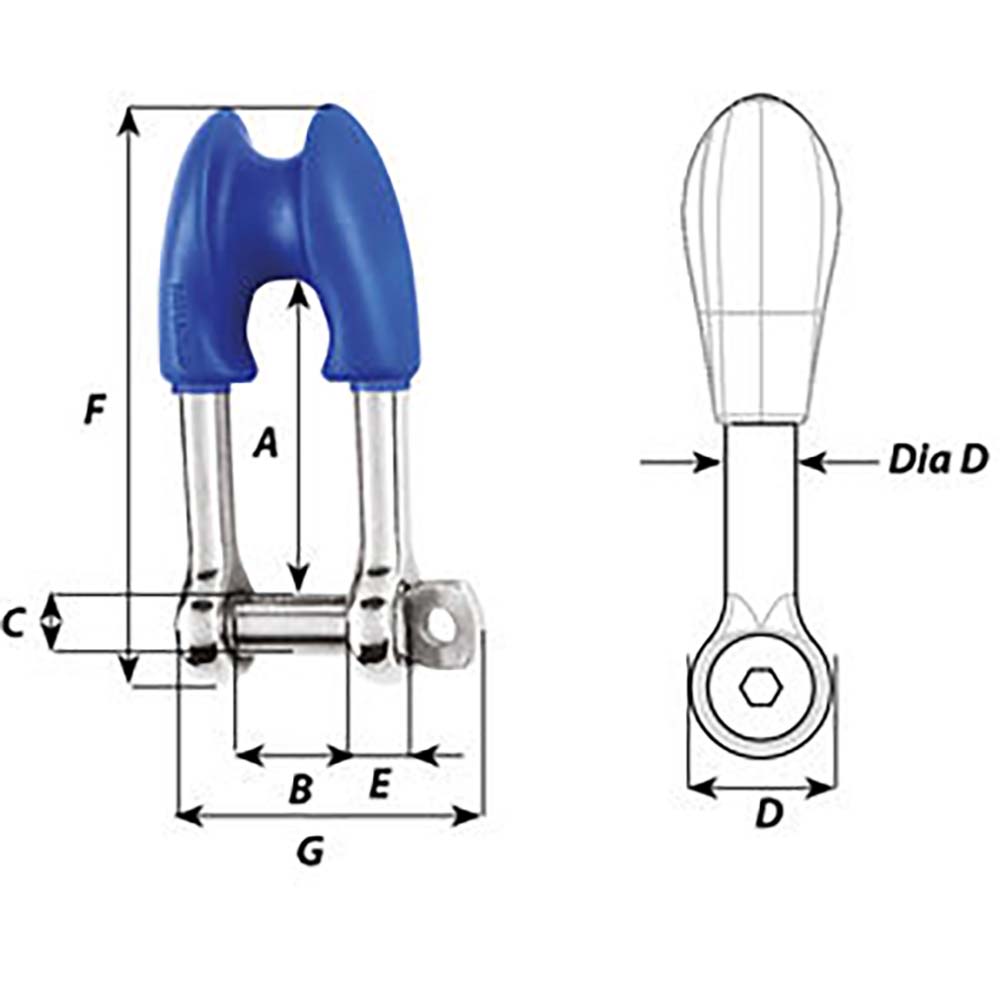

Dimensions (see 2nd image):

  • A (inch) 1-39/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 2-63/64"
  • G (inch) 1-21/32"
Product form

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"Features: Thimble shackle with captive pin forged in grade 316L stainless... Read more

SKU: CWR-93131
Barcode: 358779001491

2 in stock

$105.57$89.73

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"

      Features:

      • Thimble shackle with captive pin forged in grade 316L stainless steel
      • Allows to spliced a rope without adding an additional thimble
      • With the captive pin, no risk to lose the pin
      • Outstanding working and breaking loads

      Applications:

      • Mainsheet halyards
      • Max rope size: 12mm

      Specifications:

      • Materials 316 stainless steel grade
      • Working load (lb) 2200
      • Breaking load (lb) 6610
      • Weight (lb) 0.172

      Dimensions (see 2nd image):

      • A (inch) 1-39/64"
      • B (inch) 5/8"
      • C (inch) 5/16"
      • D (inch) 5/8"
      • D diameter (inch) 5/16"
      • E (inch) 9/32"
      • F (inch) 2-63/64"
      • G (inch) 1-21/32"
