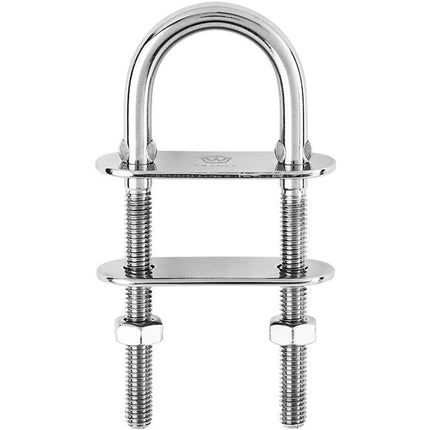

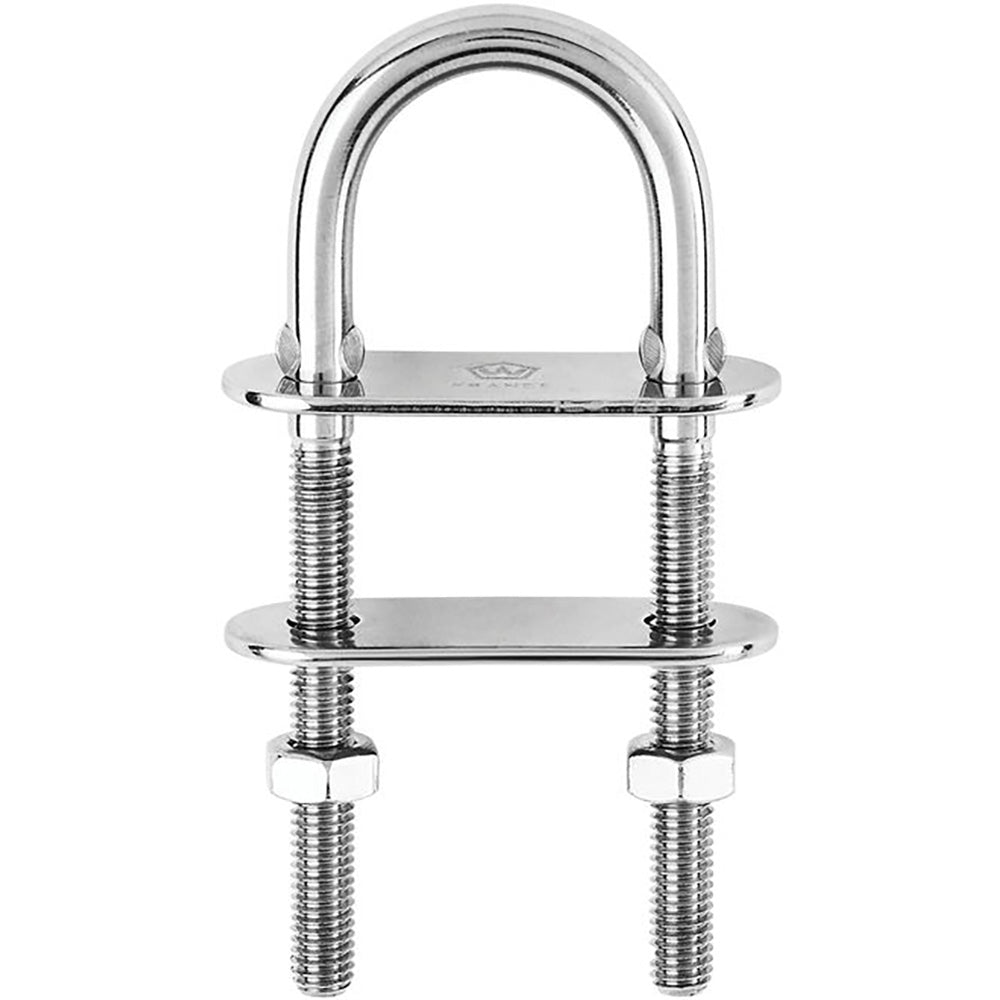

Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64" [6515W]

Description

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 36 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 7930 / (kg) 3600
  • Breaking load: (lb) 15430 / (kg) 7000
  • Weight: (lb) 0.441 / (g) 200

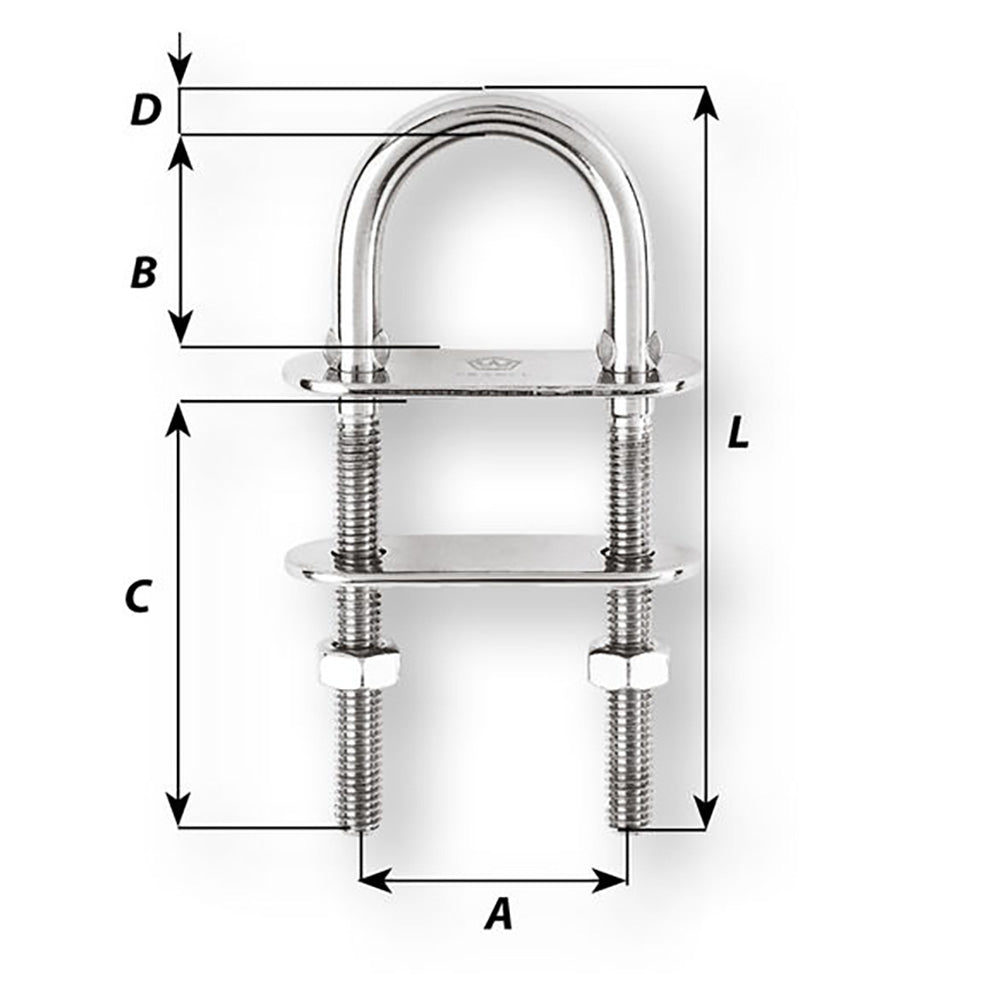

Dimensions:

  • A: (inch) 1 37/64" / (mm) 40
  • B: (inch) 1 17/64" / (mm) 32
  • C: (inch) 1 49/64" / (mm) 45
  • D diameter: (inch) 25/64" / (mm) 10
  • Length: (inch) 3 35/64" / (mm) 90
  • Caption:
  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"Features: Fully drop forged product with high-quality stainless... Read more

SKU: CWR-97688

2 in stock

$58.95$50.11

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

      Features:

      • Fully drop forged product with high-quality stainless steel
      • Outstanding working and breaking loads
      • For any kind of fastening applications (shrouds, lifelines, blocks...)
      • Delivered with bolts and counter-plate
      • Max tightening torque: 36 Nm

      Applications:

      • Various fastening applications: shrouds, lifelines, blocks…

      Specifications:

      • Materials: 316L stainless steel grade
      • Working load: (lb) 7930 / (kg) 3600
      • Breaking load: (lb) 15430 / (kg) 7000
      • Weight: (lb) 0.441 / (g) 200

      Dimensions:

      • A: (inch) 1 37/64" / (mm) 40
      • B: (inch) 1 17/64" / (mm) 32
      • C: (inch) 1 49/64" / (mm) 45
      • D diameter: (inch) 25/64" / (mm) 10
      • Length: (inch) 3 35/64" / (mm) 90
      • Caption:
      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
