Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64" [06516]

Description

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 60 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 14100 / (kg) 6400
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.703 / (g) 319

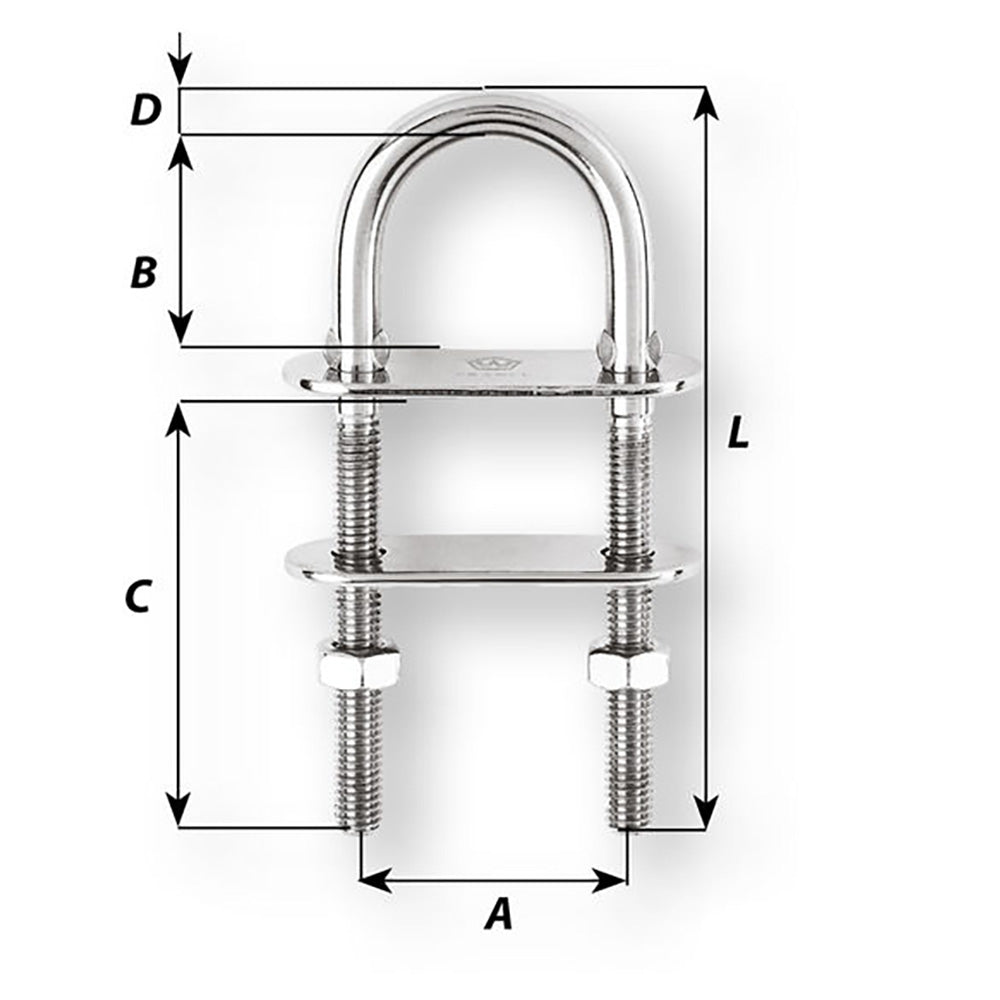

Dimensions:

  • A: (inch) 1 47/64" / (mm) 44
  • B: (inch) 1 11/32" / (mm) 34
  • C: (inch) 1 31/32" / (mm) 50
  • D diameter: (inch) 15/32" / (mm) 12
  • Length: (inch) 4 21/64" / (mm) 110

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64"Features: Fully drop forged product with high-quality stainless... Read more

SKU: CWR-97689
Barcode: 3587790065169

$120.98$69.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64"

      Features:

      • Fully drop forged product with high-quality stainless steel
      • Outstanding working and breaking loads
      • For any kind of fastening applications (shrouds, lifelines, blocks...)
      • Delivered with bolts and counter-plate
      • Max tightening torque: 60 Nm

      Applications:

      • Various fastening applications: shrouds, lifelines, blocks…

      Specifications:

      • Materials: 316L stainless steel grade
      • Working load: (lb) 14100 / (kg) 6400
      • Breaking load: (lb) 22040 / (kg) 10000
      • Weight: (lb) 0.703 / (g) 319

      Dimensions:

      • A: (inch) 1 47/64" / (mm) 44
      • B: (inch) 1 11/32" / (mm) 34
      • C: (inch) 1 31/32" / (mm) 50
      • D diameter: (inch) 15/32" / (mm) 12
      • Length: (inch) 4 21/64" / (mm) 110

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
