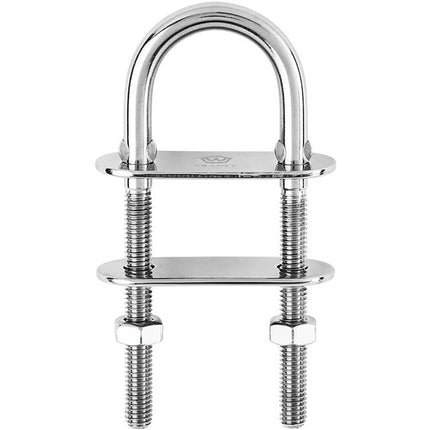

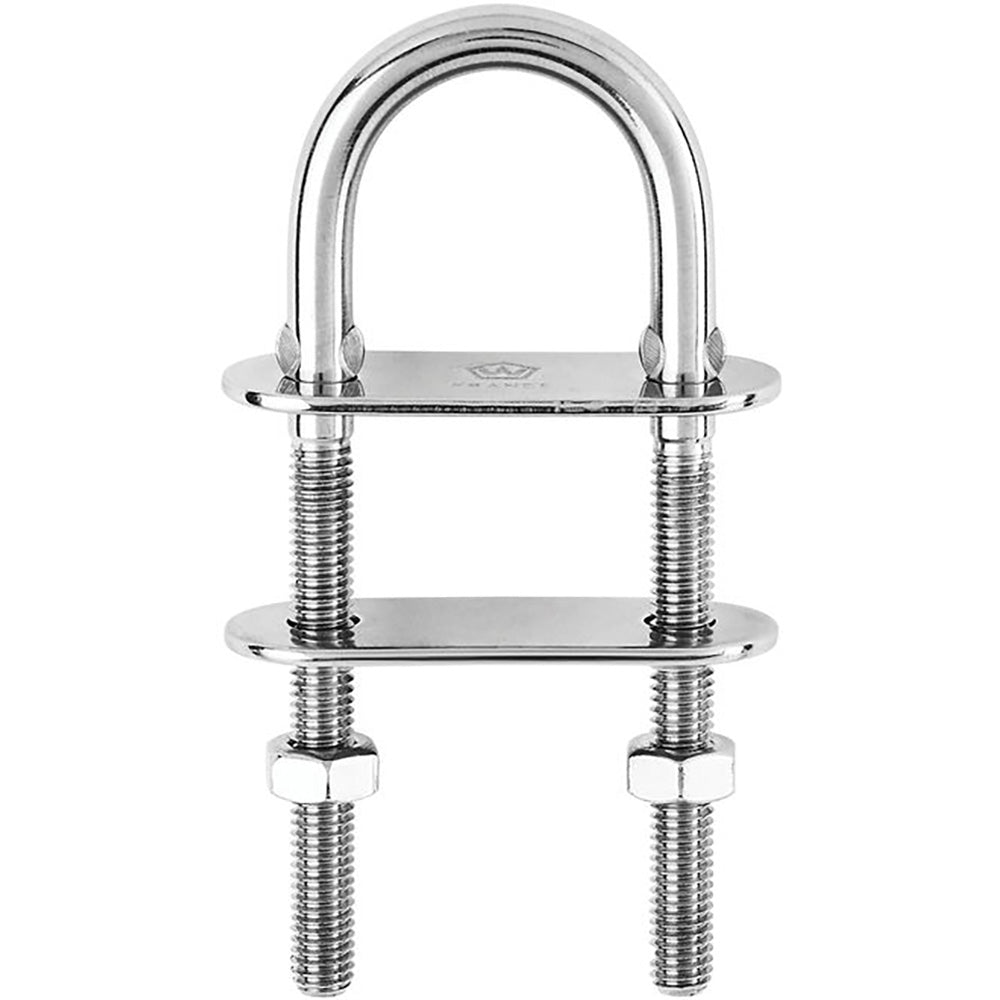

Wichard U-Bolt Pad Eye - 4mm Diameter - 5/32" [06511]

Description

U-Bolt Pad Eye - 4mm Diameter - 5/32"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 2.3 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 1050 / (kg) 480
  • Breaking load: (lb) 2200 / (kg) 1000
  • Weight: (lb) 0.049 / (g) 22

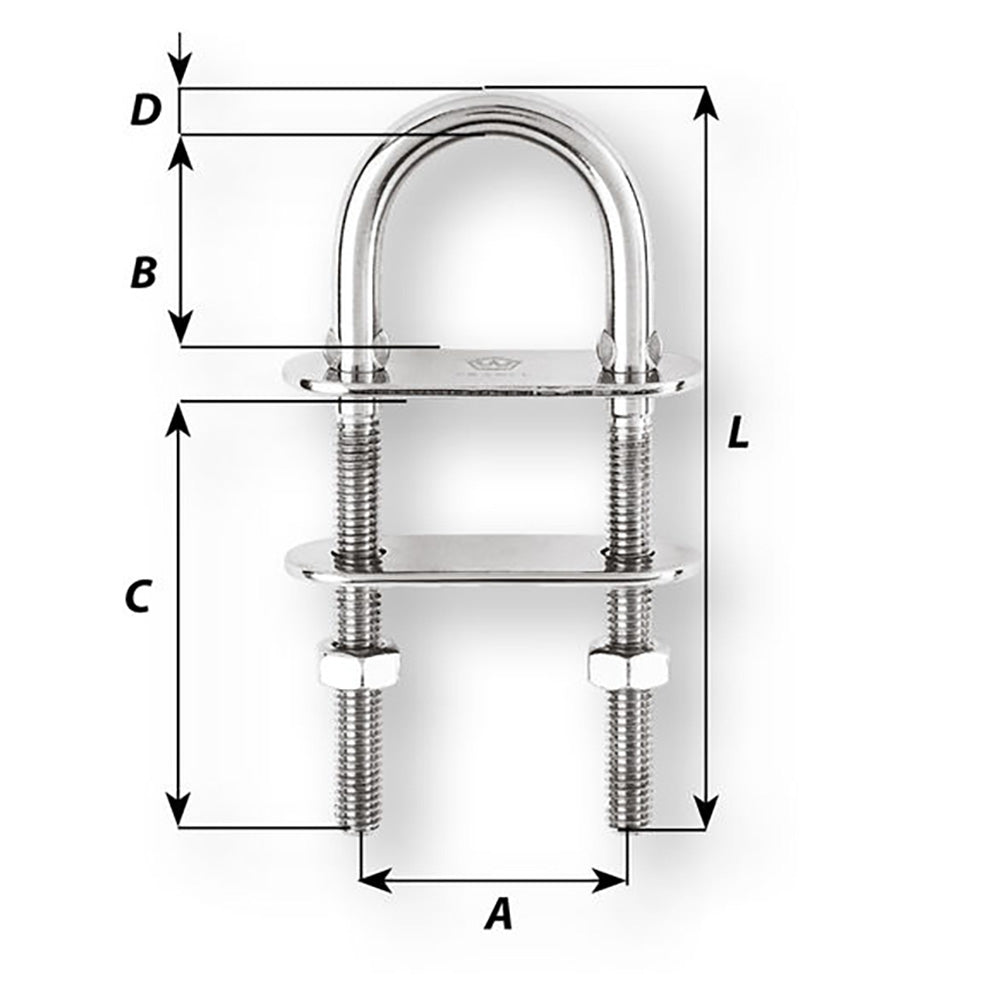

Dimensions:

  • A: (inch) 15/16" / (mm) 24
  • B: (inch) 53/64" / (mm) 21
  • C: (inch) 1 1/16" / (mm) 27
  • D diameter: (inch) 5/32" / (mm) 4
  • Length: (inch) 1 31/32" / (mm) 50

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

U-Bolt Pad Eye - 4mm Diameter - 5/32"Features: Fully drop forged product with high-quality stainless steel Outstanding working and breaking... Read more

SKU: CWR-97684
Barcode: 768536027167

$19.84$16.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout
    • Shipped today? Order within: Oct 04, 2025 15:00:00 -0400

    Description

    U-Bolt Pad Eye - 4mm Diameter - 5/32"

    Features:

    • Fully drop forged product with high-quality stainless steel
    • Outstanding working and breaking loads
    • For any kind of fastening applications (shrouds, lifelines, blocks...)
    • Delivered with bolts and counter-plate
    • Max tightening torque: 2.3 Nm

    Applications:

    • Various fastening applications: shrouds, lifelines, blocks…

    Specifications:

    • Materials: 316L stainless steel grade
    • Working load: (lb) 1050 / (kg) 480
    • Breaking load: (lb) 2200 / (kg) 1000
    • Weight: (lb) 0.049 / (g) 22

    Dimensions:

    • A: (inch) 15/16" / (mm) 24
    • B: (inch) 53/64" / (mm) 21
    • C: (inch) 1 1/16" / (mm) 27
    • D diameter: (inch) 5/32" / (mm) 4
    • Length: (inch) 1 31/32" / (mm) 50

    Caption:

    • Working Load (WL): For nautical applications
    • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

    *Sold as an Individual


    Quick Guide (pdf)
