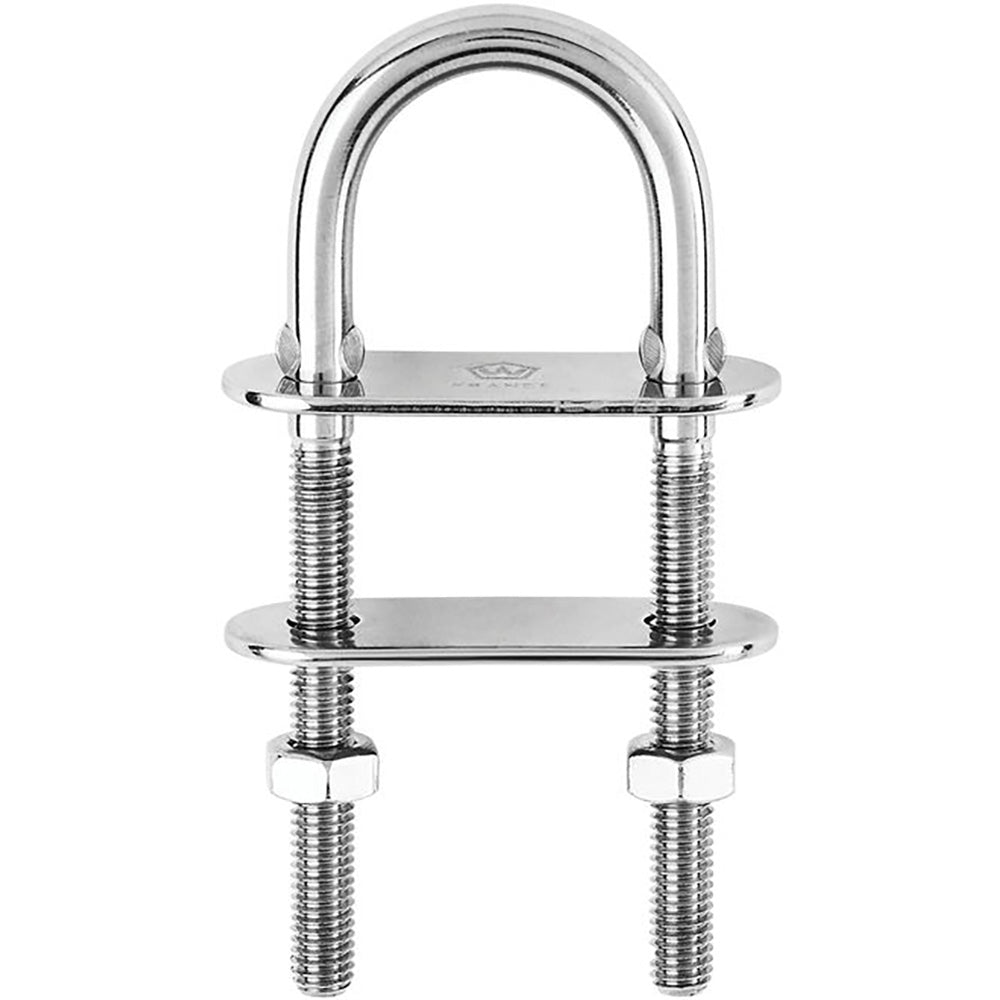

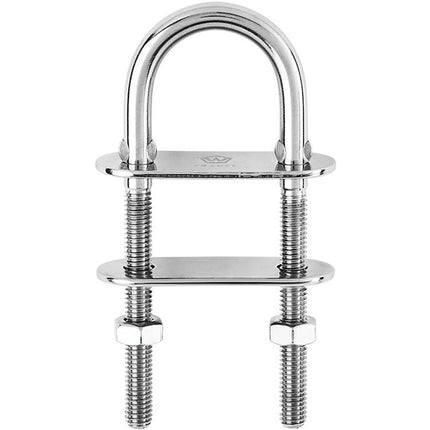

Wichard U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64" [06523]

Description

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"

Features:

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 7.5 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 6610 / (kg) 3000
  • Weight: (lb) 0.148 / (g) 67

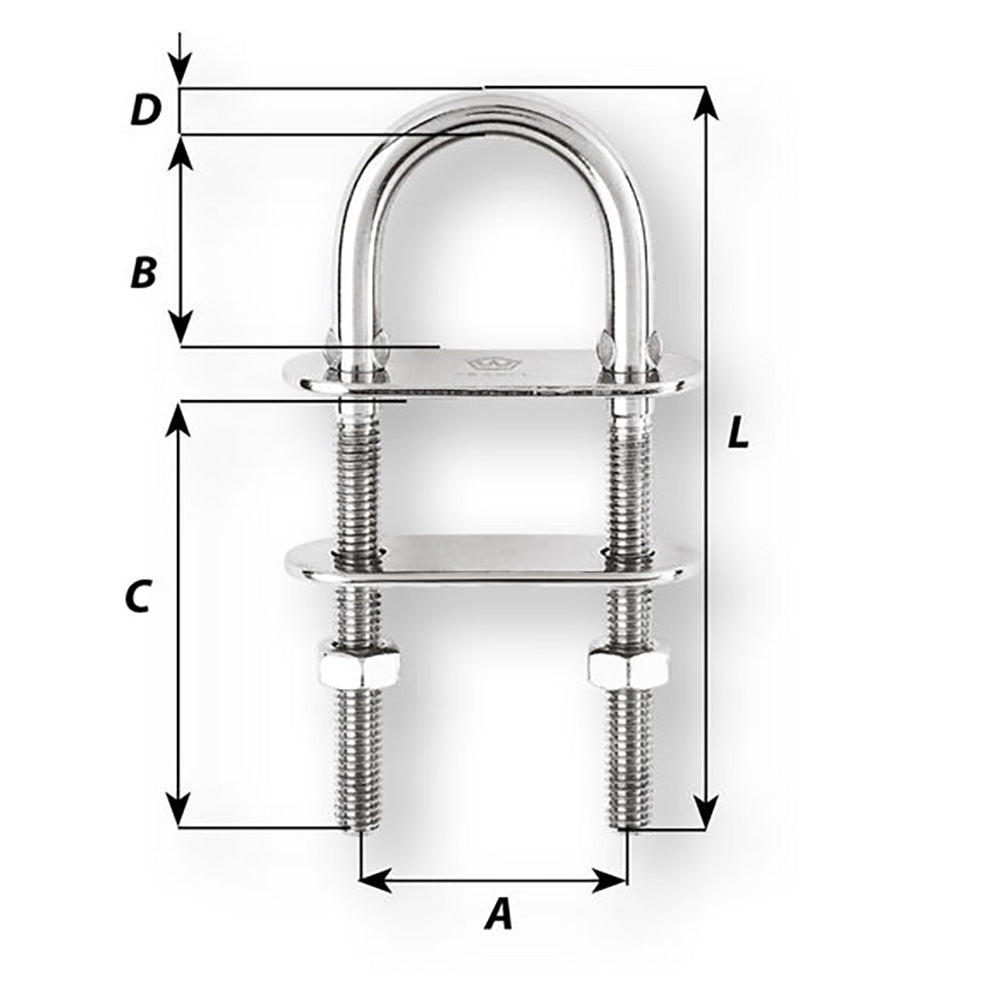

Dimensions:

  • A: (inch) 1 17/64" / (mm) 32
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 2 11/64" / (mm) 55
  • D diameter: (inch) 15/64" / (mm) 6
  • Length: (inch) 3 35/64" / (mm) 90

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"Features: Entirely drop forged product with high-quality stainless... Read more

SKU: CWR-97690
Barcode: 768536027211

$30.65$23.50

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      U-Bolt Pad Eye - 6mm Diameter - 15/64" - 90mm Length - 3-35/64"

      Features:

      • Entirely drop forged product with high-quality stainless steel
      • Outstanding working and breaking loads
      • For any fastening applications (shrouds, lifelines, blocks...)
      • Delivered with bolts and counter-plate
      • Max tightening torque: 7.5 Nm

      Applications:

      • Various fastening applications: shrouds, lifelines, blocks…

      Specifications:

      • Materials: 316L stainless steel grade
      • Working load: (lb) 2820 / (kg) 1280
      • Breaking load: (lb) 6610 / (kg) 3000
      • Weight: (lb) 0.148 / (g) 67

      Dimensions:

      • A: (inch) 1 17/64" / (mm) 32
      • B: (inch) 1 1/16" / (mm) 27
      • C: (inch) 2 11/64" / (mm) 55
      • D diameter: (inch) 15/64" / (mm) 6
      • Length: (inch) 3 35/64" / (mm) 90

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
