Wichard U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16" [6524W]

Description

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

Features:

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 18 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.28 / (g) 127

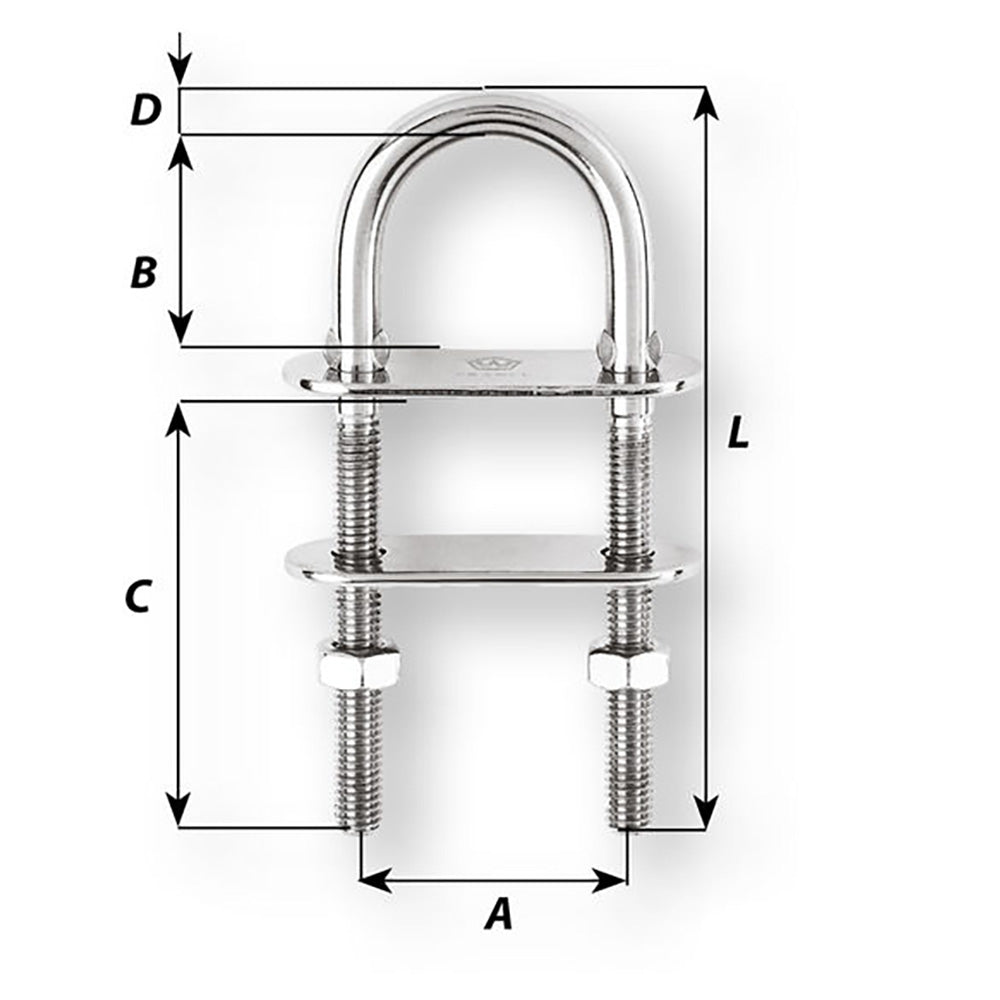

Dimensions:

  • A: (inch) 1 27/64" / (mm) 36
  • B: (inch) 1 3/16" / (mm) 30
  • C: (inch) 2 23/64" / (mm) 60
  • D diameter: (inch) 5/16" / (mm) 8
  • Length: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Product form

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"Features: Entirely drop forged product with high-quality stainless... Read more

SKU: CWR-97691
Barcode: 3587790065244

4 in stock

$45.45$38.63

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

      Features:

      • Entirely drop forged product with high-quality stainless steel
      • Outstanding working and breaking loads
      • For any fastening applications (shrouds, lifelines, blocks...)
      • Delivered with bolts and counter-plate
      • Max tightening torque: 18 Nm

      Applications:

      • Various fastening applications: shrouds, lifelines, blocks…

      Specifications:

      • Materials: 316L stainless steel grade
      • Working load: (lb) 5290 / (kg) 2400
      • Breaking load: (lb) 10580 / (kg) 4800
      • Weight: (lb) 0.28 / (g) 127

      Dimensions:

      • A: (inch) 1 27/64" / (mm) 36
      • B: (inch) 1 3/16" / (mm) 30
      • C: (inch) 2 23/64" / (mm) 60
      • D diameter: (inch) 5/16" / (mm) 8
      • Length: (inch) 3 15/16" / (mm) 100

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

      *Sold as an Individual


      Quick Guide (pdf)
