Wichard Webbing Snap Shackle - 3-1/8" [2374W]

Description

Web Snap Shackle - 3-1/8"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
  • Its flat design allows attaching a webbing
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2110 / (kg) 960
  • Breaking load: (lb) 4400 / (kg) 2000
  • Weight: (lb) 0.187 / (g) 85

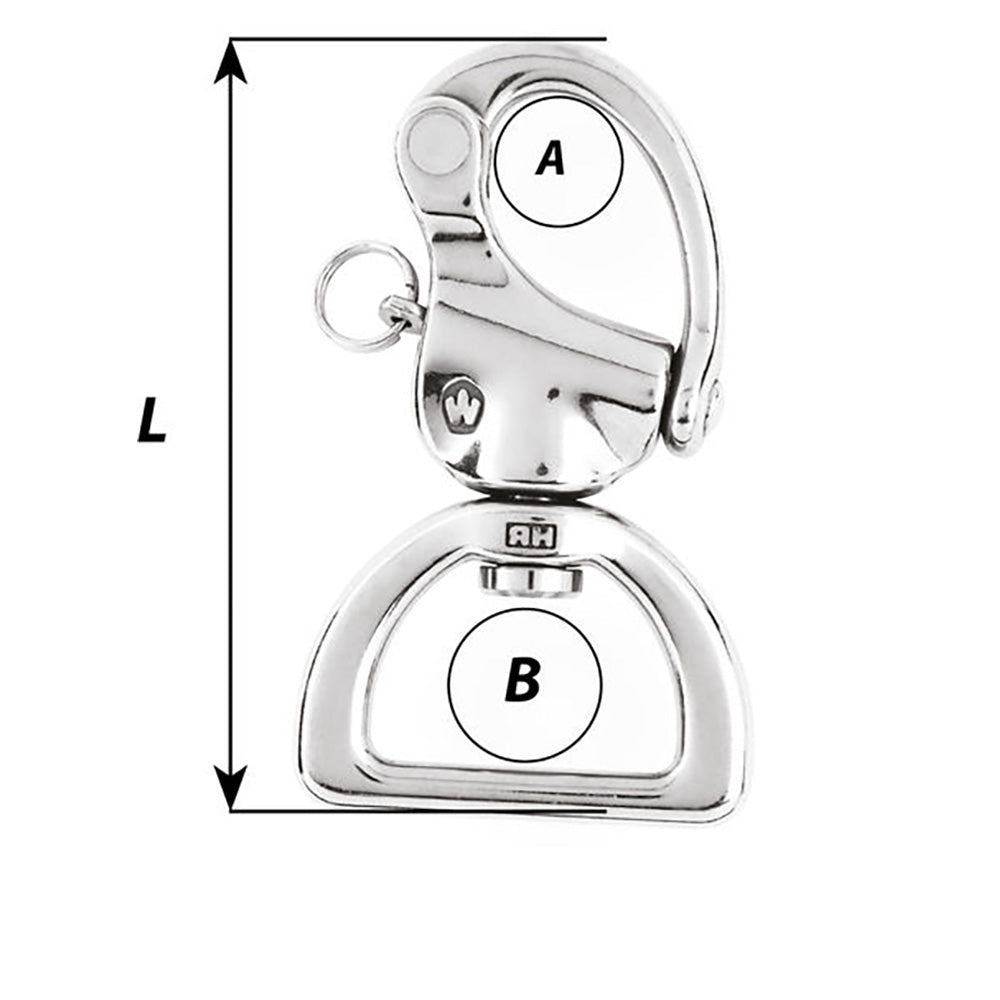

Dimensions:

  • A: (inch) 5/8" / (mm) 16
  • B: (inch) 1 3/16" / (mm) 30
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Product form

Web Snap Shackle - 3-1/8"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel. Its flat design allows... Read more

SKU: CWR-97653
Barcode: 768536023749

2 in stock

$159.35$135.45

    • Price Match Guarantee
    • Free Shipping on orders over $200
    • Secure Checkout

      Description

      Web Snap Shackle - 3-1/8"

      Features:

      • HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
      • Its flat design allows attaching a webbing
      • Free rotation of the snap shackle thanks to the swivel eye
      • The plunger pin is set captive into the hook and cannot become detached
      • Excellent working and breaking loads
      • Easy to open by pulling the plunger pin (possible to attach a lanyard)

      Applications:

      • Snap shackle applications
      • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

      Specifications:

      • Materials: HR 17.4 PH stainless steel grade
      • Working load: (lb) 2110 / (kg) 960
      • Breaking load: (lb) 4400 / (kg) 2000
      • Weight: (lb) 0.187 / (g) 85

      Dimensions:

      • A: (inch) 5/8" / (mm) 16
      • B: (inch) 1 3/16" / (mm) 30
      • Length: (inch) 3 5/32" / (mm) 80

      Caption:

      • Working Load (WL): For nautical applications
      • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
      • High Resistance (HR)

      *Sold as an Individual


      Quick Guide (pdf)
