HR Key Pin Shackle With Bar - 8mm Pin DiameterFeatures:  Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Perfect product for halyards or applications requiring to opening/closing the shackle often Do not use it for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2110 / (kg) 960  Breaking load: (lb) 7710 / (kg) 3500  Weight: (lb) 0.271 / (g) 123  Dimensions: A: (inch) 2 21/64" / (mm) 59  B: (inch) 53/64" / (mm) 21  C: (inch) 5/16" / (mm) 8  D: (inch) 43/64" / (mm) 17  E: (inch) 15/64" / (mm) 6  F: (inch) 3 7/64" / (mm) 79  G: (inch) 1 57/64" / (mm) 48  L: (inch) 25/32" / (mm) 20  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Long D Shackle - 10mm Diameter - 25/64"Features: Forged long shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 5820 / (kg) 2640  WLL: (lb) 2640 / (kg) 1200  Breaking load: (lb) 13220 / (kg) 6000  Weight: (lb) 0.362 / (g) 164  Dimensions: A: (inch) 3 5/64" / (mm) 78  B: (inch) 25/32" / (mm) 20  D diameter: (inch) 25/64" / (mm) 10  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

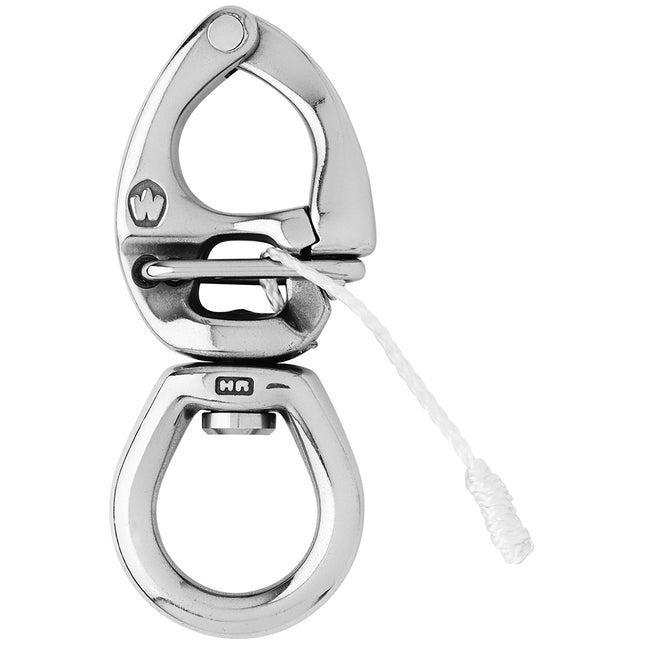

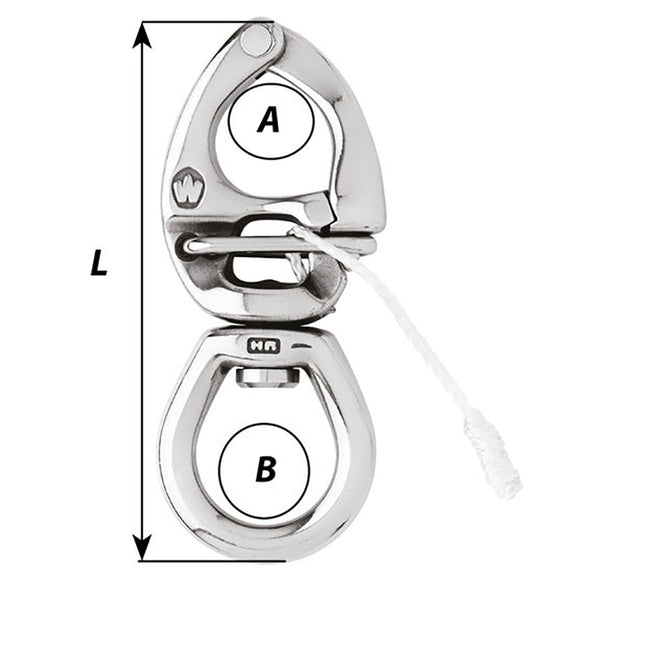

HR Quick Release Snap Shackle w/Large Bail - Length 4-3/4"Features: HR forged (17.4 PH) quick release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 4-3/4" Working load (lb) 5290 Breaking load (lb) 8810 Weight (lb) 0.597 A (inch) 63/64" B (inch) 1 7/32"

Read more less

HR Quick Release Snap Shackle with Swivel Eye - Length 2-3/4"Features: HR forged (17.4 PH) quick release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 2 3/4" Working load (lb) 1940 Breaking load (lb) 3300 Weight (lb) 0.13 A (inch) 35/64" B (inch) 7/16"

Read more less

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 1940 / (kg) 880  Breaking load: (lb) 2860 / (kg) 1300  Weight: (lb) 0.119 / (g) 54  Dimensions: A: (inch) 35/64" / (mm) 14  B: (inch) 3/4" / (mm) 19  Length: (inch) 3 5/32" / (mm) 80  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 4400 / (kg) 2000  Weight: (lb) 0.22 / (g) 100 Dimensions: A; (inch) 5/8" / (mm) 16  B: (inch) 29/32" / (mm) 23  Length: (inch) 3 35/64" / (mm) 90  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 6170 / (kg) 2800  Breaking load: (lb) 13880 / (kg) 6300  Weight: (lb) 0.873 / (g) 396  Dimensions: A: (inch) 1 3/16" / (mm) 30  B: (inch) 1 25/64" / (mm) 35.5  Length: (inch) 5 45/64" / (mm) 145  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Quick Release Snap Shackle With Large Bail -160mm Length - 6-19/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 11460 / (kg) 5200  Breaking load: (lb) 17630 / (kg) 8000  Weight: (lb)1.362 / (g) 618  Dimensions: A: (inch) 1 11/32" / (mm) 34 B: (inch) 1 39/64" / (mm) 41  Length: (inch) 6 19/64" / (mm) 160  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 3520 / (kg) 1600  Breaking load: (lb) 6610 / (kg) 3000  Weight: (lb) 0.353 / (g) 160  Dimensions: A: (inch) 25/32" / (mm) 20  B: (inch) 1 3/64" / (mm) 26.5  Length: (inch) 4 21/64" / (mm) 110  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 7050 / (kg) 3200  Breaking load: (lb) 13880 / (kg) 6300  Weight: (lb) 0.818 / (g) 371  Dimensions: A: (inch) 1 3/16" / (mm) 30  B: (inch) 25/32" / (mm) 20  Length: (inch) 5 1/8" / (mm) 130  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less

HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 5070 / (kg) 2300  Weight: (lb) 0.194 / (g) 88  Dimensions: A: (inch) 5/8" / (mm) 16  B: (inch) 15/32" / (mm) 12  Length: (inch) 3 5/32" / (mm) 80  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)

Read more less
